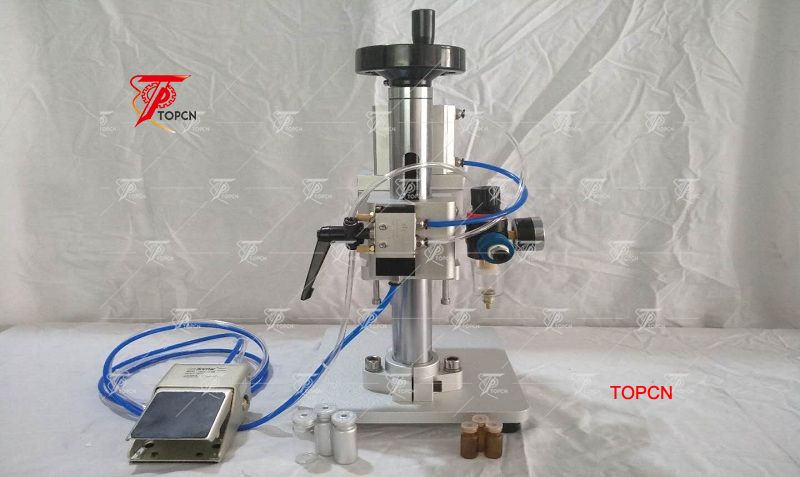

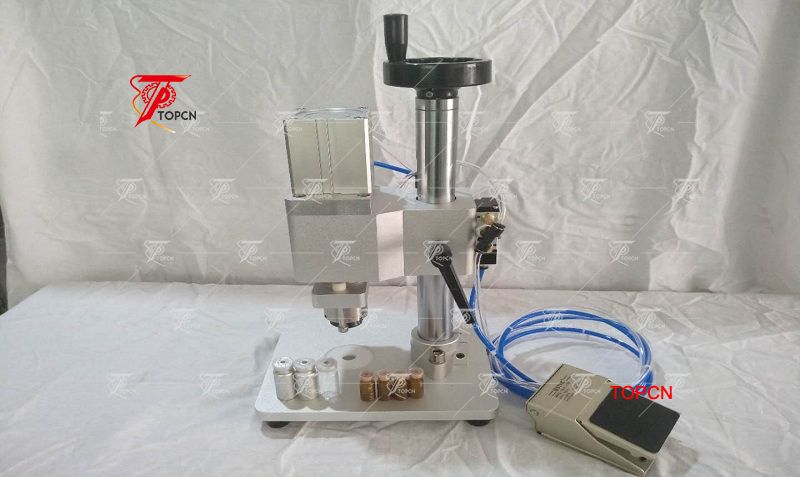

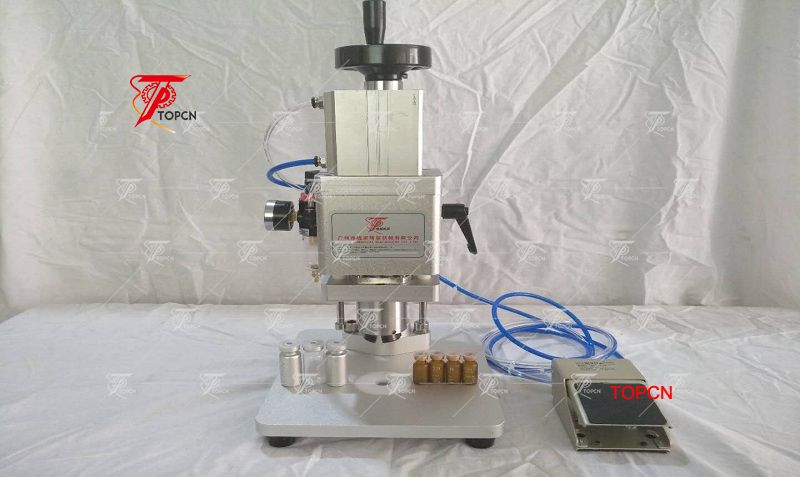

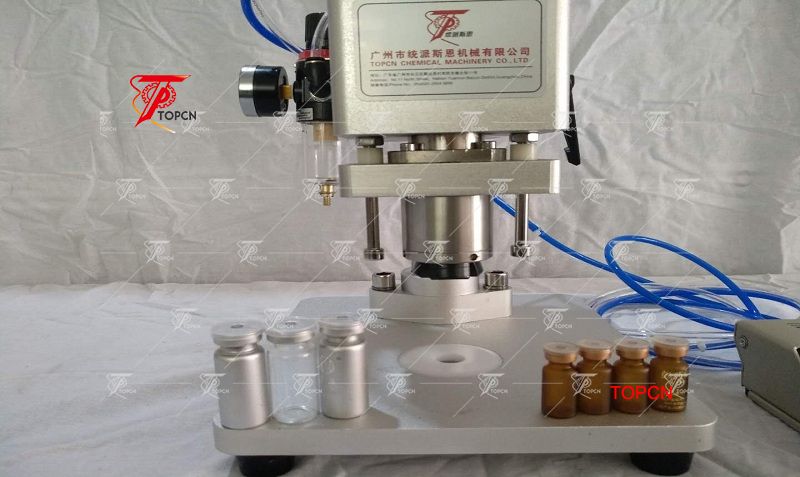

desktop pneumatic semi automatic vial capping crimping machine is widely used in the perfume cap,vial cap closing of spray bottle caps, uses the clamp to close the cap and fasten it on the edge of bottle.
1, Adopt pneumatic drive, without the electrical power, the whole machine is composed of machine body, table surface, clamping device and pneumatic control system.
2, It is a kinds of clamping type cap closing machine, use the scalable method to close the cap and fasten it on the edge of bottle mouth, even cap closing with good sealing performance, lock mouth
fastness and beautiful, accurate cap positioning without abrasion on the surface, convenient operation and maintenance, high speed.
3, Suitable for cap closing of spray type caps, such as perfume bottles, oral liquid bottles, ampere bottles such as aluminum cover lock mouth of the bottle. It use to seal valve cover of all kinds of perfume bottle, widely used in the beverage and perfume packaging lines.
Description on the semi automatic vial capping machine purchased respectivly pls link http://www.topcnmachine.com/semi-automatic-filling-machine/perfume-filling-machine.html
| Model | TPCM-04 |
| Cap diameter | 12mm 20mm (Can be customized according to your requirement) |
| Speed | 20-200 times/min |
| Bottle hight | within 200mm can adjustable |
| Air consumption | 0.5m/min |
| Air pressure range | 0.4-0.6mpa |
| Weight | 18kg |
| Dimension | 29*29*50cm (Can be customized according to your requirement) |
| Material | stainless steel, pure aluminium |
semi automatic vial crimping machine 12mm capping head testing operation video
Vial Crimping Sealing Capping Machine Operation Video
Automatic injection vial filling stoppering and capping machine
1. DELIVERY LEAD TIME:
5-7 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT
2. TERMS OF PAYMENT
BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT
3. PRICE VALID UNTIL
30 DAYS.
4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT
5. PORT OF SHIPMENT
GUANGZHOU or SHENZHEN PORT
Q: What should I do to choose the best machine for us?
A: 1) Tell me the cap you want to close, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the capping capacity you need for the machine.
Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke, how to solve the problem?
A: Yes,we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke, how to solve the problem?
A: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
