Oil soap wrapper bar soap packaging machine manufacture

Application
Description
Products Parameters
Video
Package&Shipping
FAQ

Oil soap wrapper bar soap packaging machine manufacture stretch film packing of round, chrysanthemum, heart, shell, petal and other shaped soap. Soap of different sizes can be packed without changing the mold. One person can operate two devices at a time. Reduce manpower to improve production efficiency, easy to use, simple operation, is the soap soap manufacturer's preferred equipment!

►This soap wrapping machine adopt cylinder drive system, Mitsubishi PLC,touch screen operation,smooth and compact operaton, good packaging effect.

► Packing film auto stretch make shape. Auto recycle the left film.

►Auto close the end and shrink it. automatic soap wrapping machine

► Can pack various shape soap, no need change any mould.(except the specific shape )

►With simple convey system work reliable, more convenient to maintain.

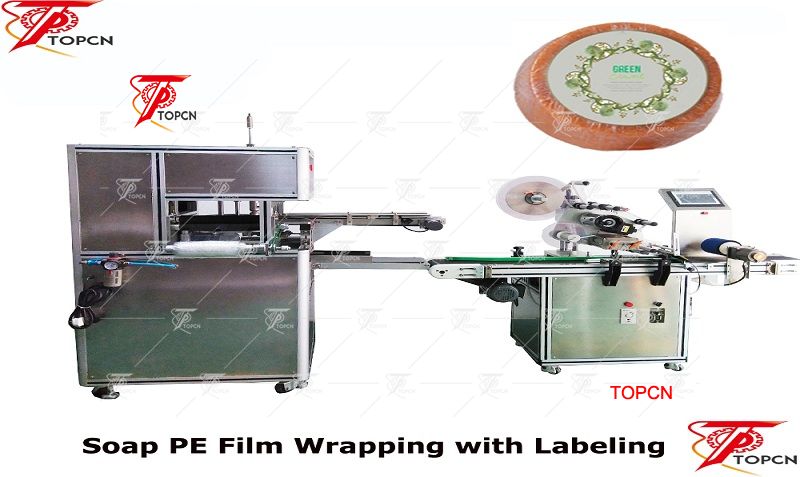

►Soap labeling machine is optional as your requiment

High workpiece ratio high productivity two connection soap wrapping machine for various shape soap

Model No	TPSW-03P
Shape & dimension scope of the soap	One set mold can meet different shapes & dimensions
Dimension scope of the soap	Min. dia. : 35mm
	Max.dia. : 80mm
	Min.Thickness : 15mm
	Max.Thickness : 40mm
	Remarks : The soap dimension not within the standard
	specifications need actual samples for testing
Characteristics	1. Automatic self-checking function: It will automatically self-checking the problems and display on the screen while operating.
	2. Working mode : Continuous
	3. Operating mode : Inching or Single linkage or Automatic
	4. Output count:6 digit
	5. Touch panel
Weight of scope of the soap	10g-120g
Packing speed	10-20pcs per minute
Packing film	PE Stretch film
Film specification	Width 24cm Thickness 0.018-0.025mnn
Film stretch aspect ratio	1:06
Inner diameter of the tube	Φ75mm
Outer diameter of the film roll	Less than Φ260mm
Air pressure	0.5-0.7Mpa
Air consumption	600cc./min
Power	220v 50/60Hz(we offer customer- built service)
Max. Power	120w
Noise	55dB
Machine overall dimension	L1280W960H1580mm
Machine net weight	120kg
Machine overall packing dimension	L1320W1020H1620mm

CUTTING MACHINE FOR SOAP BAR

DESKTOP MANUAL HOME SOAP LOGO MOLD PRINTING MAKING MACHINE

AUTOMATIC SOAP WRAPPING & LABELING MACHINE

Oil soap wrapper bar soap packaging machine manufacture

Oil Soap Wrapping Machine

1. DELIVERY LEAD TIME:

7-10 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT

2. TERMS OF PAYMENT

BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT

3. PRICE VALID UNTIL

30 DAYS.

4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT

5. PORT OF SHIPMENT

GUANGZHOU or SHENZHEN PORT

Q: What should I do to choose the best machine for us?
A: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the package wrapping head.

Q: What thickness of the Film?
A: 0.022-0.03mm film package effect is good.

Q: What material of the Film?
A: Pearl Film, Phosphorus film paper, BOPP film.

Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, we will send you the manual and operation video after you ask for us.

Q: If there's some spare parts that broke,how to solve the problem?
A: Yes, we will send you the manual and operation video after you ask for us.

Q: If there's some spare parts that broke,how to solve the problem?
A: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
