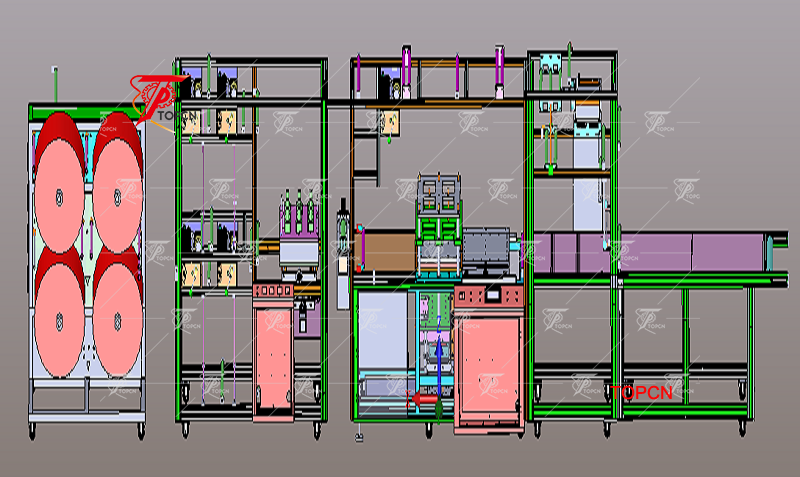

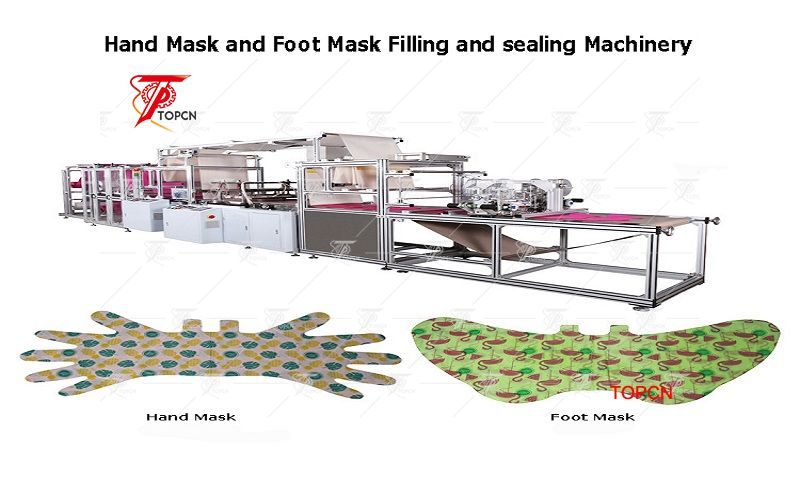

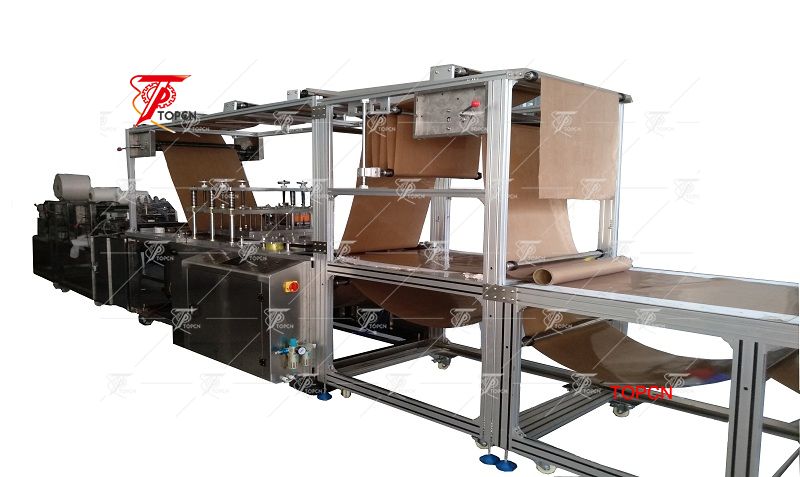

automaitc cosmetic hand foot mask making machine factory

Model

TPZM-4

Main power

Hydraulic device

Servo motor

High torque TECO（ Taiwan ） servo motor.

System

WEINVIEW（ Taiwan ）touch scree HMI，SIEMENS PLC

Basic Components

Basic electrical appliances:  Schneider intermediate relay, Delixi Electric.

Air control components:  AirTAC（ Taiwan ）& XingChen（China） pneumatic components

The whole machine made of aluminum profile and 304 stainless steel frame as structure + large iron plate combination

The machine with emergency stop switch, with automatic counting

, and it could automatically set the beginning heating time.

The machine with four sets of materials feeding, independent control

Accessories

A number of wearing parts, machine operation manuals, a set of hex wrenches, a set of hex socket wrench, a lower bolster, a toolbox.

Rolling frame

1, With tension controller, manual or automatic correction method, main air shaft

Film tensioned frame

2, Four sets of film tensioned structure, independent control.

Cutting device

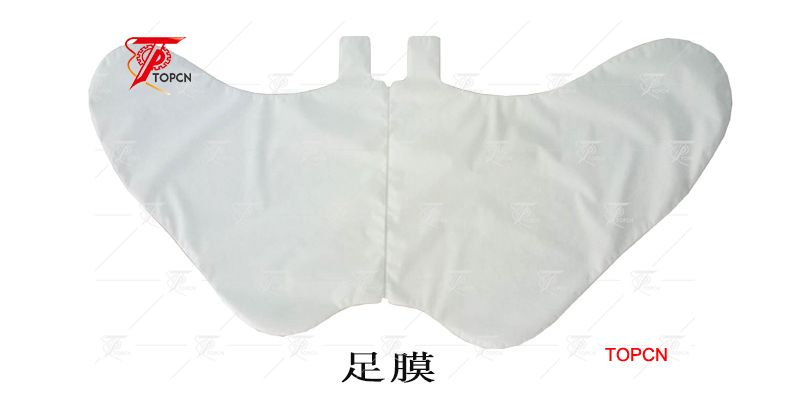

3, Empty hand film - Middle cutting line (high, low-efficiency hand and foot film.)

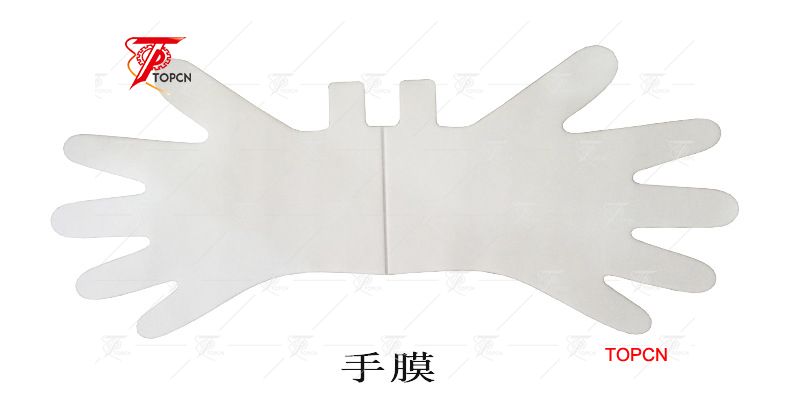

4, General Hand Mask - Middle dotted cutting line (For Whitening, Moisturizing Products)

Filling method

Pneumatic filling method, single cylinder double filling nozzle.

Servo motor filling method, (Optional which price is higher)

Heating&sealing station

Processing the mold according to the supplied size (a set of foot film or a set of hand film mold)

Conveying station

The upper and lower conveyor belts are all rotary cycle type, and the correcting device is installed to prevent deviation.

Pressed mask device

High-temperature heating type cutting and forming, automatic disengagement.

Automatic waste collection device

The product is automatically stripped after molding, and the waste device automatically takes up the roll.

Remark

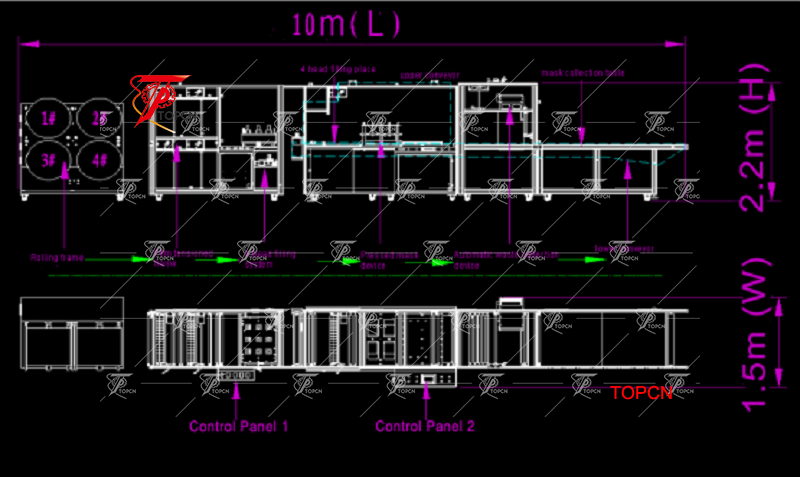

The mechanical structure of the whole machine is heavy-duty design

, and the whole machine is composed of five separate pieces. Two pairs hand or foot mask can be made at the same time, and all programs will be programmed.
