Automatic eyedrops filling capping machine line manufacturer

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping
  • FAQ

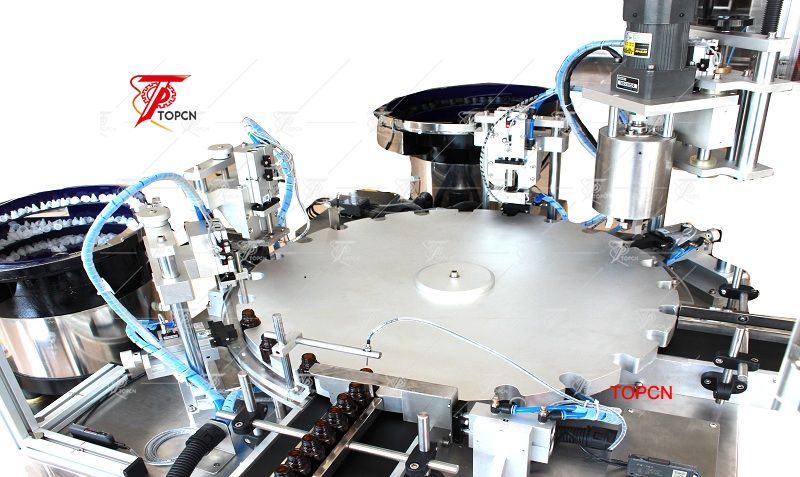

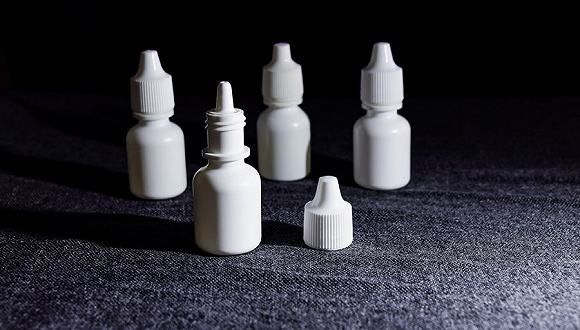

Automatic eyedrops filling capping machine line manufacturer is The machine is used for filling, stoppering and capping for 5-30ml plastic or glass eye drop bottles;The cosine acceleration cam drive makes screw-capping nozzle up and down.this eyedrop filling machine consists of bottle feeding, tracing filling device, stoppering system, bottle outlet track and electric control system. It depends on synchronized filling device to drive the filling needle to filling the liquid. the turntable and screw conveyro feed the bottle.the filling needle is used as tracing filling. The fillng pump fills the liquid according to preset dosage of the electric control system. Finally, the bottles to to stppering roller to get half stoppered or full-stoppered and then be pushed out one by one

 Automatic eyedrops filling capping machine line manufacturer

Essential oil E liquid perfume bottles feeding turntable filling plugging capping line 精油灌装旋盖试机

Essential oil E liquid perfume bottles feeding turntable filling plugging capping line 精油灌装旋盖试机

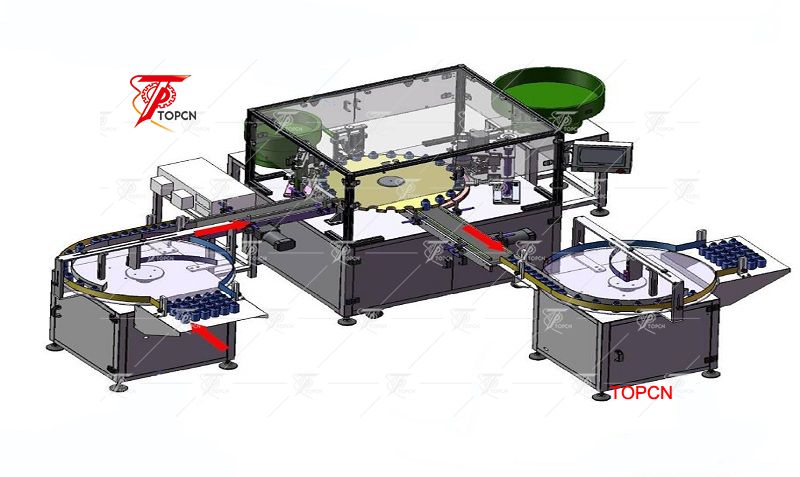

 Workflow: bottle unscrambling-- bottle washing (optional)-- filling-- adding dropper/(adding plug -- adding cap)-- screw capping--self adhesive labeling/shrink sleeve labeling (optional) --ribbon printing/inkjet printing (optional)-- cartoning (optional).


This machine uses a  mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.


Peristaltic pump or piston pump filling, accurate measurement, easy to control.


Filling system has function of suck back, liquid no drip.


Color touch screen display, PLC control system, no bottle no filling (only peristaltic pump)/ no adding plug/ no capping.


The whole line is compact, high speed, high degree of automation, save the manpower cost.


Main electrical elements well-known brands.


Machine shell is made of 304 stainless steel, easy to clean, machine meets GMP requirements


Operator interaction Even though filling machines are trending toward more automation, equipment must be easy for operators to use. More attention is being paid to designing intuitive human machine interface (HMI) with panels that are easier to use and read.

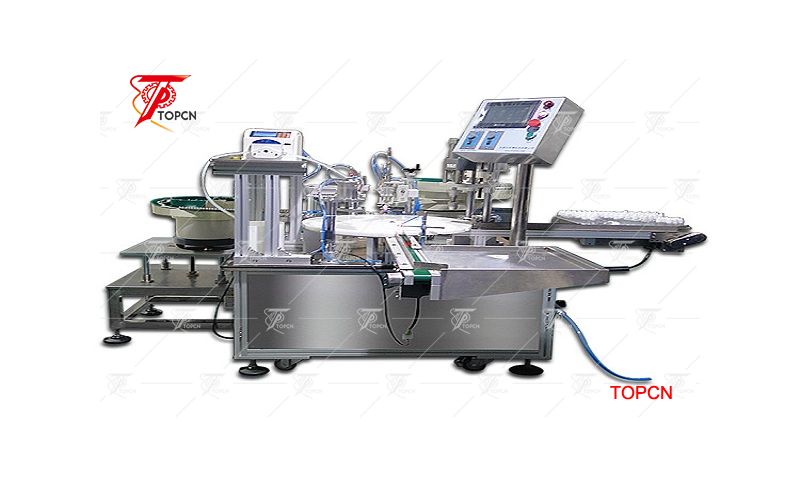

Automatic eyedrops filling capping machine line manufacturer








Automatic eyedrops filling capping machine line is used for the automatic bottle unscrambling, plugs & caps inserting & rotating by manipulator of eye drops & all kinds of bottle + stopper + cap units. If it’s needed, bottle unscrambling or feeding can be equipped. No filling when no bottle; No plugging when no bottle; No capping when no stopper. The manipulator is used for the plugging & capping structure, and the pass rate gets to more than 99.9%. Its property is stable and reliable. The packing material can be customized, the isolating & protective system can be equipped, and the aseptic eye drop can be produced in this line. As to user’s demand, the configuration can be customized, so the requirement with different specification or different capacities can be satisfied.

Model No

TRFM Series

Filling volume

10-30ml

Filling nozzles

1 or 2 heads

Power supply

220V/50Hz     AC110V

Power consumption

1.75Kw

Air pressure

4-7kg/cm2

Capacity

Around 20-30pcs/min

Overall dimensions

3500*3000*1700mm

Weight

550KG

Automatic eyedrops filling capping machine line

Eye Drops filling adding plug and outer cap machine Eye drops bottle unscramble

Automatic small perfume bottle filling machine pocket perfume filling machine


Automatic eyedrops filling capping machine line manufacturer

1. DELIVERY LEAD TIME:

35-50 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT


2. TERMS OF PAYMENT

BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT


3. PRICE VALID UNTIL

30 DAYS.


4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT


5. PORT OF SHIPMENT

GUANGZHOU or SHENZHEN PORT

Essential oil E liquid perfume bottles feeding turntable filling plugging capping line 精油灌装旋盖试机




Q: What should I do to choose the best machine for us?
A: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.

Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, we will send you the manual and operation video after you ask for us. &

Q: If there's some spare parts that broke,how to solve the problem?
A: Yes, we will send you the manual and operation video after you ask for us.

Q: If there's some spare parts that broke,how to solve the problem?
A: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
