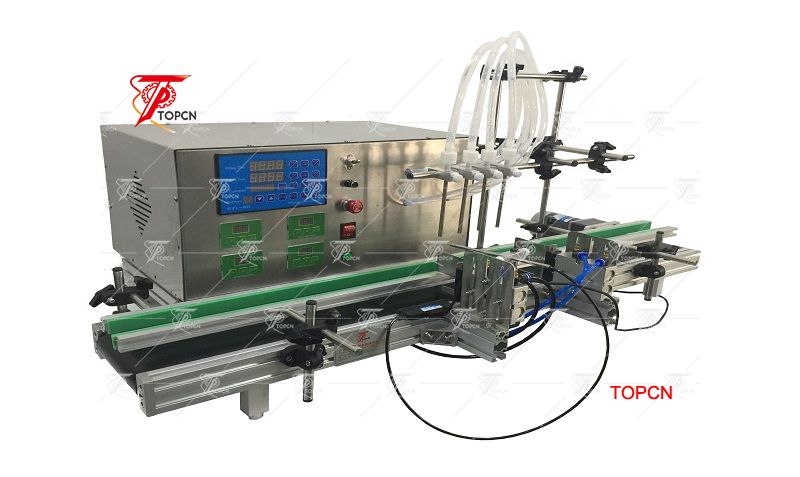

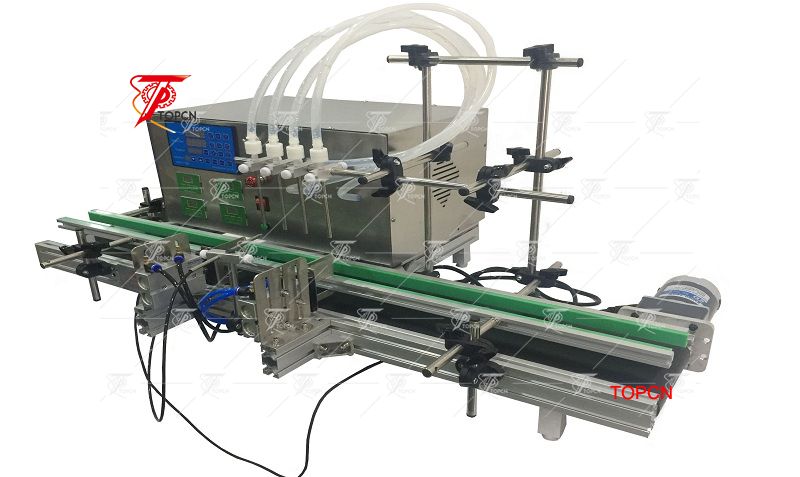

Four nozzzles automatic table top liquid filling machine 30ml small bottle

Application
Description
Products Parameters
Video
Package&Shipping
FAQ

liquid filling machine 30ml,table top liquid filling machine,liquid filling machine small is the new numerical control quantitative liquid filling machine developed by our company. It is especially suitable for various liquid filling.

Magnetic Pump acetone filling machine, Disinfection water wine filler automatic ink filling machine with 2 nozzles 2Lmin

1. Using world brand variable voltage and variable frequency,include imported high accuracy many ring potentiometer and lock panel to adjust filling volume more stable and accurate.filling error 1%

2. Japan imported magnetic gear made of stainless steel pump, reliable quality and long life.

3. stainless steel machine body,endurable

4. Take small place and easy to operate.

5. Easy to clean

6. Own manual and auto function,also can equip online using.

7. Standard type:single head electric filling machine,double pump gear filling machine and four pump type.

8. Only can fill liquid product without granual.

9. The filling volume from 5ml to 5000ml adjustable. and the max filling speed is about 5000ml/min.Easy to operate and control.

Notice item:

a. Check valves must be vertical downward, otherwise affect accuracy

b.filling head must be vertical downward,otherwise affect leakage material.

c. Line corner should not be too small, or affect flow and accuracy.

d. Raw material barrel liquid height difference should not be too big, otherwise affect accuracy.

e. Volatile liquid please use in the circulation of air environment.

f. Unfavorable use together with high frequency wave machine

g. Unfavorable use together with big load equipment.

h. Filling special liquid must inform the factory to meet the different feeding and discharge tube.

Voltage	AC 220v/110v
Power	250W
Maximum flow	5000ml each nozzle per minute for water
Filling nozzles	4(we can customize the nozzles as your requriments)
Air pressure	0.3-0.4Mpa
Filling accuracy	≤ ± 1%( for water)
capacity	1500-3000 bottles/hour (based on bottles and liquids
Diameter of filling nozzle	standard 8mm and 6mm
Body material	stainless steel
Delay range	0.01s ~ 999.9s
Count range	1 ~ 99999 times
Max Suck Distance	2meter
Belt length	1.0meter
Machine weight	50Kg

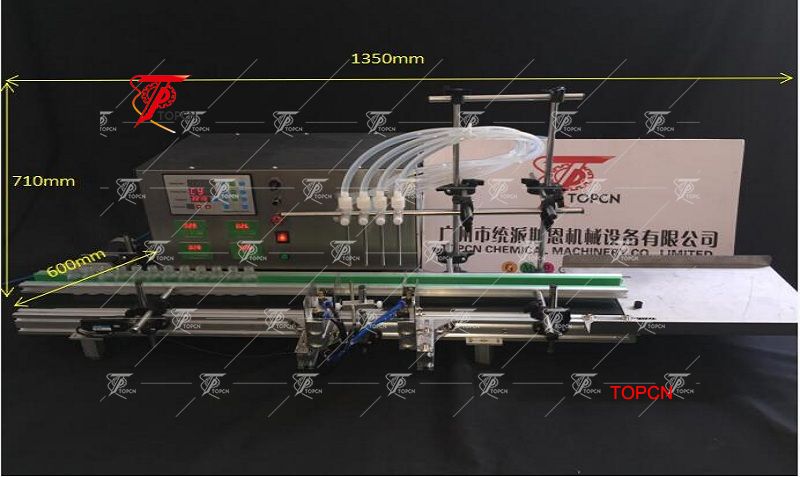

Machine size	1350710600mm

Different pump based on your liquid and bottles sizes. Please contact us for more details firstly before order

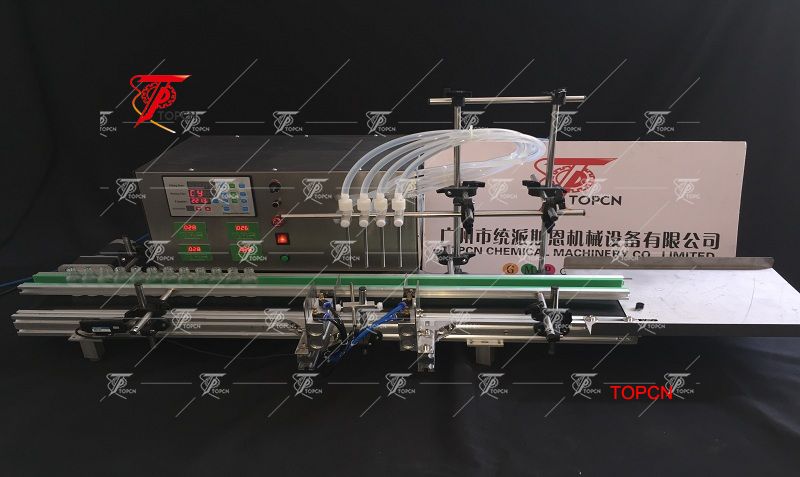

Four nozzzles automatic table top liquid filling machine 30ml small bottle

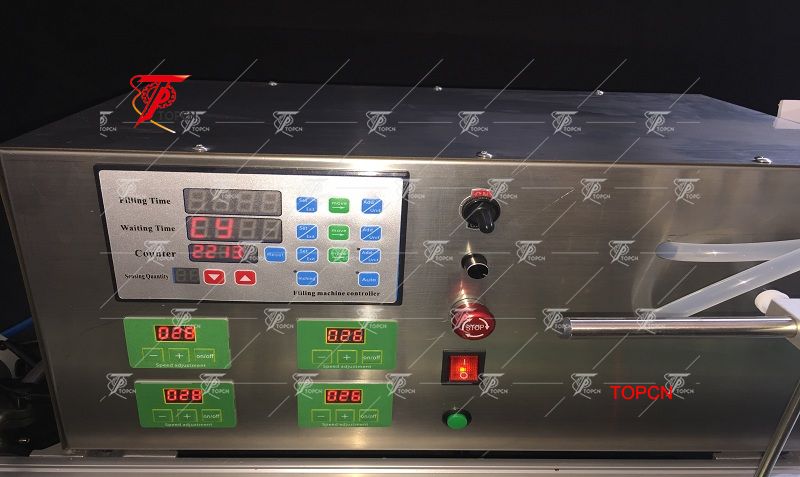

liquid filling machine 30ml,Digital controlled panel, making it easier when filling

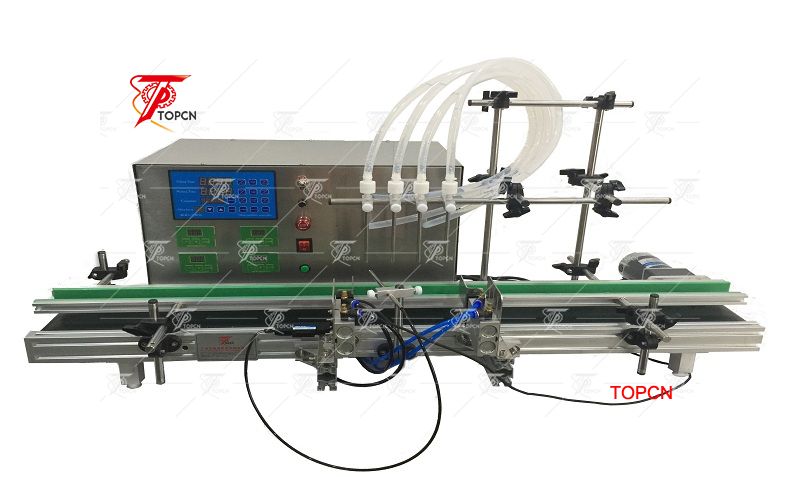

Four nozzzles automatic table top liquid filling machine 30ml small bottle

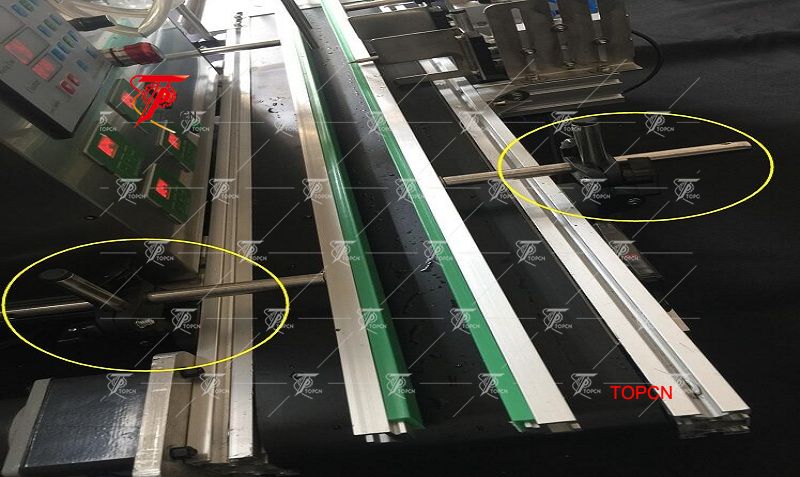

table top liquid filling machine desktop conveyor, the width can height adjustable as different bottle size

Four nozzzles automatic table top liquid filling machine 30ml small bottle

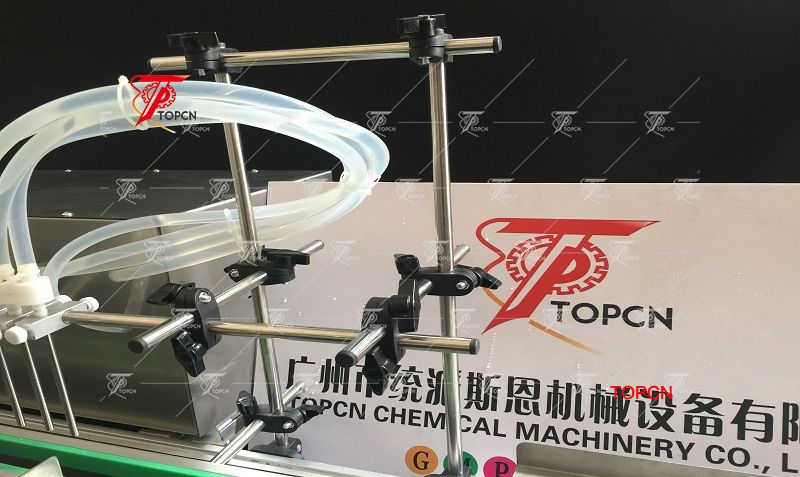

liquid filling machine small filling nozzles height can be adjustable, there are grooves to position with the screws

Four nozzzles automatic table top liquid filling machine 30ml small bottle

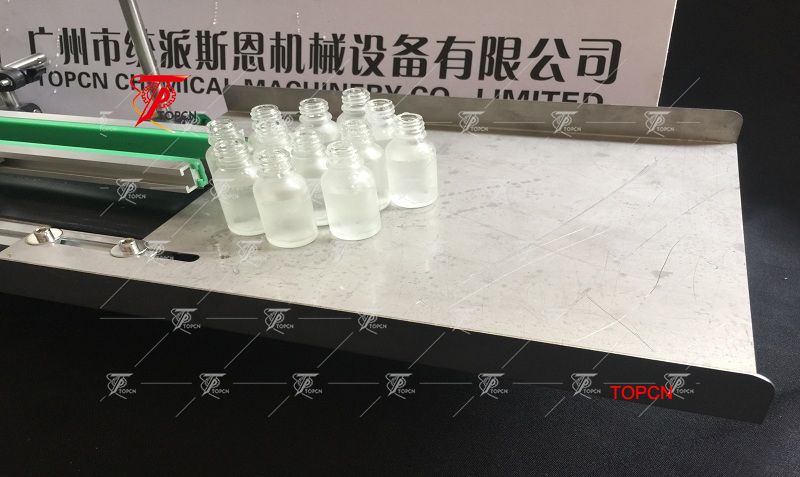

liquid filling machine 30ml,table top liquid filling machine,liquid filling machine small, has removable collecting bottle tray, save space and convenient express

Four nozzzles automatic table top liquid filling machine 30ml small bottle

1. DELIVERY LEAD TIME:

5-7 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT

2. TERMS OF PAYMENT

BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT

3. PRICE VALID UNTIL

30 DAYS.

4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT

5. PORT OF SHIPMENT

GUANGZHOU or SHENZHEN PORT

Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!

Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.

Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.

Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,.

Q5: What should I do to choose the best machine for us?
A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.

Q6: Do you have manual or operation video for us to know more about the machine?
A6: Yes, we will send you the manual and operation video after you ask for us.

Q7: If there's some spare parts that broke,how to solve the problem?
A7: Yes, we will send you the manual and operation video after you ask for us.

Q8: If there's some spare parts that broke,how to solve the problem?
A8: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides,we'll send you the spare parts for free, but the shipping cost should be paid by your side.

Q9: Do you have manual or operation video for us to know more about the machine?
A9: Yes, we will send you the manual and operation video after you ask for us.

Q10: If there's some spare parts that broke,how to solve the problem?
A10: Yes, we will send you the manual and operation video after you ask for us.

Q11: If there's some spare parts that broke,how to solve the problem?
A11: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
