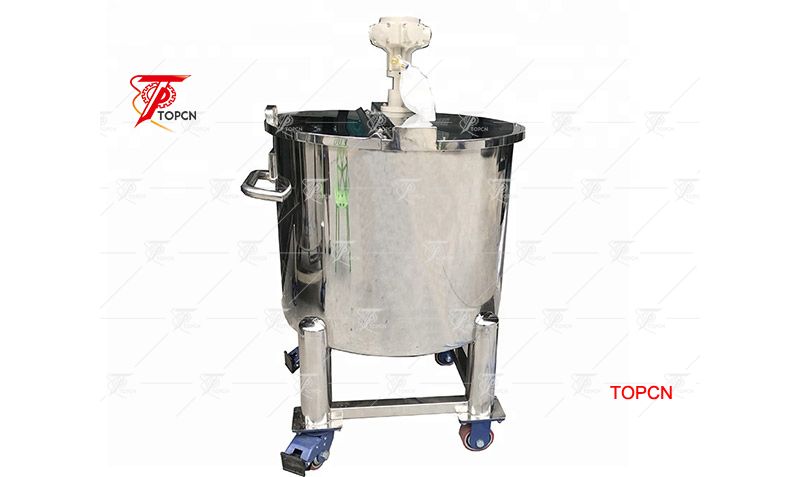

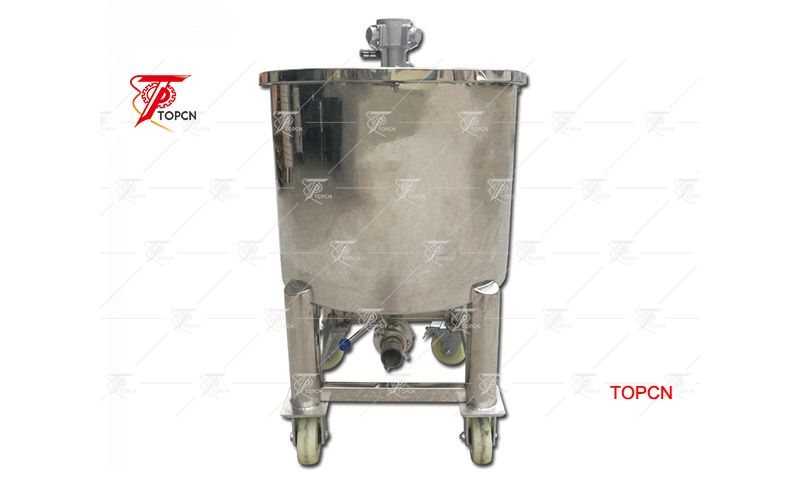

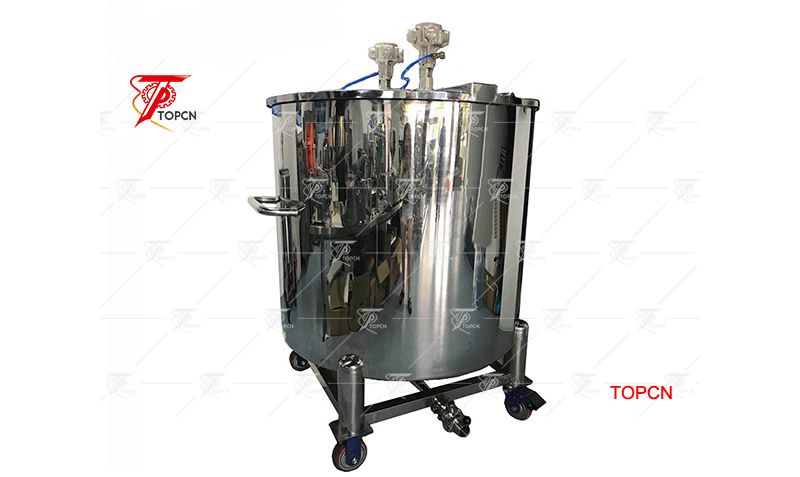

Open Top 200L Perfume Mixer Machines Pneumatic Mixer
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ
The pneumatic perfume mixer is specially used for mixing of liquid such as cosmetics and perfume etc.
♠All control of this mixer machine is pneumatic,no electronic ,so it can work with products that easy explosive or chemicals that can not contact with any electric part.
♠As it is single layer ,so it can not heating and cooling ,however it can be made as double jeckets that can be heated
♠Made of imported SUS304 or SUS316L stainless steel. The mixing tank body and pipe are subjected to mirror polishing.
| Horsepower | 0.5HP |
| Torsion | 2.5Nm |
| Inner Diameter of paddle | 10.5cm |
| Speed | 6800r/min |
| Length | 80cm |
| Motor brand | Taiwan MBP |
| Material of paddle and axle | SUS304 |
1. DELIVERY LEAD TIME:
30-50WORKING DAYS AFTER RECEIVED DEPOSIT.
2. TERMS OF PAYMENT:
BY 30% IN ANVANCED, THE BALANCE 70% BY T/T BEFORE SHIPMENT.
3. PRICE VALID UNTIL:
15-20DAYS.
4. PACKING:
WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT.
5. PORT OF SHIPMENT:
GUANGZHOU or SHENZHEN PORT.
Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!
Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping,We will adjust the machine to optimal effect before delivery.And spare is always available and free for you in warranty year.
Q3: Do you have manual or operation video for us to know more about the machine?
A3: Yes,we will send you the manual and operation video after you ask for us.
Q4: If there's some spare parts that broke, how to solve the problem?
A4: Yes,we will send you the manual and operation video after you ask for us.
Q5: If there's some spare parts that broke, how to solve the problem?
A5: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
Q6: What is perfume making machine?
A6: perfume making machine is a mixing system, freezing and filtration system for the manufacture of perfume, cologne, deodorant and toilet water in cosmetics industry.
Q7: What is perfume making machine made of?
A7: perfume making machine is usually made of perfume mixing tank , chilling system, filtration system, diaphragm pump and electrical control panel etc.
The perfume mixing system: there's a spiral evaporating coil inside the tank. The evaporating coil is connected to the chiller. If you need, we also can add a pneumatic motor on the top of the tank for mixing
The chiller takes French technology and the minimum chilling temperature can amount to -15 degree Celsius.
The filtration system includes two pieces of polypropylene microporous membrane filters. The filtration capacity is 0.2~1 micrometers.
Q8: How does perfume making machine work?
A8: In our standard perfume making machine, the evaporating coil in the tank working circulation can mixing the perfume, we also can add pneumatic motor on the top of the tank for mixing.
During the mixing operation, the ingredients (mainly alcohol) are pumped out from the bottom valve by diaphragm pump. The perfume passes the first and second filters to get it clarified. Then the perfume goes back to the mixing tank waiting for another filtration.
At the same time, the chiller works producing very cold temperature. The evaporating coil inside the perfume tank transfers the chill to the perfume around it. The impurity will be resolved from the perfume and filtered during the circulation.
