Prefabrication Method For Tank Wall Of Stainless Steel Storage Tank

Pulished on Apr. 19, 2019

Here is Top Open Water Storage Tank Supplier talking about Prefabrication method for tank wall of the stainless steel storage tank.

If you have any idea about it, welcome to contact us and discuss.

Prefabrication Method For Tank Wall Of Stainless Steel Storage Tank

The stainless steel storage tank is a single or multi-layered vertical or horizontal structure of hygienic clean stainless steel container equipment. It is a liquid storage device commonly used in bioengineering, food, beverage, fruit wine, condiment, chemical, grease, and other industries.

The prefabrication method for the tank wall of stainless steel storage tanks is as follows:

1. For tanks with a diameter of fewer than 25 meters, the width of the wall shall not be less than 1000mm and the length shall not be less than 1000mm;

2. For tanks with a diameter greater than or equal to 25 meters, the width of the wall shall not be less than 1000mm and the length shall not be less than 2000mm;

3. The interval between the longitudinal weld of the bottom wall panel and the butt weld of the bottom edge of the tank bottom shall not be less than 300 mm, and the longitudinal joint spacing between the upper and lower rings shall not be less than 500 mm;

4. The spacing between the opening of the tank wall or the opening of the hole receiving the reinforcing ring and the longitudinal ring of the tank wall shall be greater than 8 times of the size of the welding foot and not less than 250 mm.

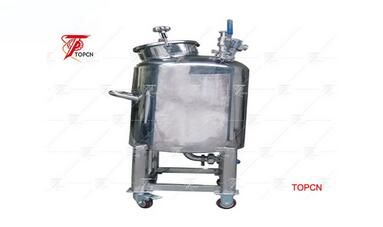

At the same time, Stainless Steel Essential Oil Tank can be offered for you.  Looking forward to receiving your inquiry info@topcnmachine.com.
