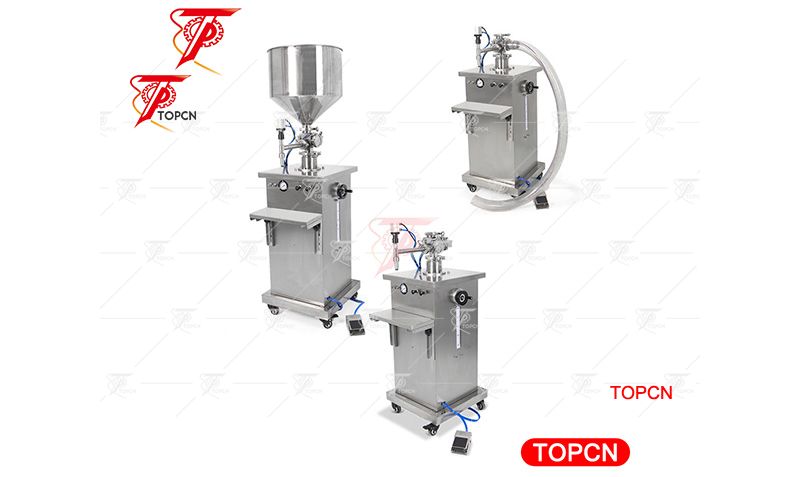

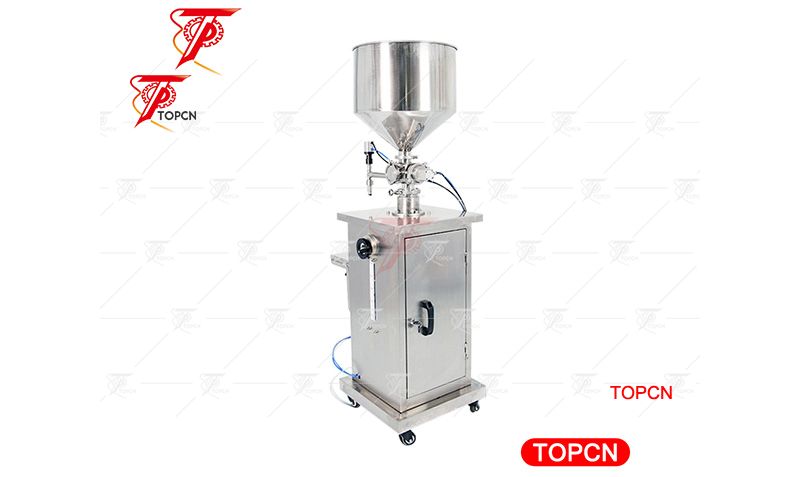

Semi automatic pneumatic bottle filler piston jar filling machines

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping
  • FAQ

Semi automatic liquid filling machine most commonly applicable for pharmaceutic, daily chemicals, foodstuffs, cosmetics, pesticides and other industrial.
self suction semi automatic liquid filling machine use for filling liquid and paste material, such as mineral water, cooking oils, juice, detergent, sauce, salad, butter & margarine, ketchup, jam, cram, honey, shampoo etc. It is apply for various packing such as bottle, jar, can, cup, bag, barrels etc.

Semi automatic pneumatic bottle filler piston jar filling machines


1. TSFM01 Jar filling machines are controlled by compressed air, so they are suitable in explosion-resistant or moist environments;
2. Because of the pneumatic controls and mechanical positioning, this bottle filling machine has a high filling accuracy;
3. The filling machine filling volume is adjusted by hand wheel, which provides ease of adjustment and allows the operator to read the real-time filling volume on the counter;
4. When you need to stop the semi automatic liquid filling machine in an emergency, push the URGENT button;
Self suction liquid filling machine piston will go back to its initial location and the filling will be stopped immediately;
5. The semi automatic liquid filling machine modes for you to choose--Manual and Automatic;
6. The water filling machine Filling precision: ±1%.


ItemsTSFM01-60TSFM01-120TSFM01-250TSFM01-500TSFM01-1000TSFM01-2500TSFM01-5000
Filling range5-60ml10-120ml25-250ml50-500ml100-1000ml250-2500ml500-5000ml
Air pressure range4-6kg/cm24-6kg/cm24-6kg/cm25-8kg/cm25-8kg/cm25-8kg/cm25-8kg/cm2
Filling speed0-50 B/min0-50 B/min0-50 B/min0-50 B/min0-50 B/min0-30 B/min0-15 B/min
Filling precision1%1%1%1%1%1%1%
Net weight16kg18kg23kg32kg39kg47kg72kg



Semi automatic pneumatic bottle filler piston jar filling machines

1. DELIVERY LEAD TIME:

5-7 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT

2. TERMS OF PAYMENT

BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT

3. PRICE VALID UNTIL

30 DAYS.

4. PACKING:WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT

5. PORT OF SHIPMENT

GUANGZHOU or SHENZHEN PORT

Semi automatic pneumatic bottle filler piston jar filling machines

Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!


Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.


Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.


Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,.


Q5: What should I do to choose the best machine for us?
A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.


Q6: Do you have manual or operation video for us to know more about the machine?
A6: Yes, we will send you the manual and operation video after you ask for us.


Q7: If there's some spare parts that broke,how to solve the problem?
A7: Yes, we will send you the manual and operation video after you ask for us.


Q8: If there's some spare parts that broke,how to solve the problem?
A8: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides,we'll send you the spare parts for free, but the shipping cost should be paid by your side.


Q9: Do you have manual or operation video for us to know more about the machine?
A9: Yes, we will send you the manual and operation video after you ask for us.


Q10: If there's some spare parts that broke,how to solve the problem?
A10: Yes, we will send you the manual and operation video after you ask for us.


Q11: If there's some spare parts that broke,how to solve the problem?
A11: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
