Manual Cylindrical Soap Strip Cutting Machine Small Soaps Slicing Machine without Table

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping
  • FAQ

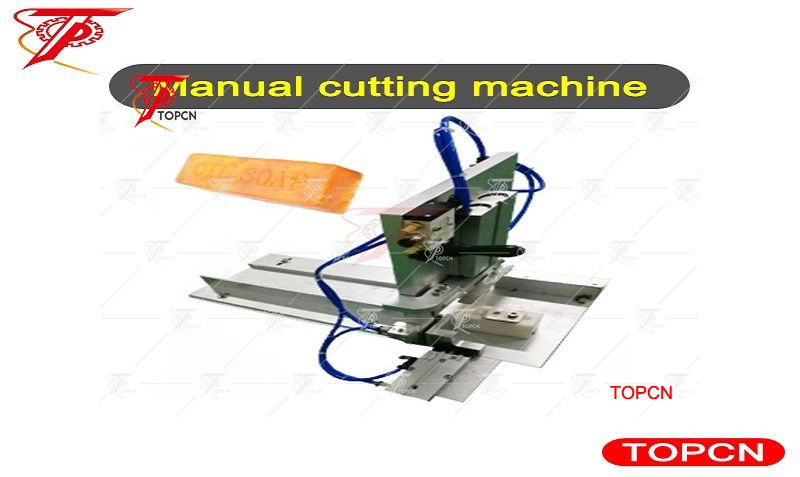

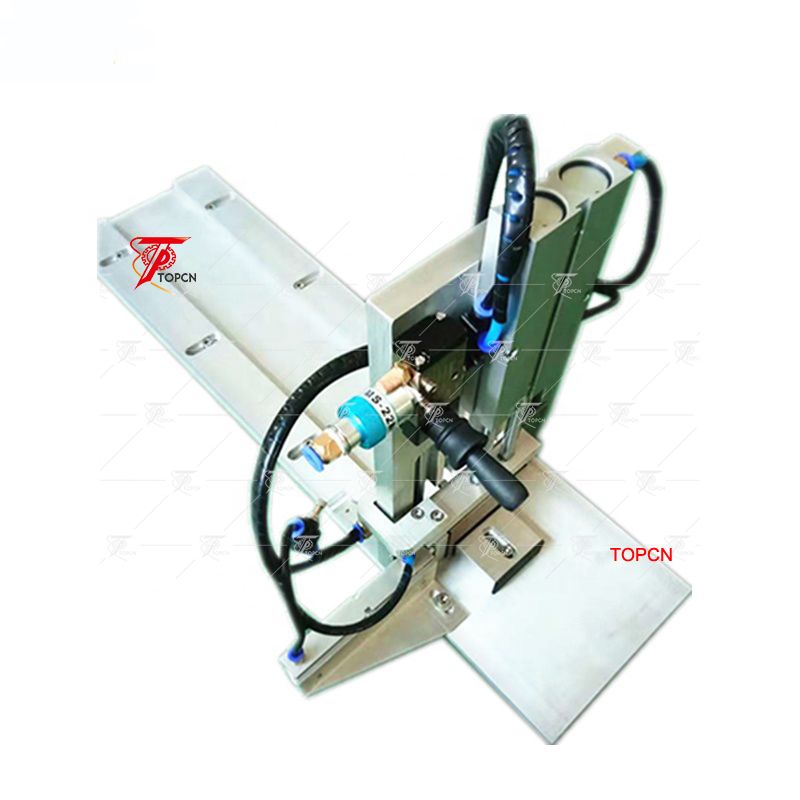

Manual Cylindrical Soap Strip Cutting Machine Small Soaps Slicing Machine without Table is special designed for cutting all kinds of soap bars, such as sulfur soap,toilet soap; perfumed soap,Transparent soap, laundry soap, Handmade Soap and other natural soap into block, bar, strip, even slices. can cut both rectangular and Cylindrical bar soap. without working table, it is flexiable and movable, more suitable for small soap processing factories.

Manual Cylindrical Soap Strip Cutting Machine Small Soaps Slicing Machine without Table

1. As machine is driven by pneumatic, so you need connect it with an air compressor separately first.



2.Place the machine on falt surface, set the cutting width as you required in advance.


3.Then Put long soap bar onto machine working table next by the Baffle,  start machine by pressing button.


4.when working, the worker should push the soap bar forward by left hand, Under great power of cylinder, the cutting knive fall down to cut once, then right hand remove the small soap bloack and press button again immediately to start cutting next block. the whole cutting processing around 2-3s. and then just repeat the actions again and again.


*The machine is divided into two semi-automatic, fully automatic, manual welcome to inquiry
*The shape of the soap cut, can be customized according to customer needs

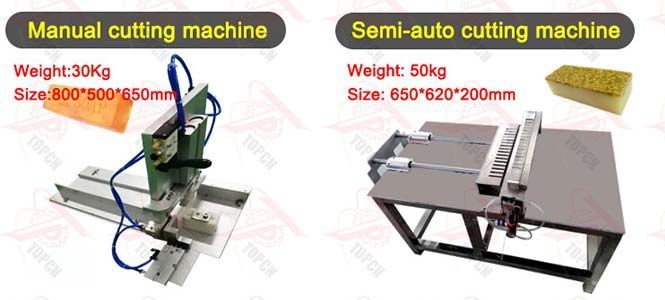

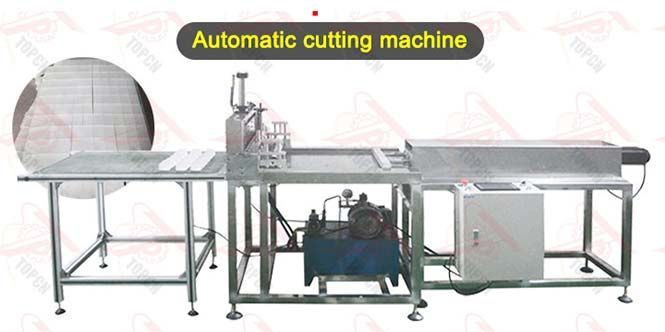

*The company also produces semi-automatic and fully automatic soap dicing machine, soap production line, soap stamp forming machine, soap mixer, etc.

Model

TSCM-02C

capacity

20-35pcs/min

Air compressor

0.4-0.6Mpa

power

500w

Weight:

30kg

Size

800*500*650mm

Manual Cylindrical Soap Strip Cutting Machine Small Soaps Slicing Machine without Table

Manual Cylindrical Soap Strip Cutting Machine Small Soaps Slicing Machine without Table

Manual Cylindrical Soap Strip Cutting Machine Small Soaps Slicing Machine without Table

1. DELIVERY LEAD TIME:

5-7 WORKING DAYS AFTER RECEIVED DEPOSIT.

2. TERMS OF PAYMENT:

BY 30% IN ANVANCED, THE BALANCE 70% BY T/T BEFORE SHIPMENT.

3. PRICE VALID UNTIL:

15-20DAYS.

4. PACKING:

WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT.

5. PORT OF SHIPMENT:

GUANGZHOU or SHENZHEN PORT.

Oil Soap Cutting Machine

1, Q: Soap industry production process?
A: Basically, the soap production need 2steps:
a, using all kinds of oil&fast as material to produce semi-finished soap noodle;
b, using seme-product soap noodle to produce end bar soap.


2, Q:What is the kinds of the soaps?
A: For convenience, we separate the soap into two kinds, toilet soap for washing hand&taking bath, herbal soap, hotel soap, antiseptic soap are included;
The second kind is laundry soap for washing clothes, etc.


3, Q: What kind of oil is suitable for soap production?
A: All kinds of vegetable oil and animal fats are usable, palm oil, cotton seed oil, tallow oil, coconut oil, sunflower oil, etc.


4, Q: What is the floor of the workshop size?
A: For oil line: 35*7m with height 7m;
For soap noodle line: 25*3m with height 4m.


5, Q: What is the formula?
A: Raw material is oil, caustic soda and salt; semi-product is soap noodle, perfume and color.
Accurate formula based on your local market's request is available after confirmation of order.


6, Q: How about the Engineer and technique support?
A: 1, We would send engineer overseas for machine installation, staff training and production test running, till your own staff can operate the machine well and product out qualified soaps.
2, During the life-span of our machines, we should give consistent technique support and service, and we are pleasure to be on service of you.(24hours on line)
