High Quality Fully Automatic Round Toilet Soap Pleated Wrapping Machine Price

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping
  • FAQ

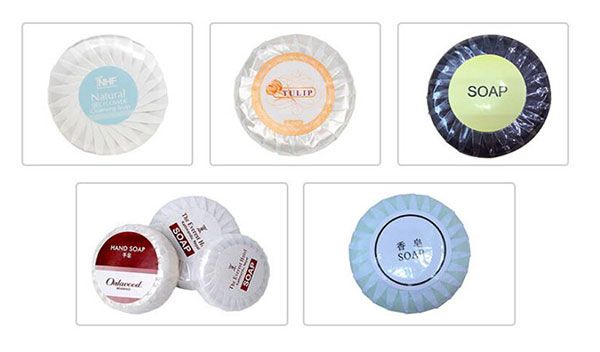

Automatic round soap pleat wrapping machine is made specially for round hotel soap, toilet soap, round hard food pleat wrapping.It can pack the specifications of soaps, from 10gram to 80gram, diameter from 40-60mm; each specification requires one set of mould, it can be connected with production line. Only one operator who feeds soaps is required for the machine if the machine works alone.

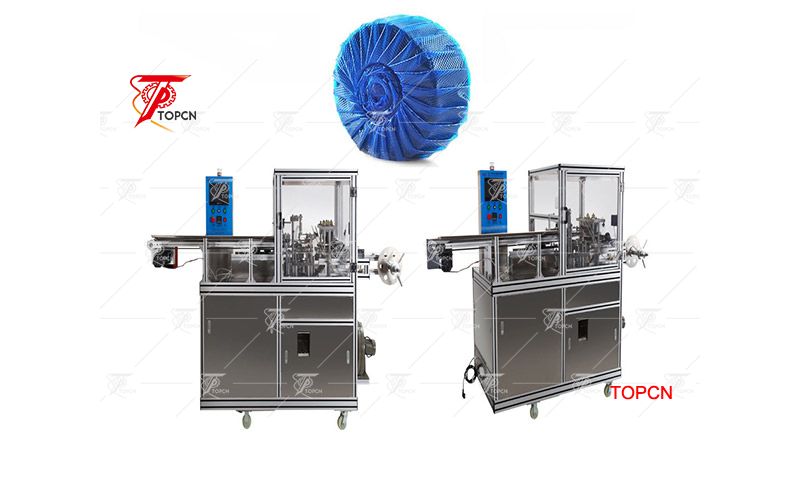

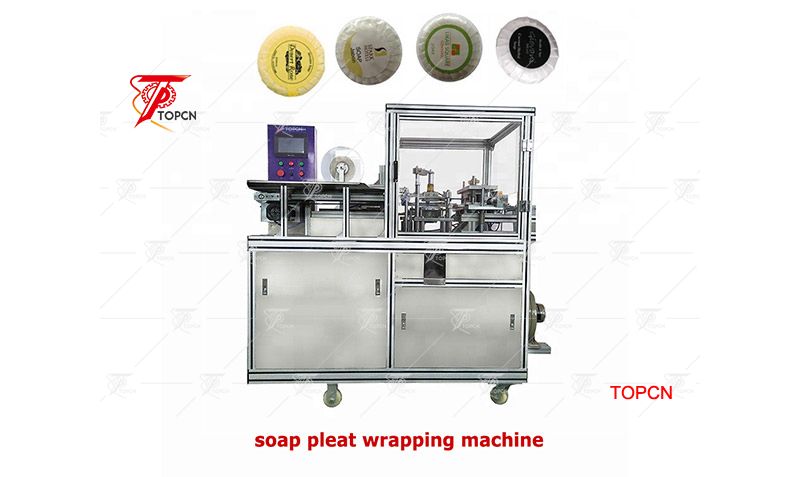

Automatic round Toilet Block Soap Pleat Wrapping machine

1.The machine adopts cam design, stable run, compact structure, good packaging appearance, packing speed is fast, and it is 3-4 times than manual packages.

2. PLC and HMI controller, parameters setting is convenient.

3. Trouble self-detecting functions, it can show trouble.

4. Automatic cutting of bottom paper, the suitable packing material.

5. Automatic label sticking.

6. Convenient replacement of mould, simply adjustment.

7. Simple transmission, reliable work, convenient maintenance.

8. All control points are by software.


Working speedKVBZ-5040-50pcs/min
Soap SizeDiameterφ40--φ60mm
Height10--50mm
Packing paper SizeRoll Outer Diameterφ≤300mm
Packing paper width95-150mm
Roll Inter Diameterφ≤75mm
Label SizeRoll Outer Diameterφ≤300mm
Label Diameterφ≤50mm
Roll Inter Diameterφ≤75mm
Thickness0.03~0.05mm
Power
2000w
Power Supply
220V/110V
Machine Weight
About 500kg
Machine Size1950x1450x1650mm(L*W*H)



High Quality Fully Automatic Round Toilet Soap Pleated Wrapping Machine Price

Automatic round Toilet Block Soap Pleat Wrapping machine


1. DELIVERY LEAD TIME:

35-50 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT

2. TERMS OF PAYMENT

BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT

3. PRICE VALID UNTIL

30 DAYS.

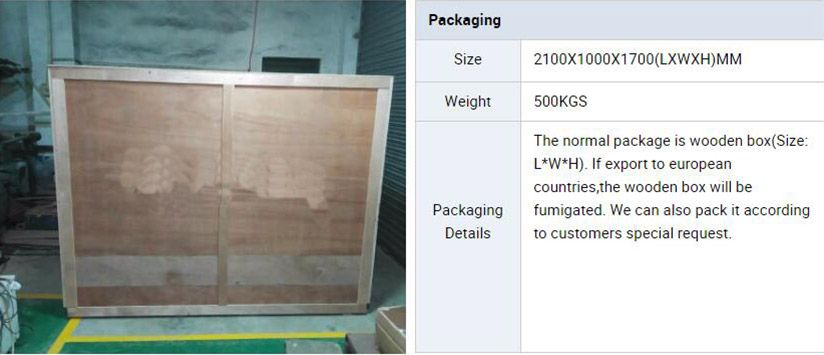

4. PACKING:WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT

5. PORT OF SHIPMENT

GUANGZHOU or SHENZHEN PORT


Q: What should I do to choose the best machine for us?
A: 1)Tell me the soap shape,soap size you want to package, we'll choose the suitable type of machine for you to consider.
2)After choose the suitable type of machine, then tell me the package speed you need for the machine.
3)At last tell me the inner diameter of soap and package paper to help us choose the best diameter of the package wrapping head.
Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: Yes, we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
