High workpiece ratio high productivity two connection soap wrapping machine for various shape soap

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping
  • FAQ

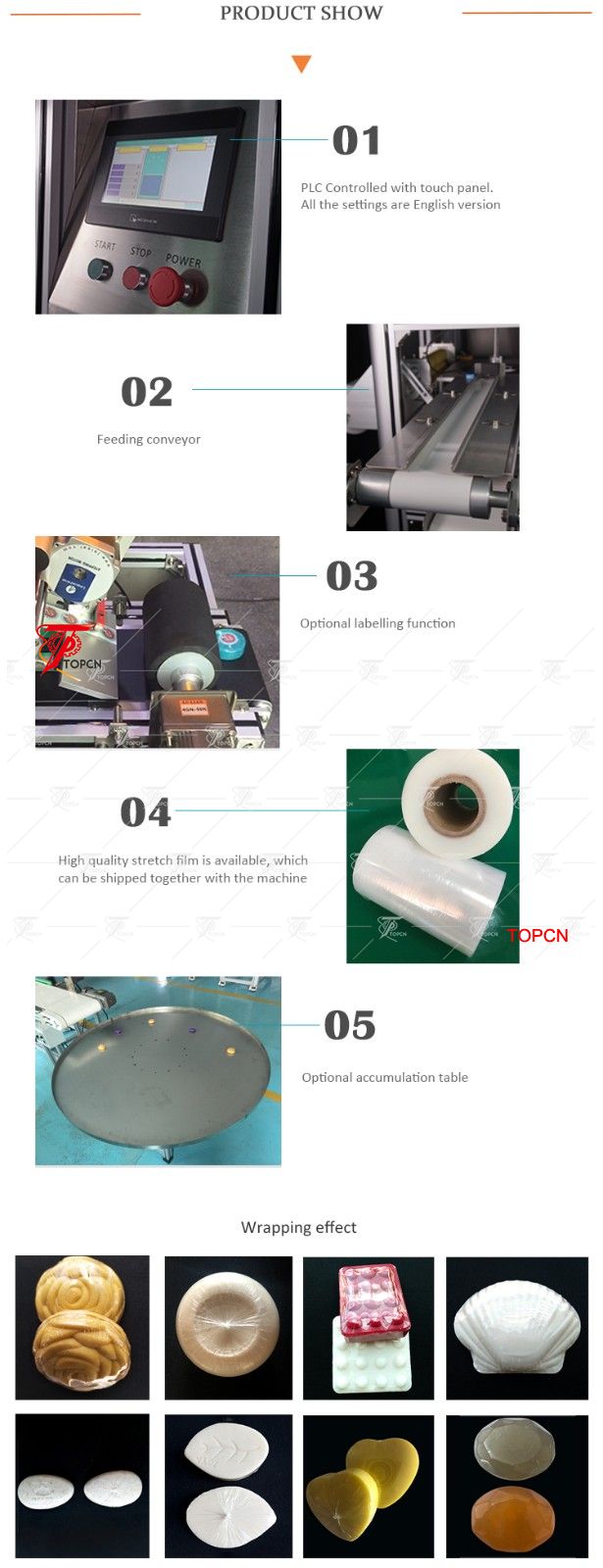

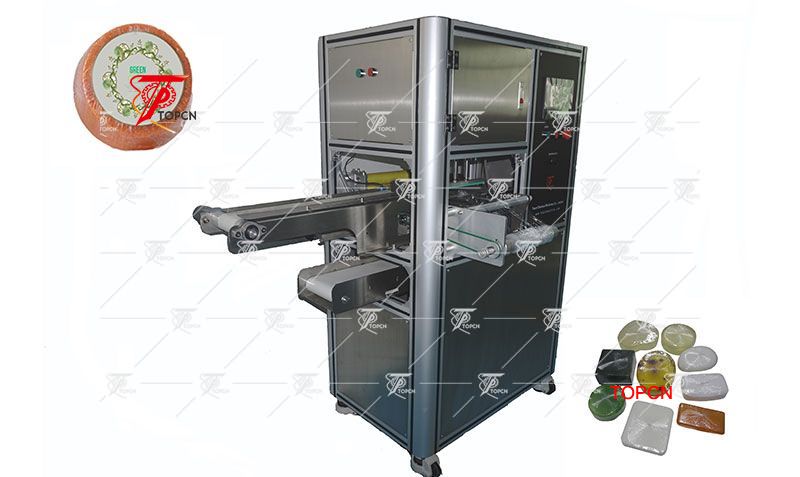

Oil Soap Wrapping Machine

1. This soap wrapping machine adopt cylinder drive system, and work steady, can get very good packaging effect.

2. Packing film auto stretch make shape. Auto recycle the left film.

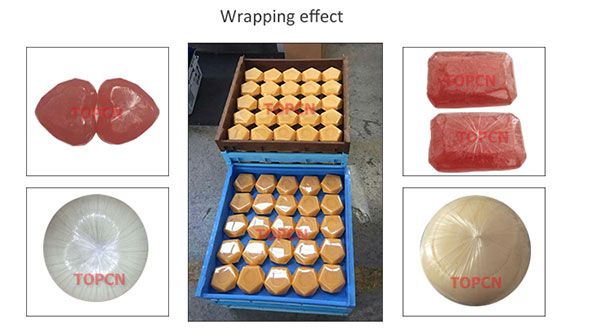

3. Auto close the end and shrink it.    automatic soap wrapping machine

4. Can pack various shape soap, no need change any mould.(except the specific shape )

5. With simple convey system work reliable, more convenient to maintain.

High workpiece ratio high productivity two connection soap wrapping machine for various shape soap

Model NoTPSW-03P
Shape & dimension scope of the soapOne set mold can meet different shapes & dimensions
Dimension scope of the soapMin. dia. : 35mm
Max.dia. : 80mm
Min.Thickness : 15mm
Max.Thickness : 40mm
Remarks : The soap dimension not within the standard
specifications need actual samples for testing
Characteristics1. Automatic self-checking function: It will automatically self-checking the problems and display on the screen while operating.
2. Working mode : Continuous
3. Operating mode : Inching or Single linkage or Automatic
4. Output count:6 digit
5. Touch panel
Weight of scope of the soap10g-120g
Packing speed10-20pcs per minute
Packing filmPE Stretch film
Film specificationWidth 24cm Thickness 0.018-0.025mnn
Film stretch aspect ratio1:06
Inner diameter of the tubeΦ75mm
Outer diameter of the film rollLess than Φ260mm
Air pressure0.5-0.7Mpa
Air consumption600cc./min
Power220v 50/60Hz(we offer customer- built service)
Max. Power120w
Noise55dB
Machine overall dimensionL1280*W960*H1580mm
Machine net weight120kg
Machine overall packing dimensionL1320*W1020*H1620mm

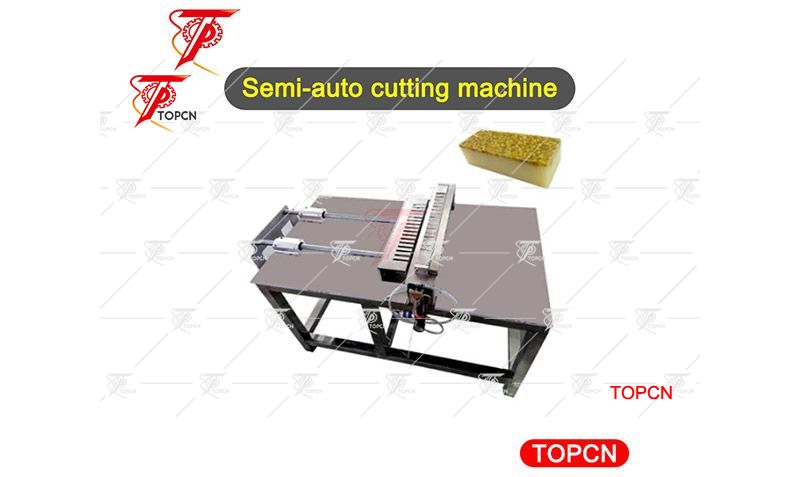

CUTTING MACHINE FOR SOAP BAR

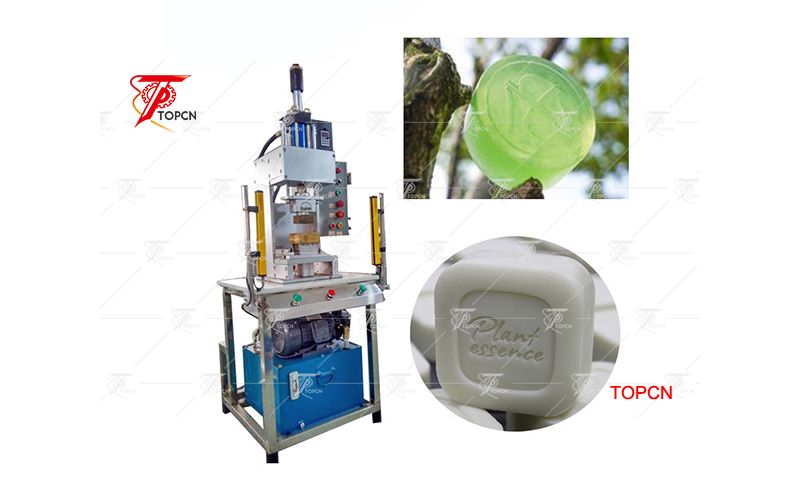

DESKTOP MANUAL HOME SOAP LOGO MOLD PRINTING MAKING MACHINE

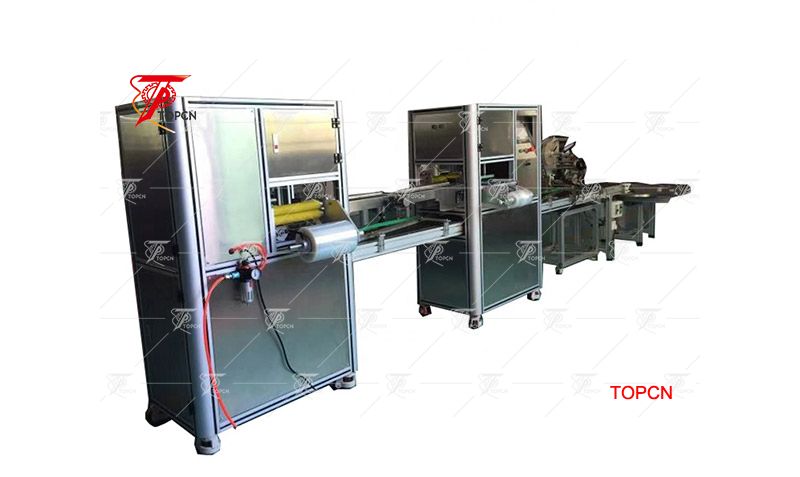

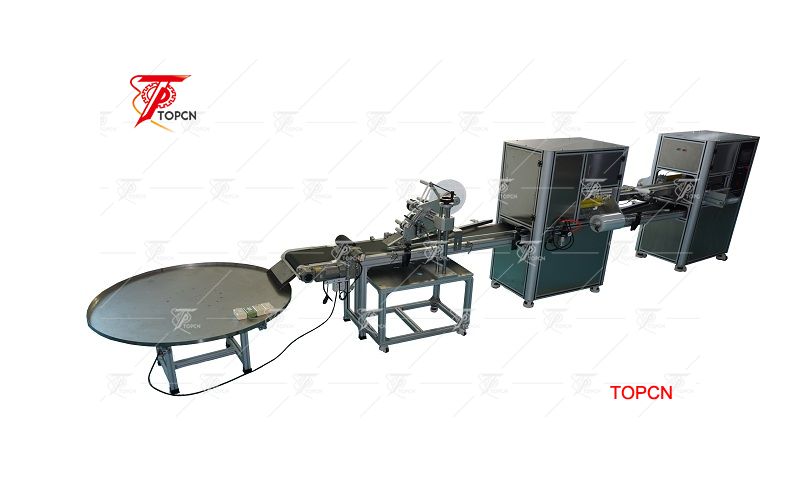

AUTOMATIC SOAP WRAPPING & LABELING MACHINE



High workpiece ratio high productivity two connection soap wrapping machine for various shape soap

Oil Soap Wrapping Machine

1. DELIVERY LEAD TIME:

7-10 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT

2. TERMS OF PAYMENT

BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT

3. PRICE VALID UNTIL

30 DAYS.

4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT

5. PORT OF SHIPMENT

GUANGZHOU or SHENZHEN PORT


Q: What should I do to choose the best machine for us?
A: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the package wrapping head.


Q: What thickness of the Film?
A: 0.022-0.03mm film package effect is good.


Q: What material of the Film?
A: Pearl Film, Phosphorus film paper, BOPP film.


Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, we will send you the manual and operation video after you ask for us.


Q: If there's some spare parts that broke,how to solve the problem?
A: Yes, we will send you the manual and operation video after you ask for us.


Q: If there's some spare parts that broke,how to solve the problem?
A: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
