Hotel manual soap packaging pleat soap wrapping machine can finish form the round shape wrapping film to be a piece of roll material, stick the paper label on the film, wrap soap at one time.

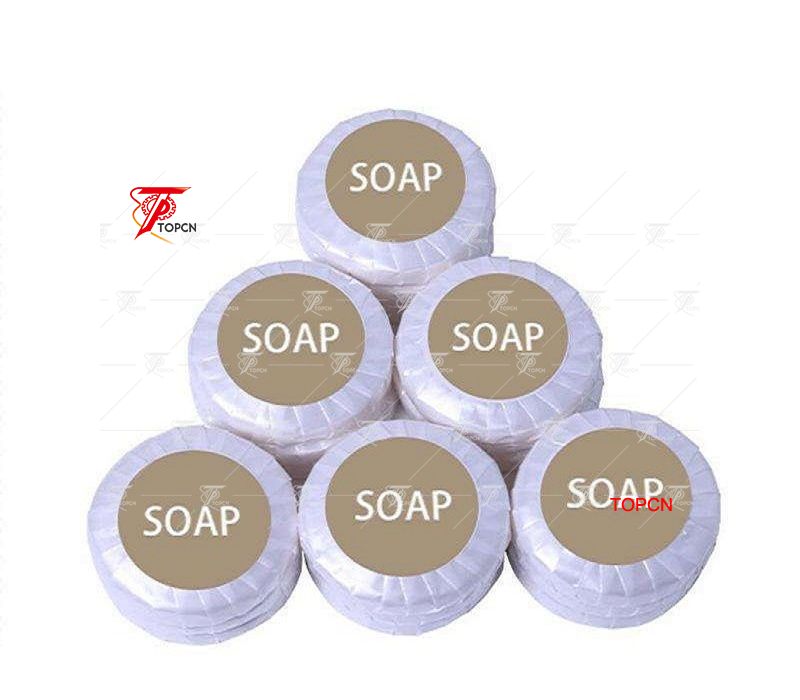

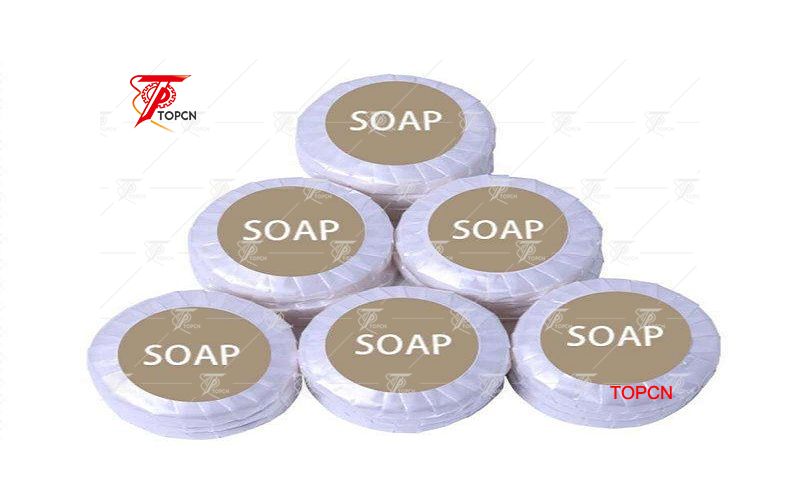

manual soap pleat wrapping machine can be wrapped round type and flower type, and weight 10-80 grams and diameter 40-60 mm. To change the size you need to change the molds.
automatic soap pleat wrapping labeling machine, hotel soap package machine

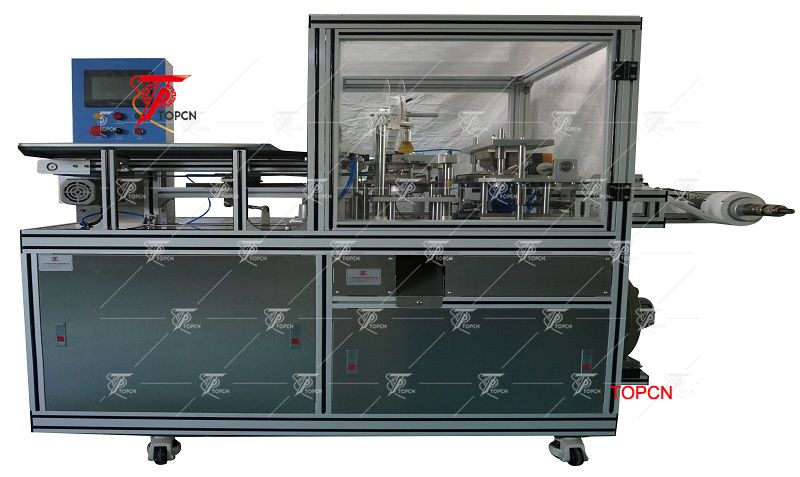

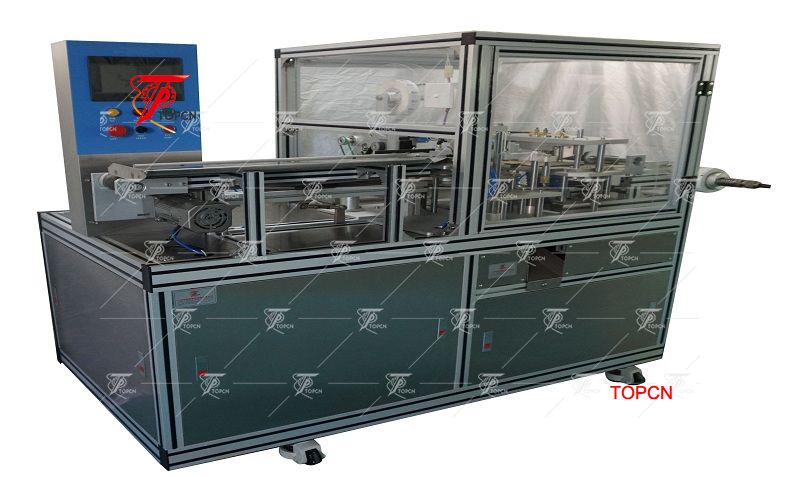

pleat wrapping machine is applicable to hotel soap pleat wrapping. pleat soap wrapping machine adopts international brand name electrical components and high quality mechanism parts.
We have over 10 years' experience on making this machine, and we are always researching and keep improving this machine, to make sure it is always top one high-tech and high-quality machine in China

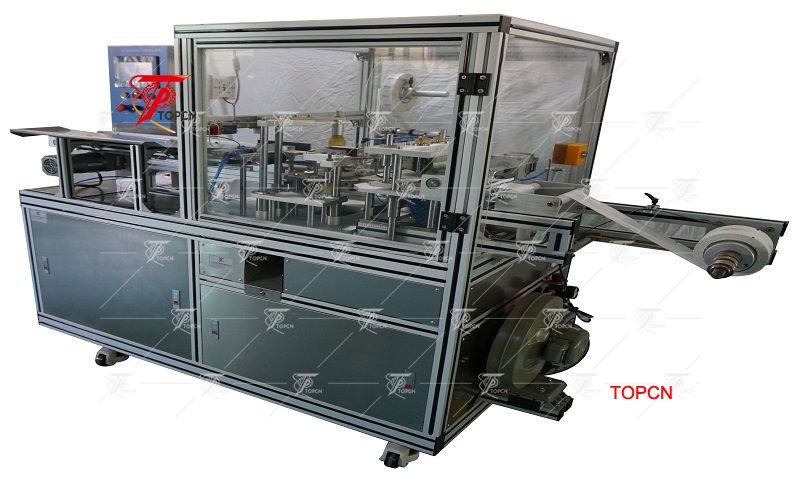

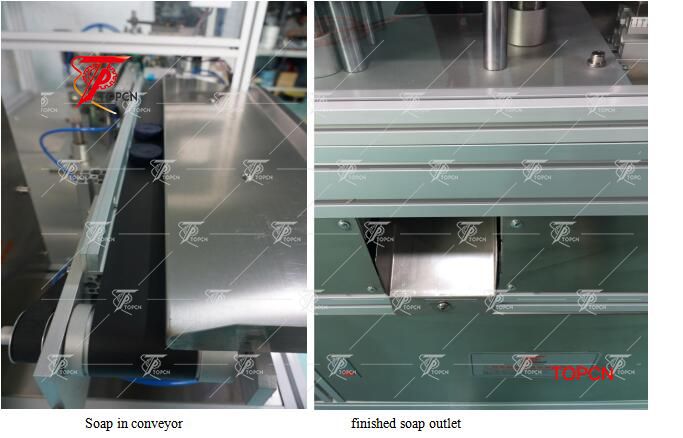

The machine feed the soap on the conveyor with a sensor to detect if the soap is on position to be ready for sucking. At the same time, the film is feeding and cut into hexagonal sheet, it will also be detected by sensor to feed on
the position in forming system. Then the soap will be wrapped by this sheet in pleat shape and labelled on top to seal at the end.
►For these models there have two models, The soap wrapping type is using cramp type format which may silent and fast.
►User-friendly panel.
►Lcd display, easily operated.
►Use roll type film for die cutting.
►Auto-labeling can use paper and clear PVC.

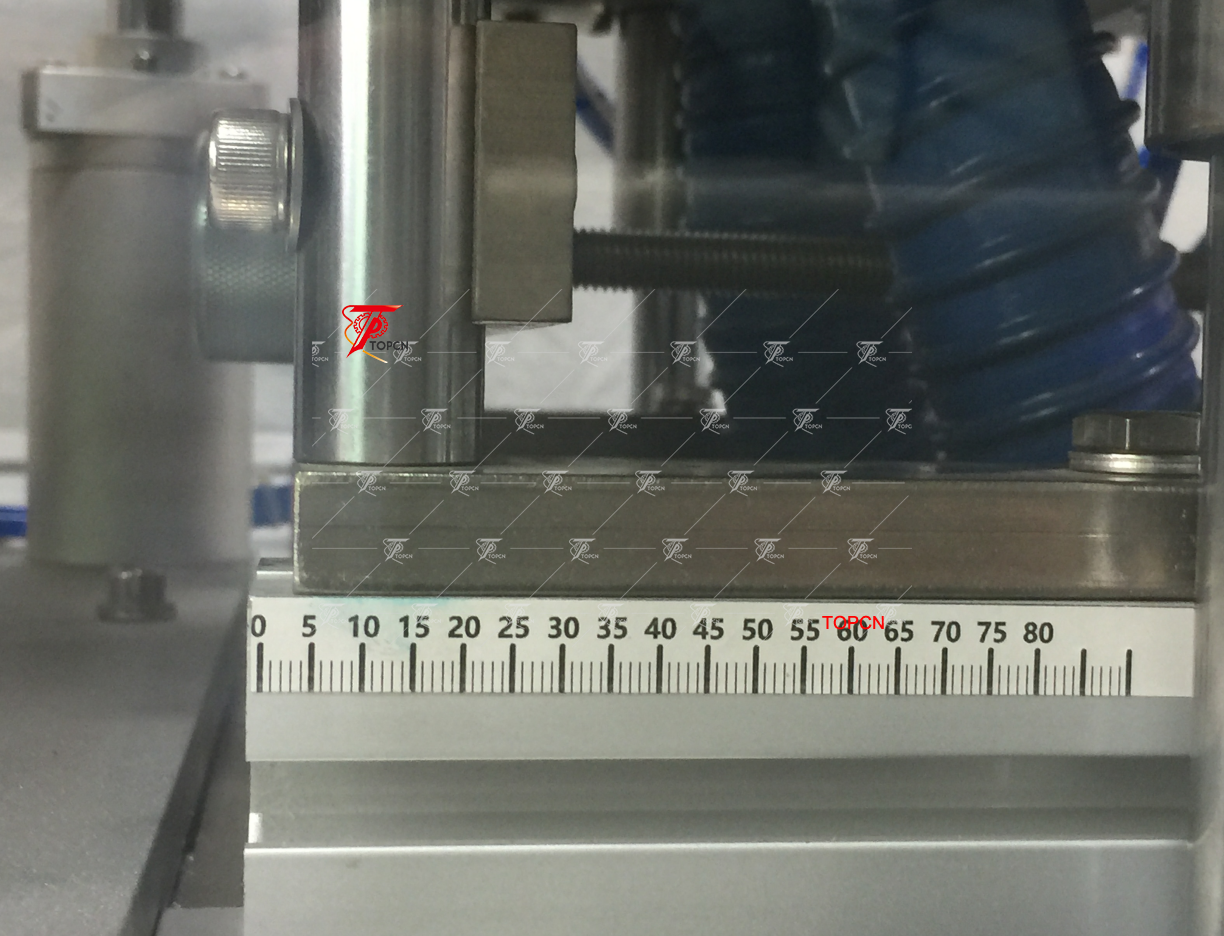

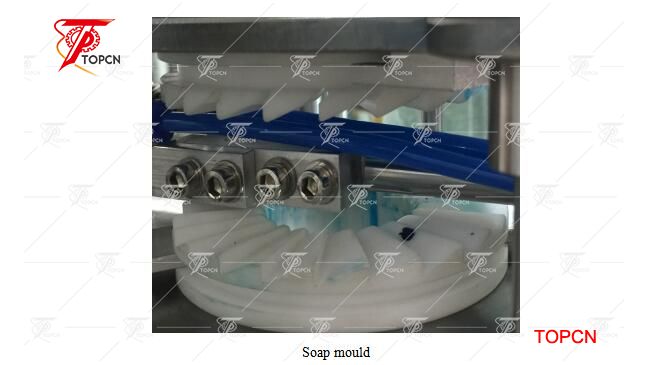

►Easy to change wrapping molds
►Easy repair and maintain
►Easy to software update
| Working speed | TPSW-01 manual soap pleat wrapping machine pleat wrapping machine pleat soap wrapping machine | 40-50pcs/min |
| Soap Size | Diameter | φ40--φ60mm |
| Height | 10--50mm | |
| Packing paper Size | Roll Outer Diameter | φ≤300mm |
| Packing paper width | 95-150mm | |
| Roll Inter Diameter | φ≤75mm | |
| Label Size | Roll Outer Diameter | φ≤300mm |
| Label Diameter | φ≤50mm | |
| Roll Inter Diameter | φ≤75mm | |
| Thickness | 0.03~0.05mm | |
| Power | 2000w | |
| Power Supply | 220V/110V | |
| Machine Weight | About 500kg | |
| Machine Size | 1950x1450x1650mm(L*W*H) | |

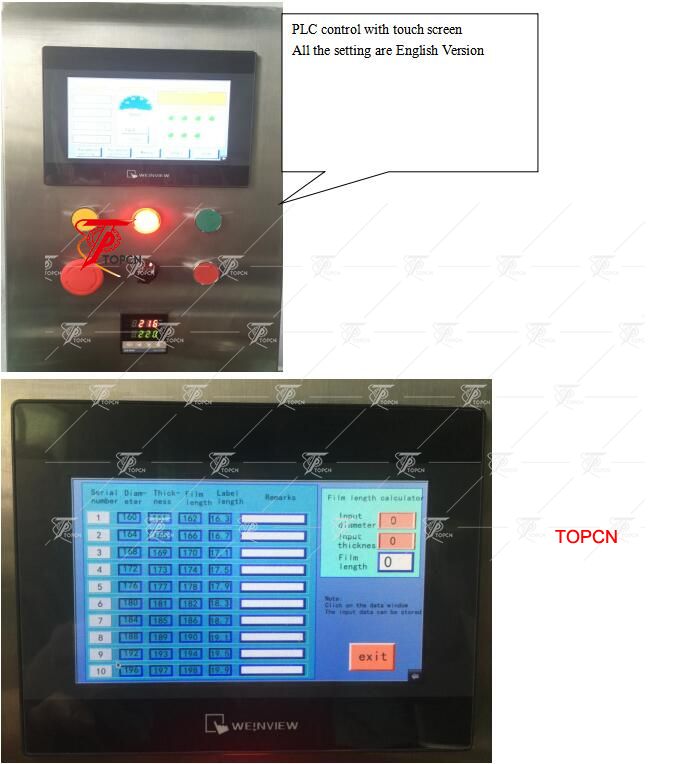

Film Setting rule
Automatic Round Toilet Block Soap Pleat Wrapping machine
1. DELIVERY LEAD TIME:
35-50 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT
2. TERMS OF PAYMENT
BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT
3. PRICE VALID UNTIL
30 DAYS.
4. PACKING:WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT
5. PORT OF SHIPMENT
GUANGZHOU or SHENZHEN PORT
Q: What should I do to choose the best machine for us?
A: 1)Tell me the soap shape,soap size you want to package, we'll choose the suitable type of machine for you to consider.,
2)After choose the suitable type of machine, then tell me the package speed you need for the machine.
3)At last tell me the inner diameter of soap and package paper to help us choose the best diameter of the package wrapping head.
Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: Yes, we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
