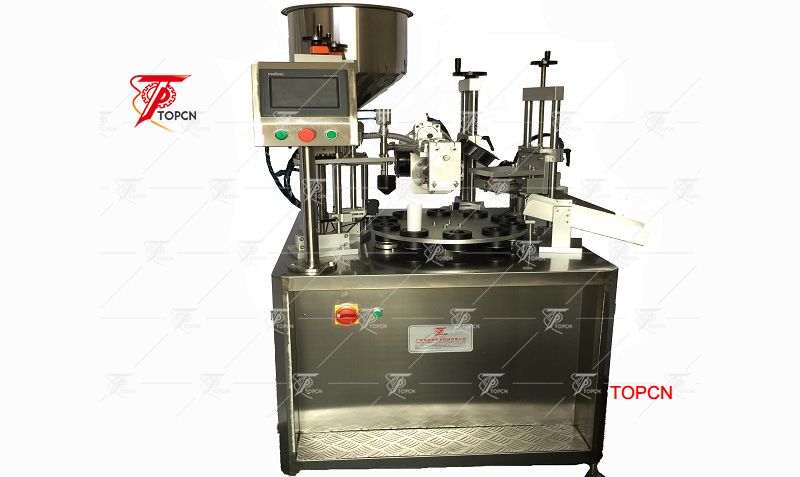

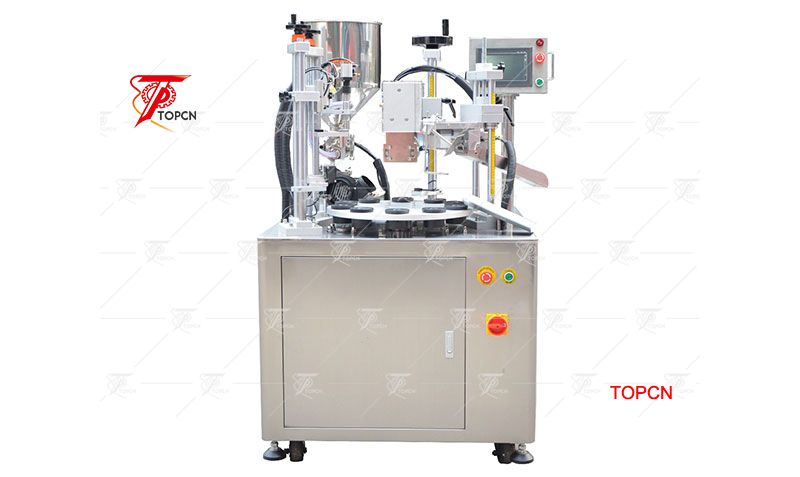

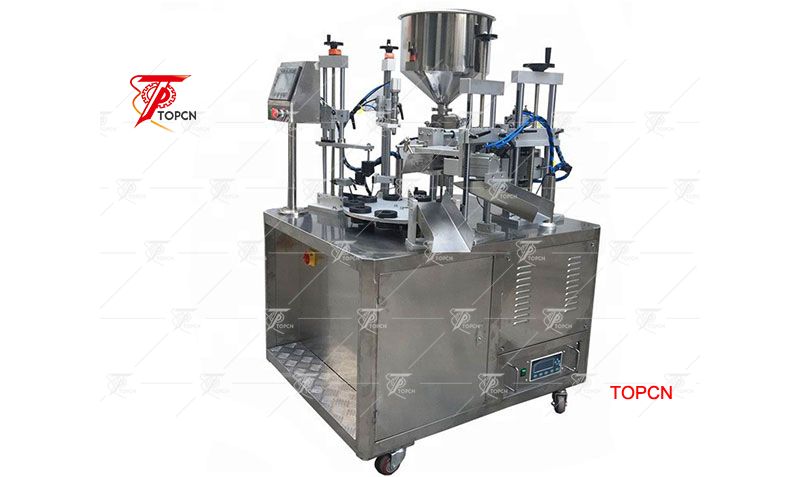

Automatic Ultrasonic Tube Filling and Sealing Machine

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping
  • FAQ

Suitable for plastic tube filling and welding in the field of cosmetic, medicine, commodity, hardware, etc.

Automatic Ultrasonic Tube Filling and Sealing Machine

  1. It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.
    2. Overload protection, phase separation protection, power-fail protection.
    3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material.
    4. With tube end trimming
    5. Easy change working mold for difference tube diameter
    6. Adjustable tube length
    7. Machine include a gear pump filler( Good filling precision+- 1)

Automatic Ultrasonic Tube Filling and Sealing Machine


NameUltrasonic Tubes Filling Sealing Machine
Ultrasonic Tubes Filling Welding Machine
Ultrasonic Tubes Sealer
Tubes materialAll kinds of plastic tubes, laminated material, or PE, LDPE, HDPE, PP, PVC, etc.
ProductsLiquid, cream, or paste
Volume5-250ml
FillingCylinder pump
Precision±1%
Tube sizeCaliber:15-50mm, length 50-220mm
Pneumatic0.6-0.8Mpa, 0.25cbm/min
Capacity20-25 pcs/min
VoltageAC220V 1 phase 50Hz.
Power0.2 Kw.
MaterialStainless steel 304
G.W.450Kg.
DimensionL1250*W850*H1650mm
FunctionThis machine is made of stainless steel, adopts ultrasonic sealing device, can seal all kinds of materials soft tubes, PLC+touch screen operate system, simple and easy to operate, the filling volume and speed can be adjusted easily. Except put the empty tubes by hand, all the workstages, such as, filling, sealling, cutting, printing codes, etc, are done by the machine automatically. This machine can fill various liquids, skin care cream, paste, sauce, ketchup, jam, mustard, ointment, medicine paste, tooth paste, etc. into plastic tubes or laminated material tubes and seal.
Remarks1). With locating mark sensor, can always seal the tubes at the same fixed position precisely;
2). Bucket with stirrer, heating or jacketed layers; (Optional)
3). SIEMENS PLC and SIEMENS touch screen operate system, easy to operate;
4). With graduator, ensure the rotary plate with the 8 tubes can turn a precise same angle or circular distance each time;
5). With embossing codes, can make date or batch codes on each tube; (Optional)
6).(Optional) With circulating water cooling system, can cool down the tails of the tubes after sealing, assure the tails sealed firmly and beautiful.
7). With trim cutting device, can trim cut the sealing edge automatically.

Automatic Ultrasonic Tube Filling and Sealing Machine


Automatic Ultrasonic Tube Filling and Sealing Machine

1. DELIVERY LEAD TIME:

70-10 WORKING DAYS AFTER RECEIVED DEPOSIT.


2. TERMS OF PAYMENT:

BY 30% IN ANVANCED, THE BALANCE 70% BY T/T BEFORE SHIPMENT.


3. PRICE VALID UNTIL:

15-20DAYS.


4. PACKING:

WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT.


5. PORT OF SHIPMENT:

GUANGZHOU or SHENZHEN PORT.

Ultrasonic Soft Tube Filling and Sealing Machine

Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!


Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping,We will adjust the machine to optimal effect before delivery.And spare is always available and free for you in warranty year.


Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.


Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, Japanese and etc,.


Q5: If i have many size tube, could them can use in one machine?
A5: Of course they can, we update the tech for design the metal tube holder/base for suiting any size and adjust the mold.


Q6: I have own material, is it no problem in tube filling and sealing?
A6: No any problem, we have designed for more than 150pcs different material. We design the machine by your material, like update in SUS316, Explosion-proof, high speed two filling head filling and so on.


Q7: Do you have manual or operation video for us to know more about the machine?
A7: Yes,we will send you the manual and operation video after you ask for us.


Q8: If there's some spare parts that broke,how to solve the problem?
A8: Yes,we will send you the manual and operation video after you ask for us.


Q9: If there's some spare parts that broke,how to solve the problem?
A9: First of all,please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides,we'll send you the spare parts for free,but the shipping cost should be paid by your side.
