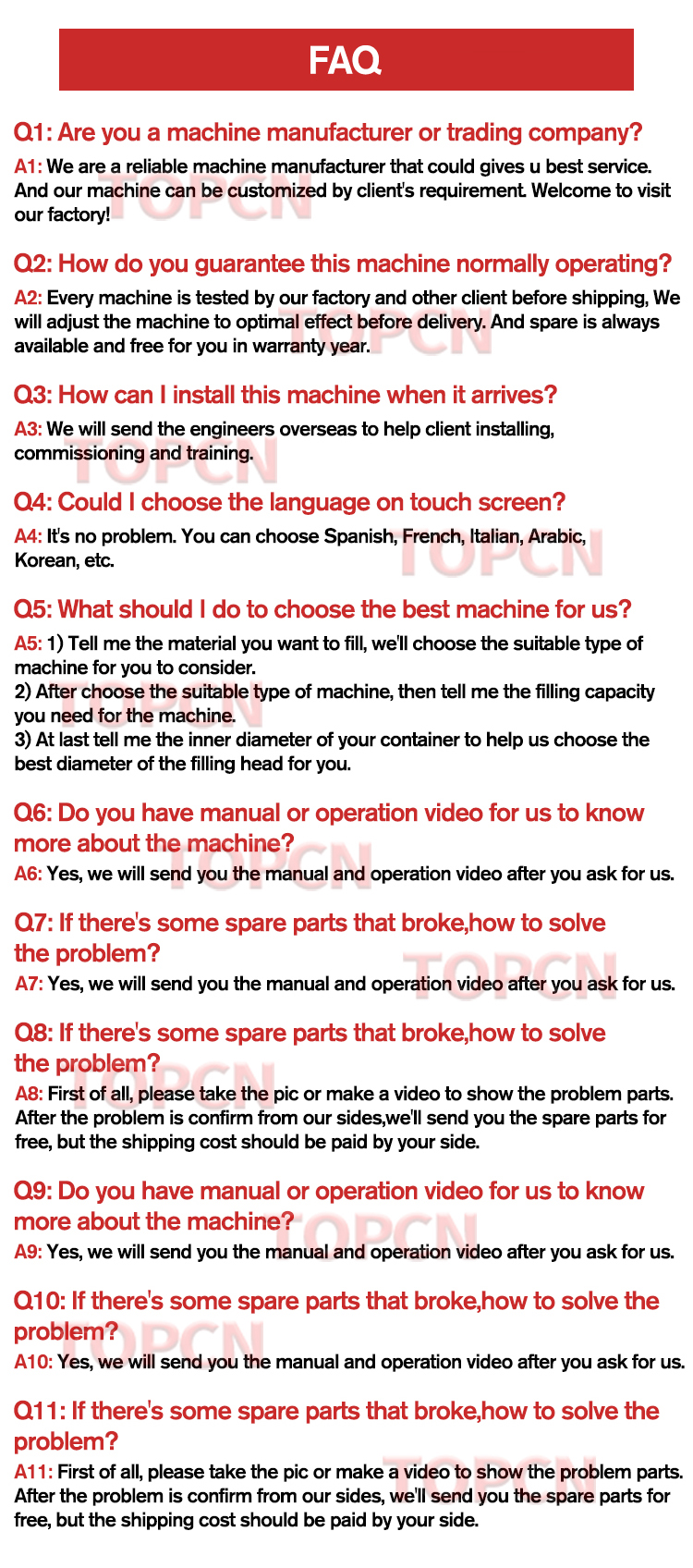

  • FAQ

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

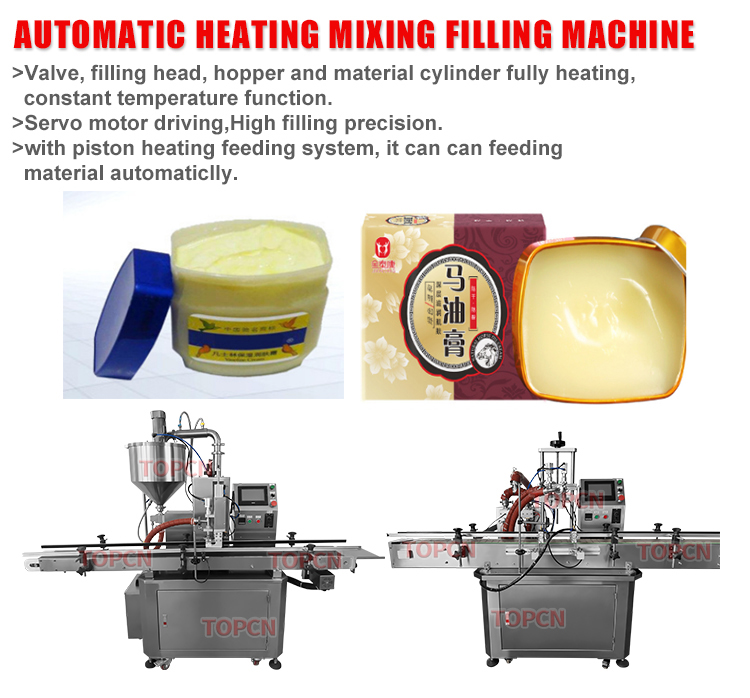

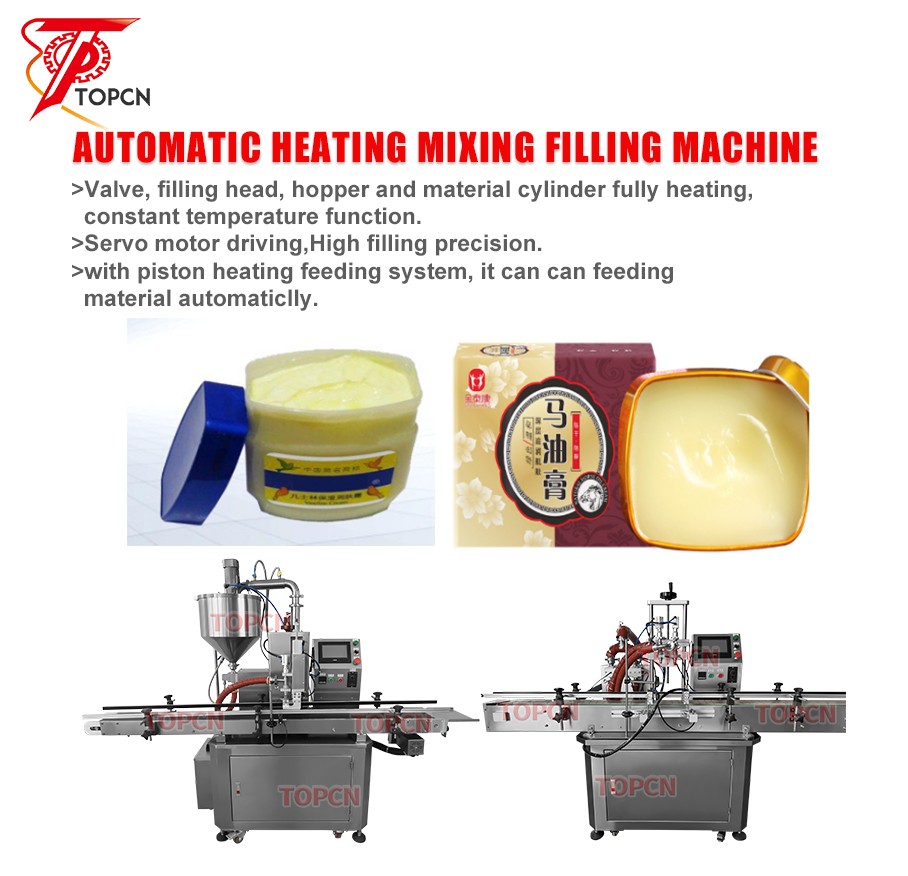

This machine is designed with mixing and heating function,servo motor controll, and it can feed filling material automatically. This machine is good for filling vaseline, hair wax, wax candle,shoe oil,Cooling oil,soap,tiger balm,ointment,balm  etc.

Feature

1.   automatic piston type or gear pump hot filling machine with heating jacket is suitable for various kinds of product which needs to be heated before filling, like vaseline, hair wax, wax candle,shoe oil,Cooling oil,soap,tiger balm,ointment,balm  etc.

2. Our filling machine has fully heating function of the whole filling system,including hopper, piston insdie the machine, filling nozzles.

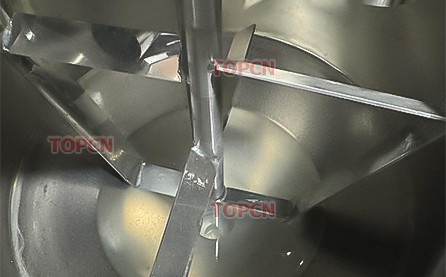

3. Machine has small Stirrer in the hopper to let the material accelerate and evenly heat

4.  Our filling machine is servo motor driven piston, is easy to operate, easy to clean, with high filling precision.

6.  This automatic filling machine is adjustable will be suitable for different kinds of bottles, different height and shapes. Means you can buy only 1 machine to do the filling work to all your bottles.

7.  The filling range of the machine is setting on touch screen, can meet your different products filling volume requirements.

8.  Filing nozzles is anti-drop design, machine with a high filling accuracy.

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

Voltage

110/220v 50-60HZ 600W

Piston Filling Range

5-60ml/10-350ml/50-500ml/100-1000ml

Gear Pump Filling Range

5-5000ml

Suitable bottle height

30-230mm

Suitable bottle diameter

20-160mm

Working Speed

(Based On Water)



20- 50bottles/Min

Heating Temperature

About 0-300℃

Mixing Speed

About 1200r/min

 Power

3500W

Filling Accuracy

≤0.5%

Air Pressure

0.5-0.7mpa

Size Of Filling Nozzle

φ4mm/φ6mm/φ8m

Size Of Air Compressor Connector

φ10mm

Machine Weight

About 200kg

Machine Size

2000*650*1750mm

Package Weight

About 230kg

Package Size

About 2005*700*1900mm

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

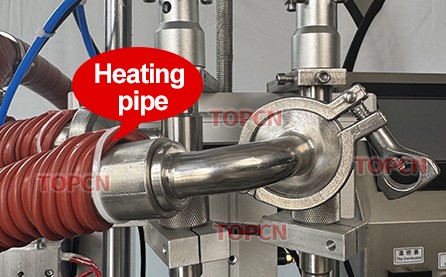

The high quality filling nozzle is with heater, and paste material maintaines a uniform temperature

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

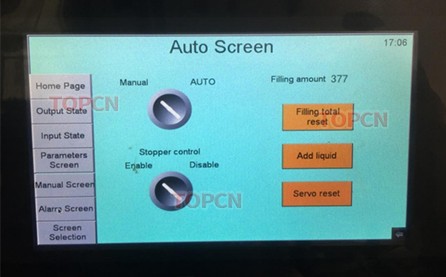

Equipped with touch screen control panel,this makes working parameter visual and more convenient to operate. The operation language can be customized into different kinds of language according to your need,please contact us if you need this.

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

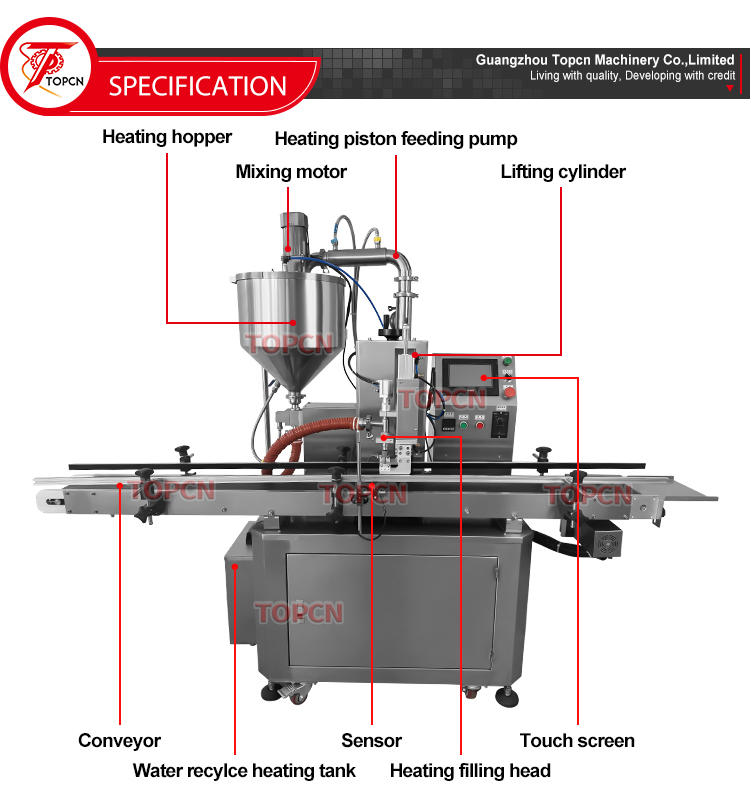

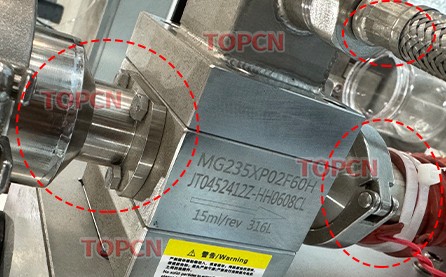

 Adopt precise servo gear  pump or piston pump filling system,Valve, material cylinder, filling pipe, filling nozzles, hopper ith heating,fully heating function of the whole filling system

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

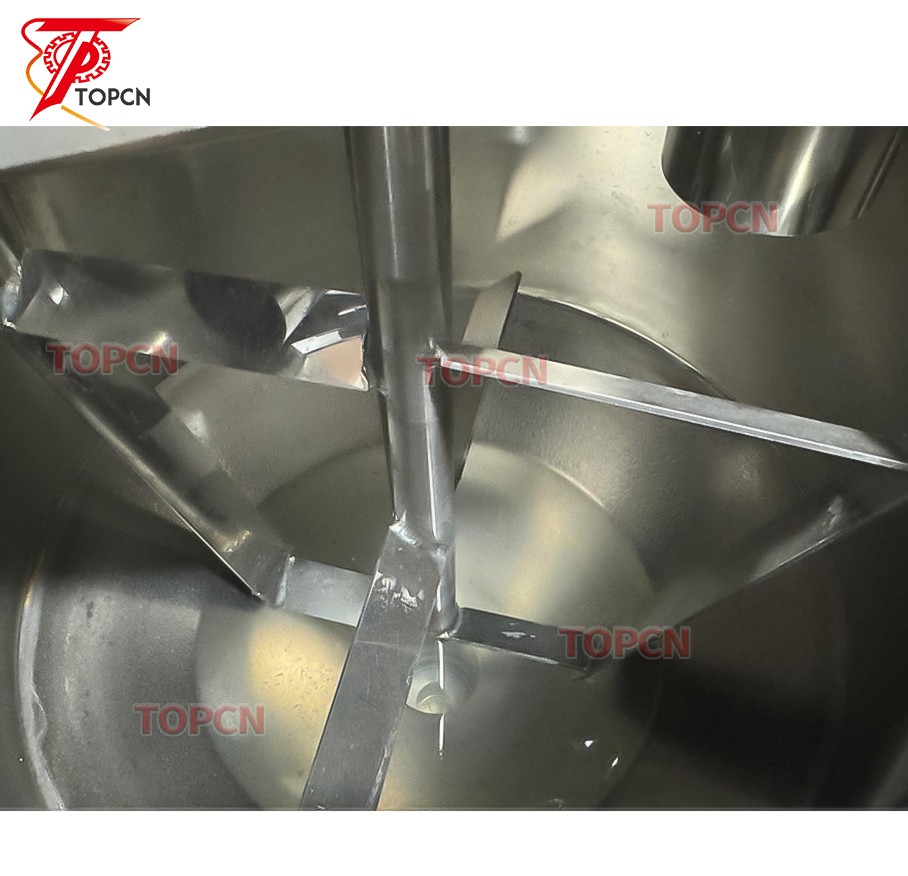

This machine is with mixing and heating function,the heating temperature and mixing speed can be adjusted according to the regulator.

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

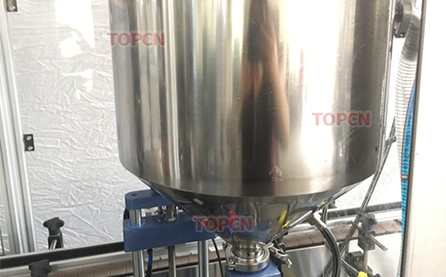

Hopper interlayer heating, no contact with the material,

TOPCN Automatic Single Head Petroleum Jelly Vaseline Thick Cream Cosmetic Heating Mixing Filling Machine

Water recycle  heating in full filling systemthe tank and discharge nozzle also have heating constant temperature function, temperature can be set.
