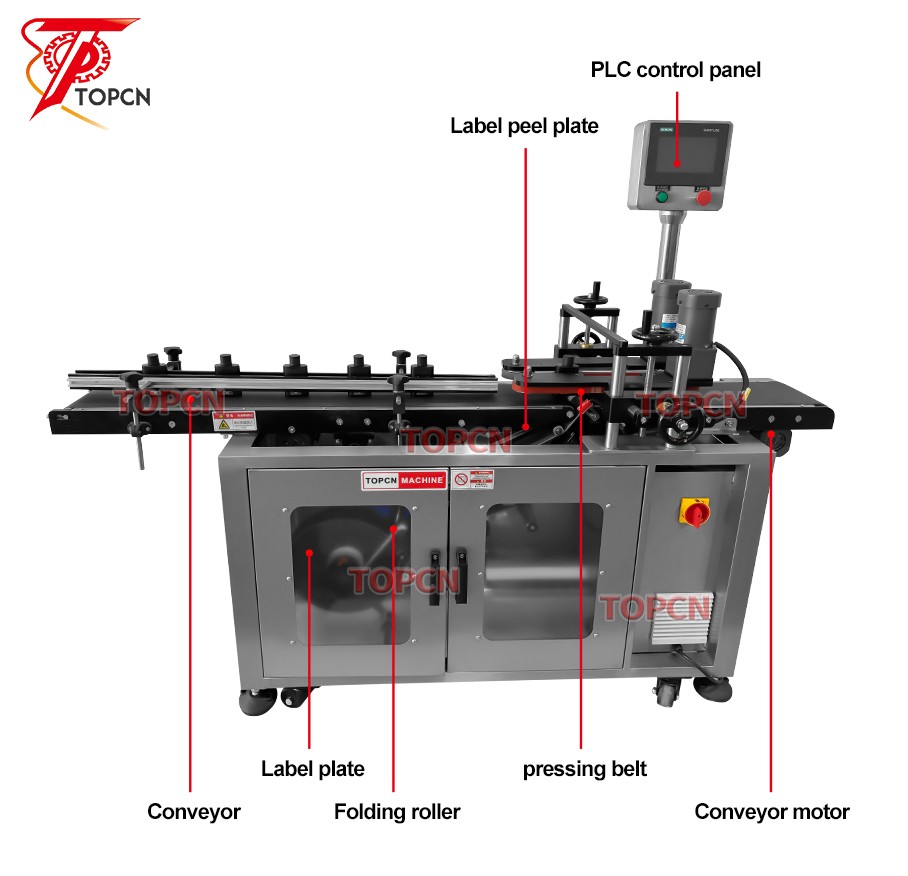

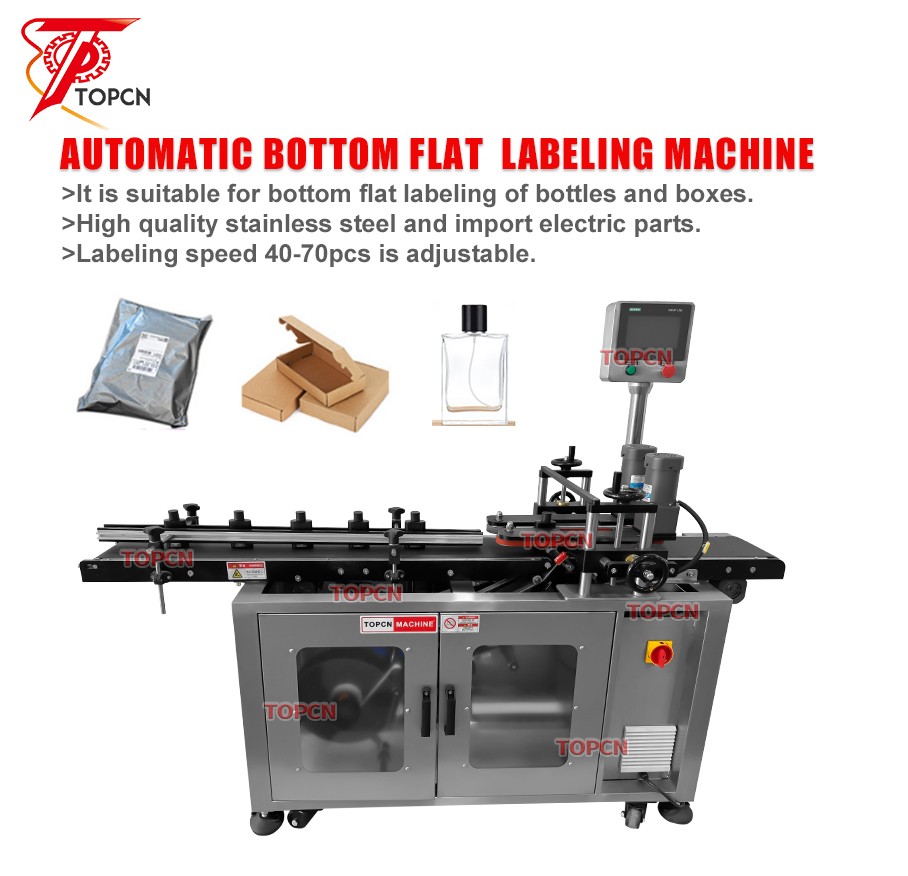

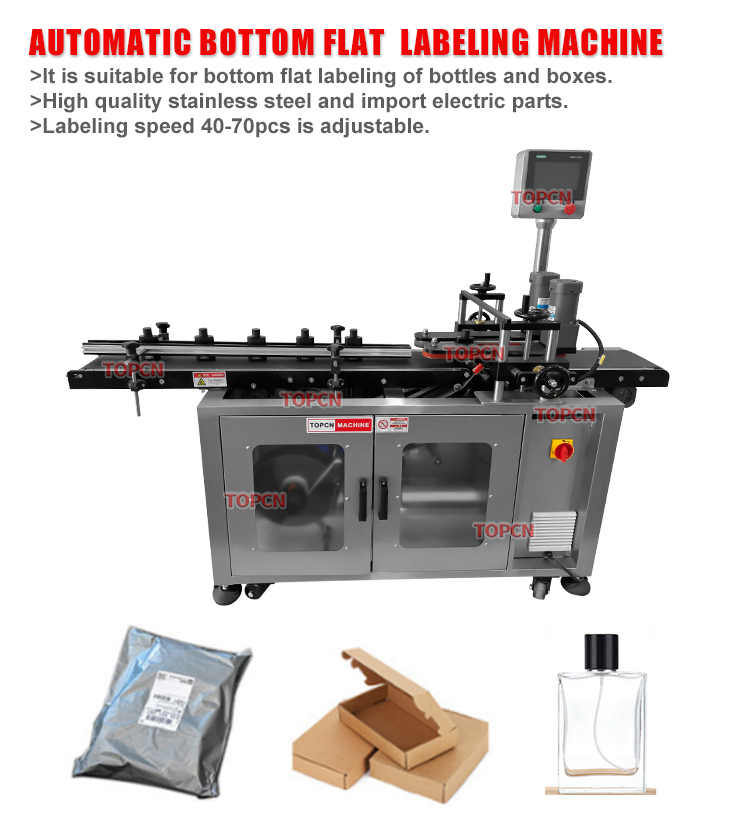

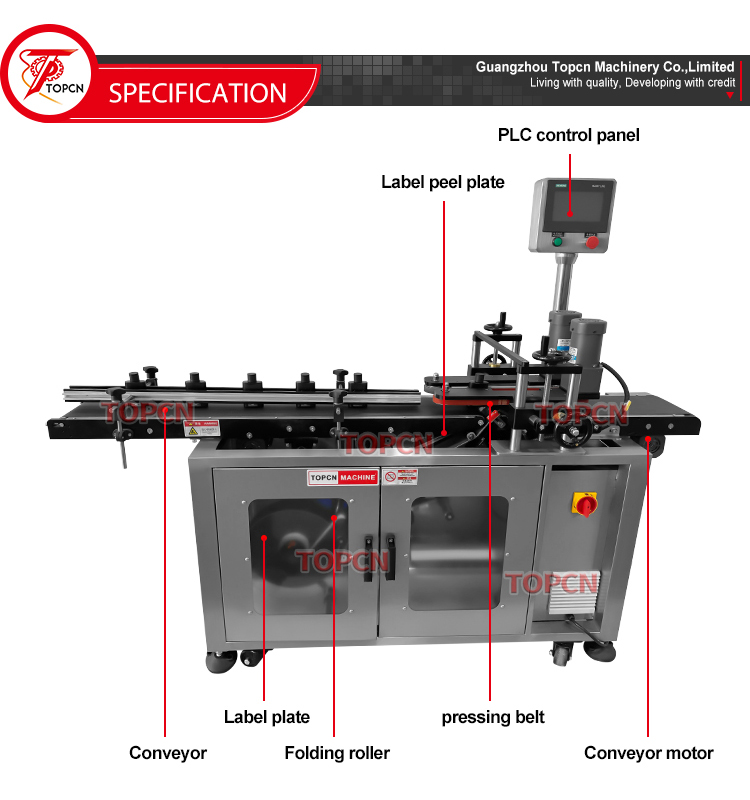

Automatic Cosmetics Box Glass Perfume Bottle Bottom Labeling Machine Flat Surface Adhesive Sticker Label Applicator

Name

Automatic Bottom Labeling Machine

Objects

Box, bottle, bag, bottom labeling

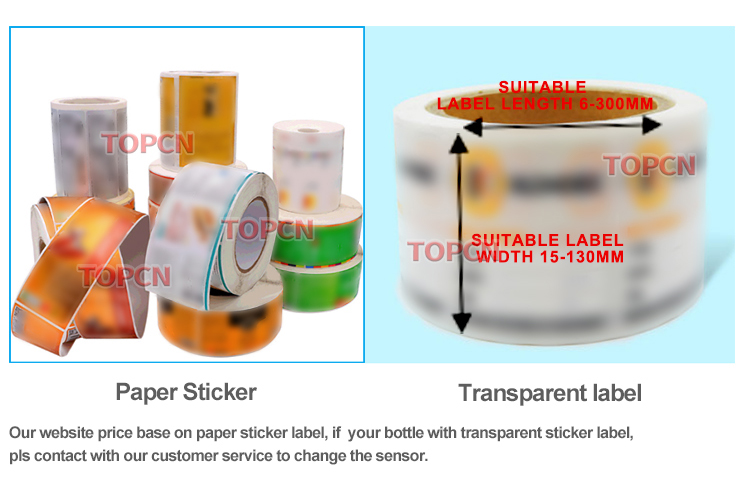

Label width

Max 130mm (adjustable)

Label roll

Inner diameterφ76 mm ,Outer diameter Max φ350mm

Precision

±1mm

Controlling system

SIMENS PLC + SIEMENS touch screen

Capacity

40-80pcs/min (adjustable)

Voltage

AC 220V,50/60Hz.

Compressed air

0.6-0.8MPa, 0.3CBM/min

Power

1.5 KW.

G.W.

380Kg.

Dimension

L2000 ×W950 ×H1850 mm

Features

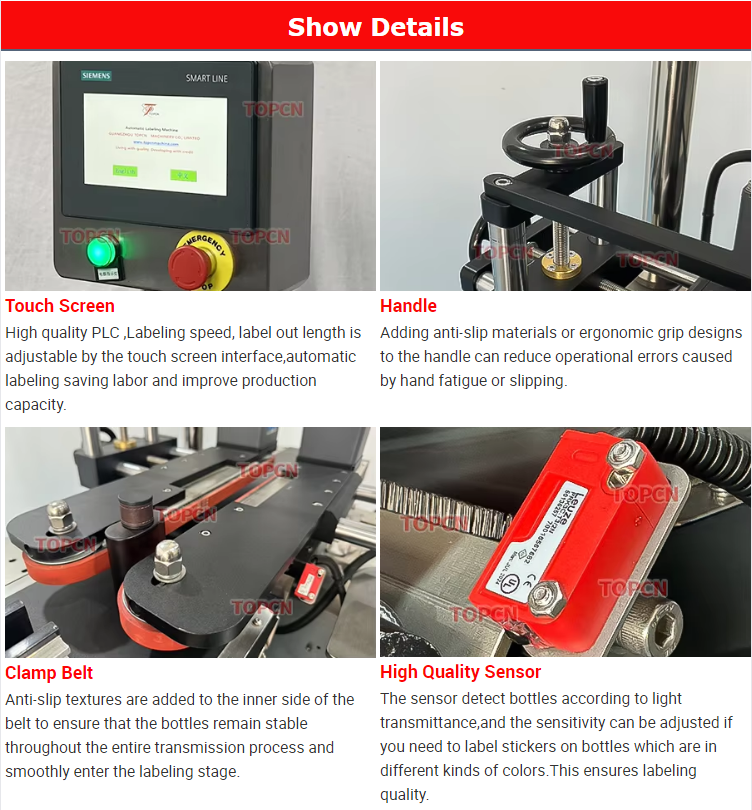

1. This machine adopts advance PLC + touch screen controlling system, easy to operate and calibrate;

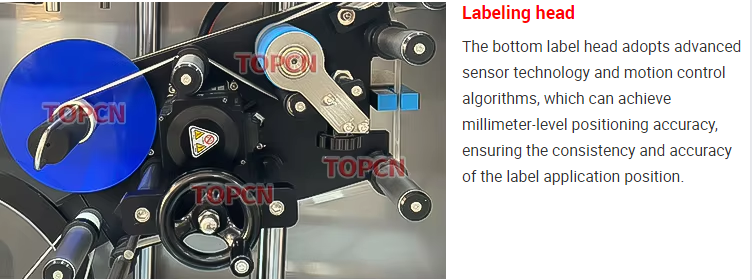

2. The labeling head adopts double press rollers structure, can apply with various pipes / tubes automatically, and avoid air bubble or wrinkle;

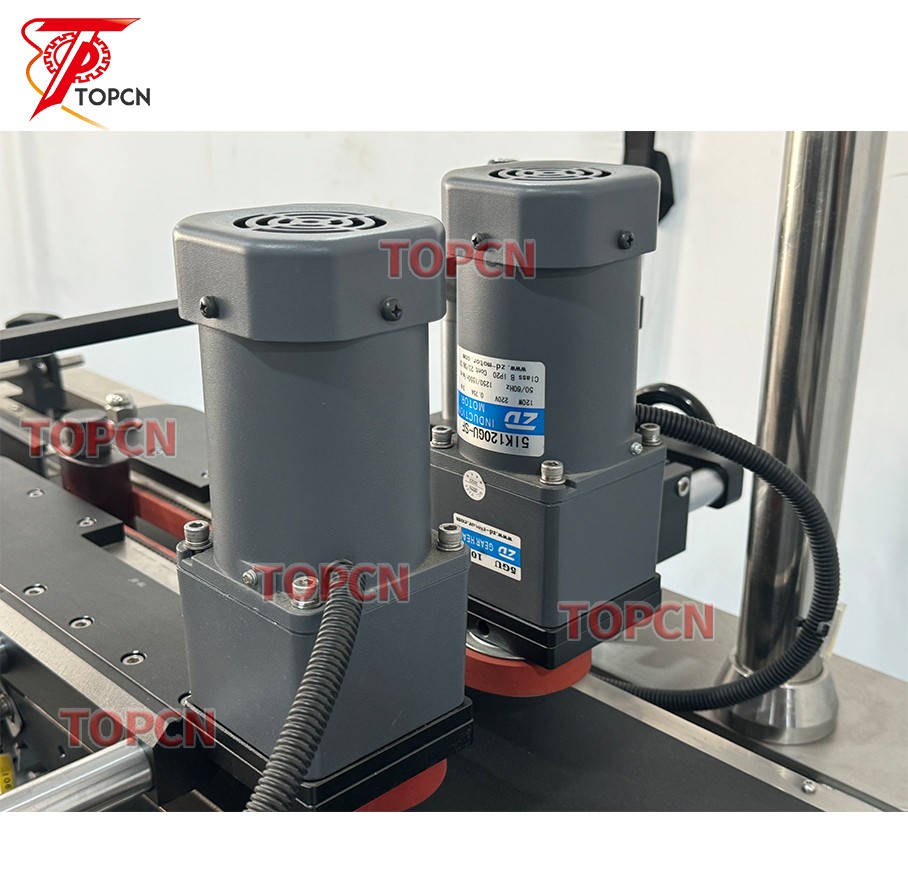

4. The labeling device adopts famous brand servo motor;
5. Special designed automatic pipes / tubes feeding structure with good stability;
6. Two times rolling and pressing the label, ensures the labels can be sticked on each pipe / tube firmly;
7. Made of stainless steel 304 and high class alloy, and dust-proof glass cover, clean and sanitary.

Function

This machine can be used to stick labels on various soft pipes or tubes, such as, eye gel, facial cream, skin care cream, paste, sauce, ketchup, jam, mustard, ointment, medicine paste, glue, shoes polishing oil, tooth paste, etc.
