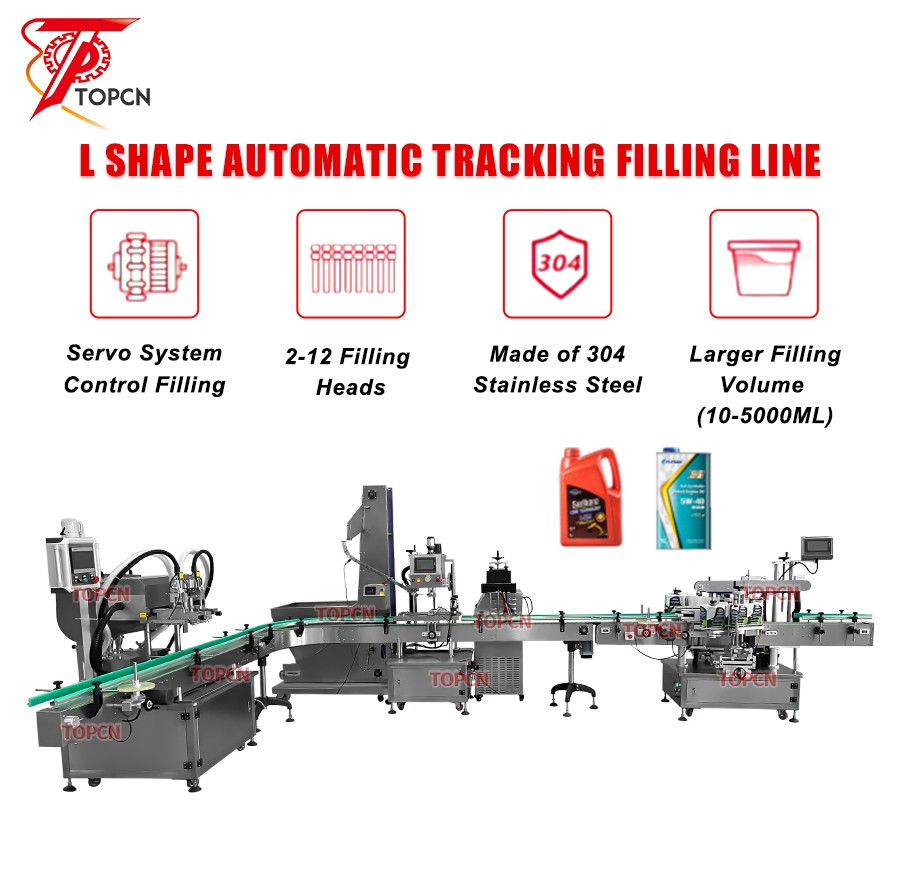

Full Filling Line Lubricant Oil Automatic Engine Oil Filling and Packing Machine Sunflower Oil Production Line Oily Line

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping

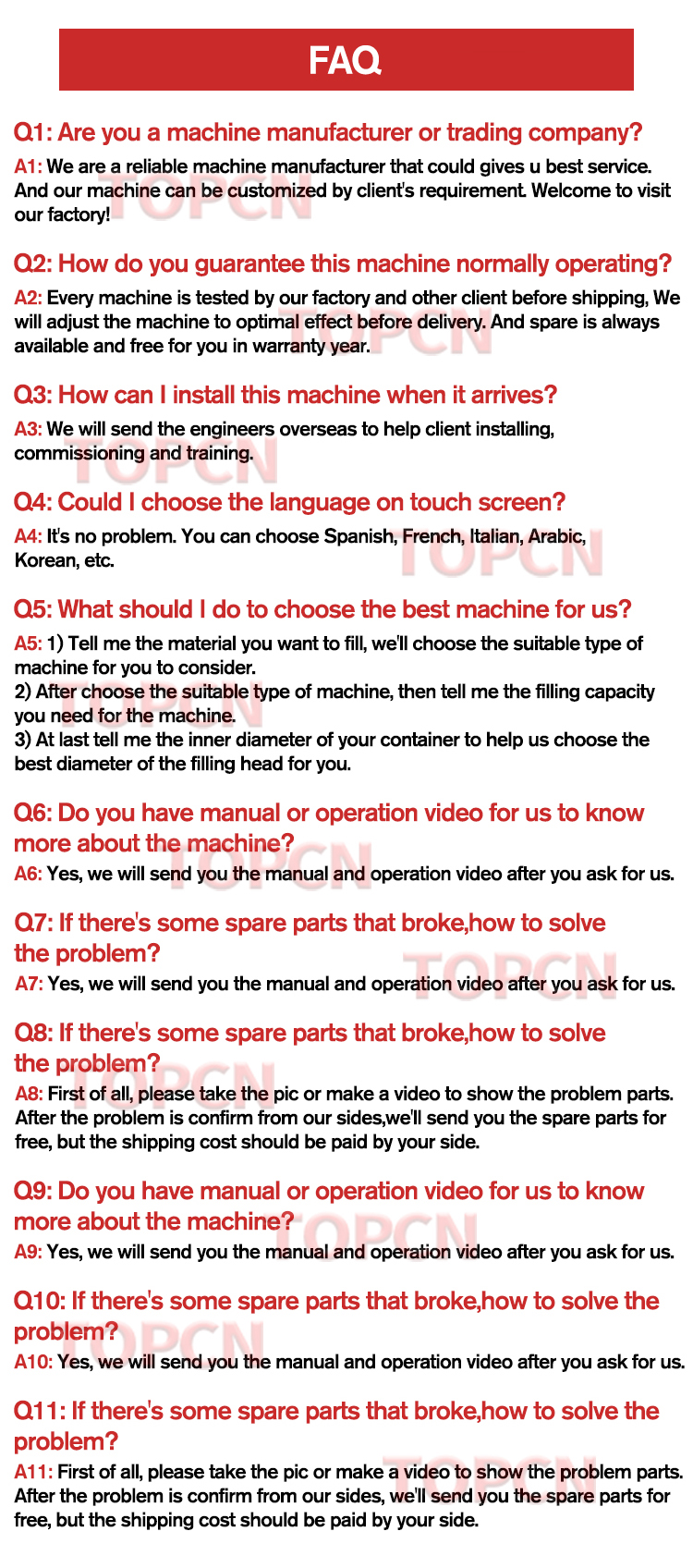

  • FAQ

Full Filling Line Lubricant Oil Automatic Engine Oil Filling and Packing Machine Sunflower Oil Production Line Oily Line

Full Filling Line Lubricant Oil Automatic Engine Oil Filling and Packing Machine Sunflower Oil Production Line Oily Line

Full Filling Line Lubricant Oil Automatic Engine Oil Filling and Packing Machine Sunflower Oil Production Line Oily Line

Full Filling Line Lubricant Oil Automatic Engine Oil Filling and Packing Machine Sunflower Oil Production Line Oily Line

Full Filling Line Lubricant Oil Automatic Engine Oil Filling and Packing Machine Sunflower Oil Production Line Oily Line

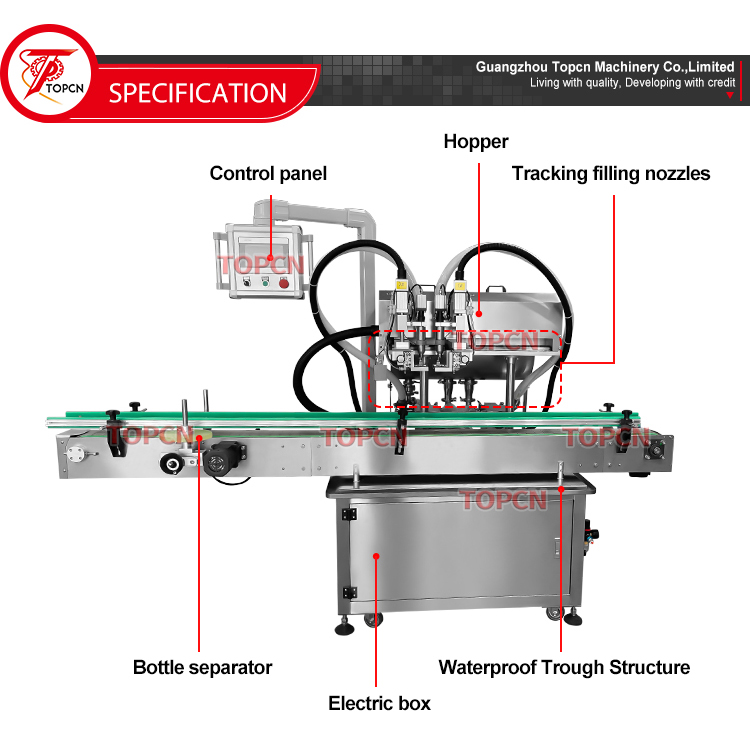

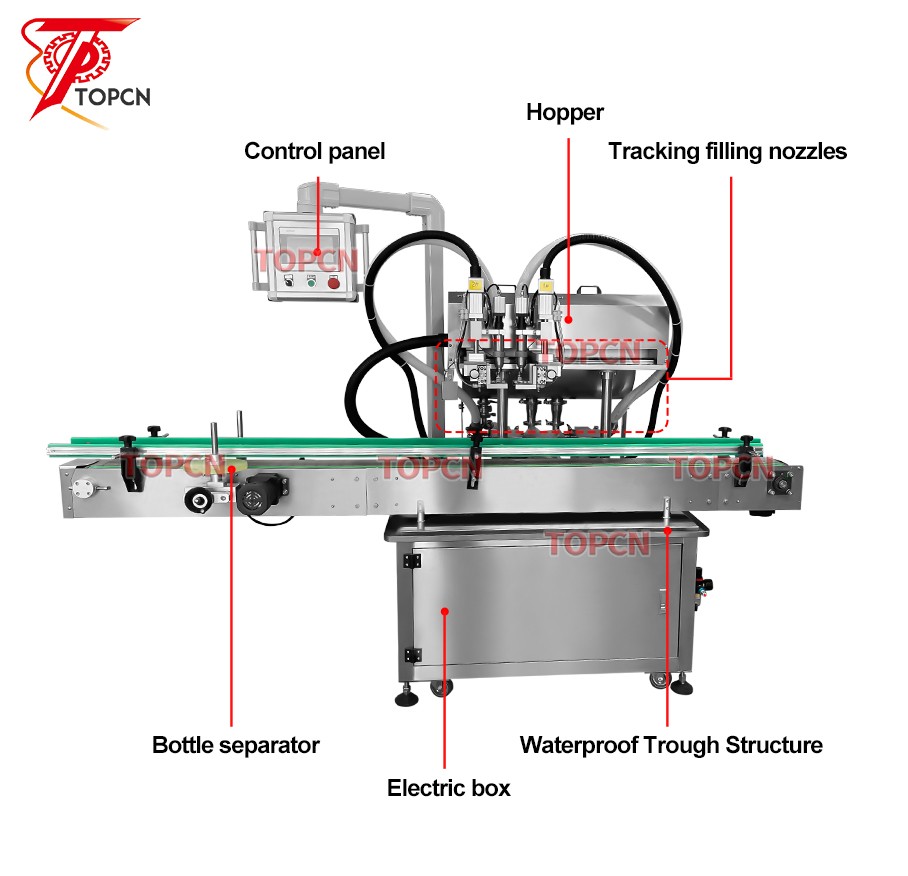

Machine model

TAFM-2GP

Filling nozzles

2-12 nozzles

Power supply

110/220V 50-60HZ 5KW

Filling pump

Gear Pump

Filling range

100-3000ml

Bottle size

H=80-180mm W=15-120mm

Working speed

About 20-80 bottles/min (2 heads)

Filling accuracy

About ±0.5%

Air pressure

About 0.5-0.8MPa

Machine size

About 2900*1400*1980mm(L*W*H)

Machine weight

About 390kg

Full Filling Line Lubricant Oil Automatic Engine Oil Filling and Packing Machine Sunflower Oil Production Line Oily Line

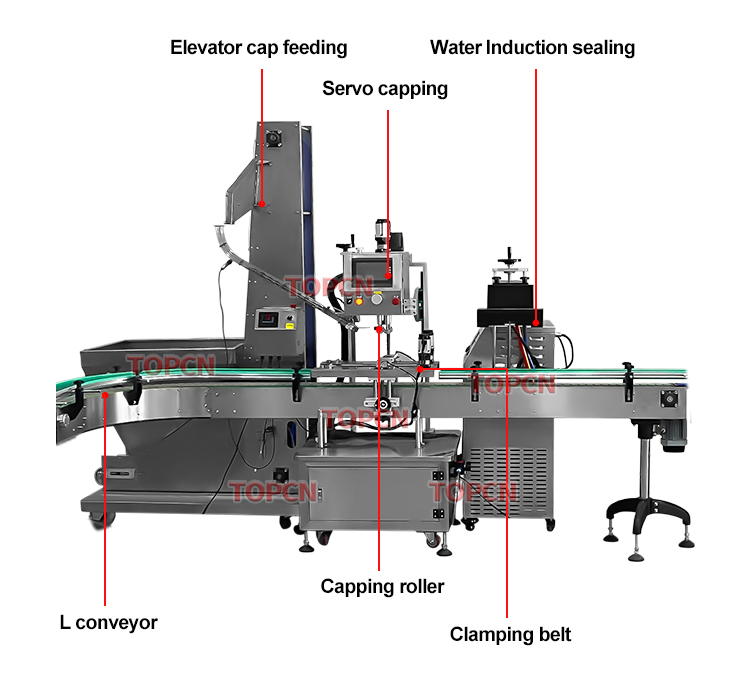

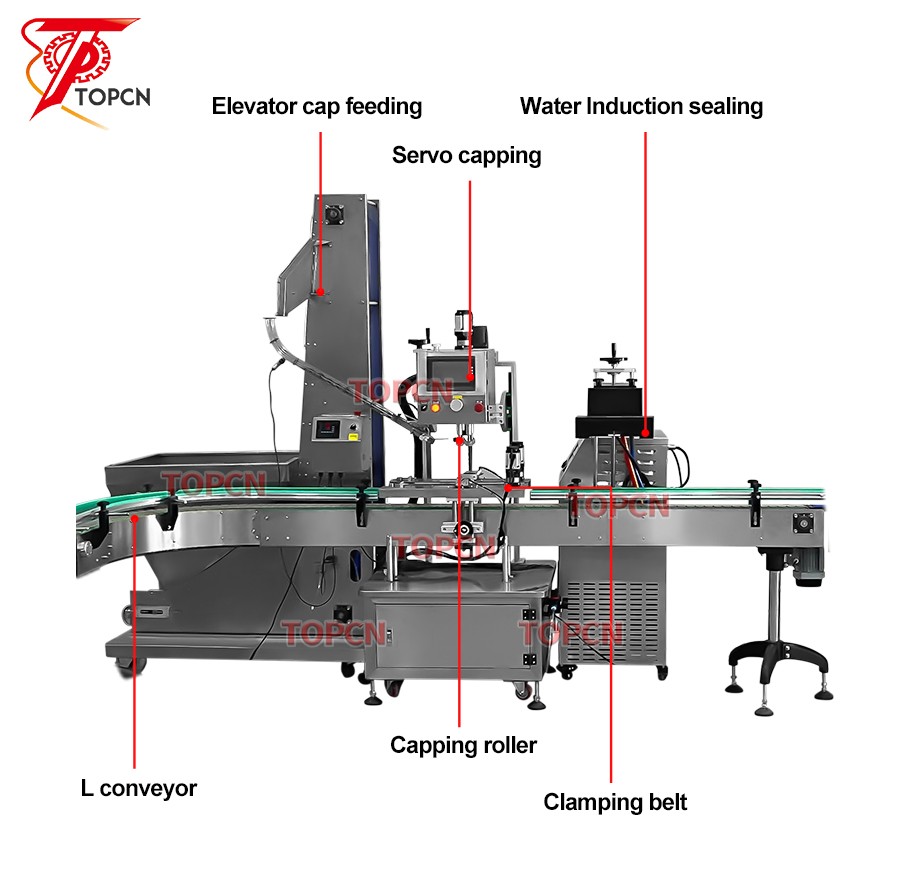

Machine model

TPCM-01S

Voltage

110/220V 50-60HZ 3KW

Working speed

20-40 bottles/min(based on product size)

Bottle height

About 80-300mm

Bottle caps diameter

About Φ20-65mm

Bottle caps height

Customized

Air pressure

0.4-0.6MPa

Machine size

About 3500*2000*2300mm

Machine weight

About 450kg

Package size

About 2100*770*1770mm (Main Machine)

About 2200*870*1430mm (Cap Elevator)

Package weight

About 286kg (Main Machine)

About 245kg (Cap Elevator)

Full Filling Line Lubricant Oil Automatic Engine Oil Filling and Packing Machine Sunflower Oil Production Line Oily Line

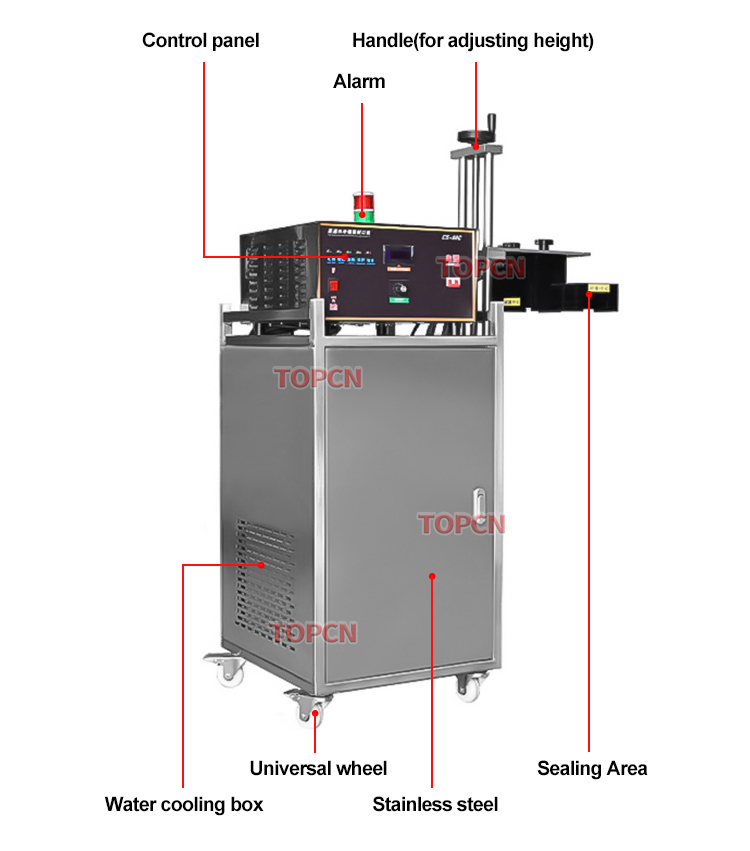

Machine model

TPDS-5

Voltage

220V 50Hz

Power

3.6kW

Sealing Speed

About 0-80 bottles/min

Sealing Diameter

15-60mm(Can be customized)

Sealing Height

50-335mm

Cooling Method

Water Cooling



Application

Suitable for normal bottles and sharp mouth bottles,plastic and glass bottles.Inapplicable for glass caps,metal bottles or metal caps.

Machine Size

About 707*950*1510mm

Packaging Size

About 660*790*1430mm

Net Weight/Gross Weight

About 76kg/106kg

Full Filling Line Lubricant Oil Automatic Engine Oil Filling and Packing Machine Sunflower Oil Production Line Oily Line

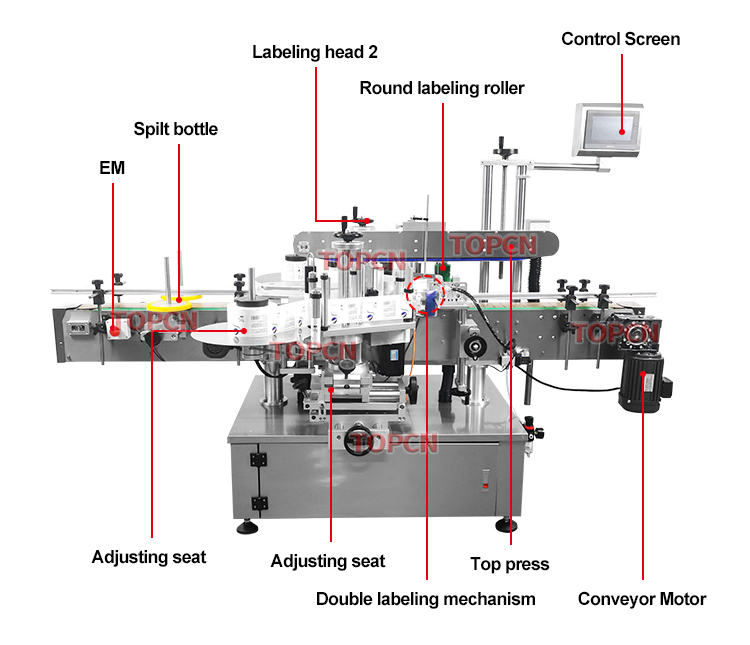

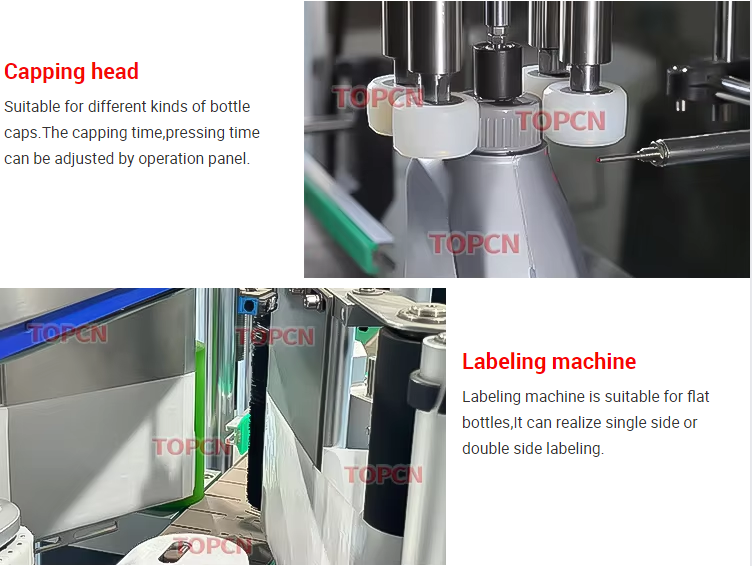

Machine model

TPLM-DS

Machine Power

110/220V 2500W

Working Speed

30-150 bottles/min(based on bottle size)

Labeling Accuracy

±1mm

Suitable Bottle Diameter

≤100mm

Suitable Labeling Object

W: 30-100mm; L:40-200mm; H:100-300mm

Suitable Label Size

25-200mm(L)*20-110mm(W)

Label Roll OD

≤Φ300mm

Label Roll ID

Φ76mm

Machine Size

About 235*127*155cm(L*W*H)

Machine Weight

About 389kg

Package Size

About 300*150*180cm(L*W*H)

Package Weight

About 450kg
