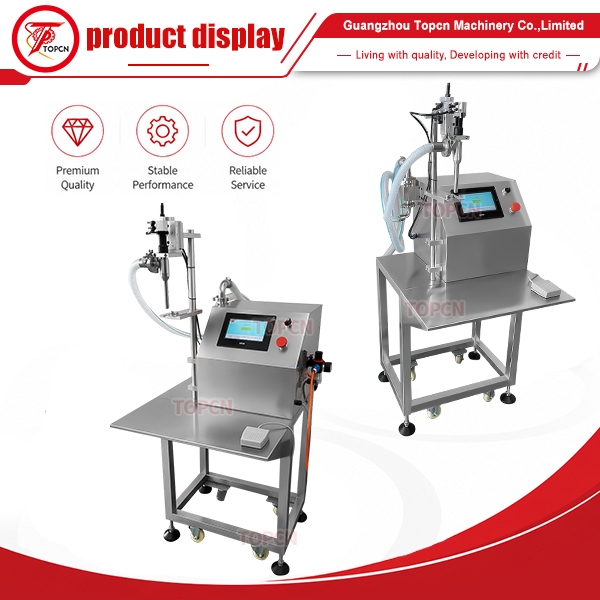

Semi Automatic Lotion Engine Oil Filling Machine
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

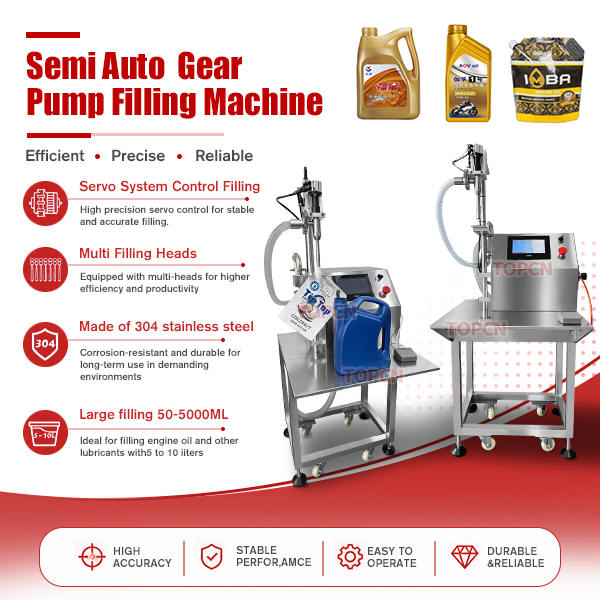

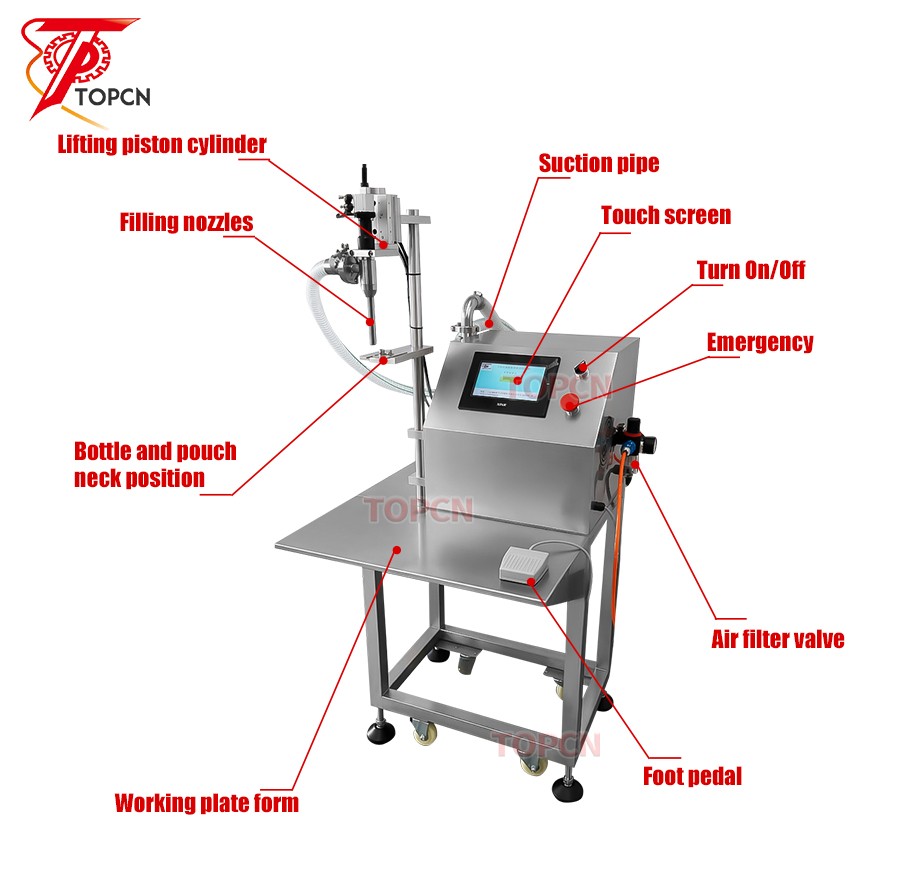

Controlled by servo motor,this semi automatic filling machine is suitable for filling thicker liquid like lotion,liquid soap,laundry detergent in bottle and stand pouch bag.The filling nozzle with lifting function. during the filling process and fill the material will not dripping out,it has faster filling speed and higher filling accuracy.

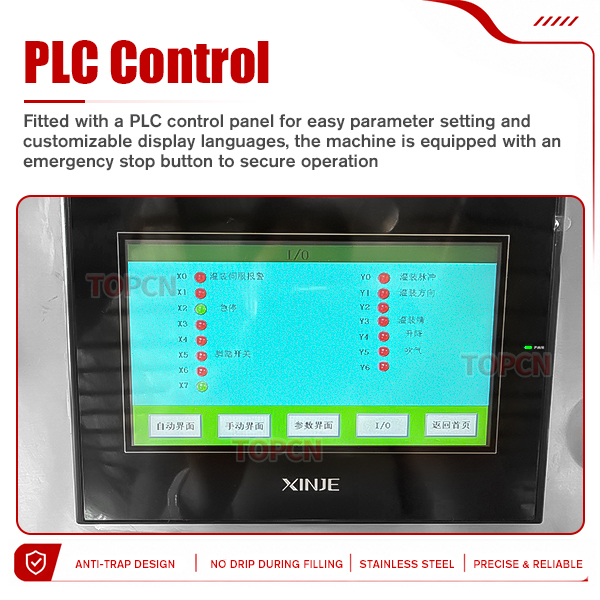

PLC Control
With PLC control panel, it is easy to set working parameters like filling speed.It is with an emergency stop button,ensuring a safe working environment.The language of control panel can be customized as needed.Please contact us if you need.

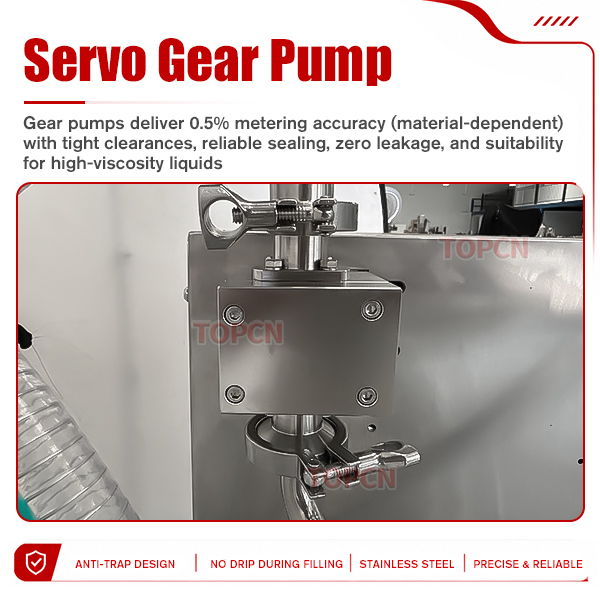

Servo Gear Pump
Gear pumps offer higher metering accuracy of 0.5% (depending on the material), with small operating clearances, excellent sealing performance, no displacement, and capability to fill highly viscous liquid

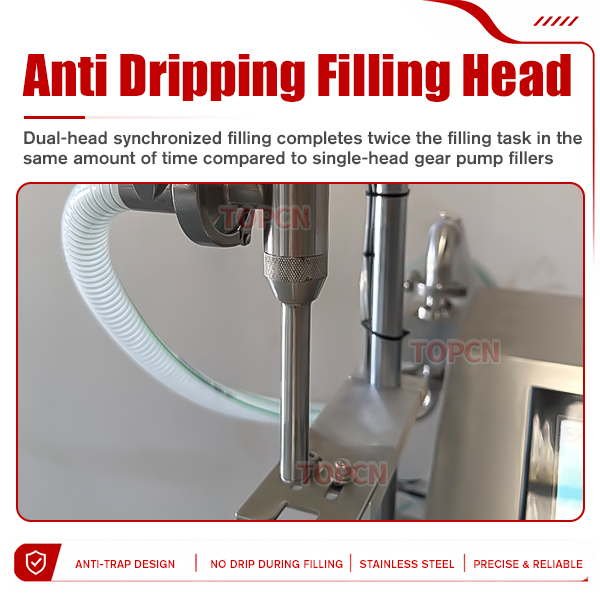

Anti Dripping Filling Head
Dual-head synchronized filling completes twice the filling task in the same amount of time compared to single-head gear pump fillers.

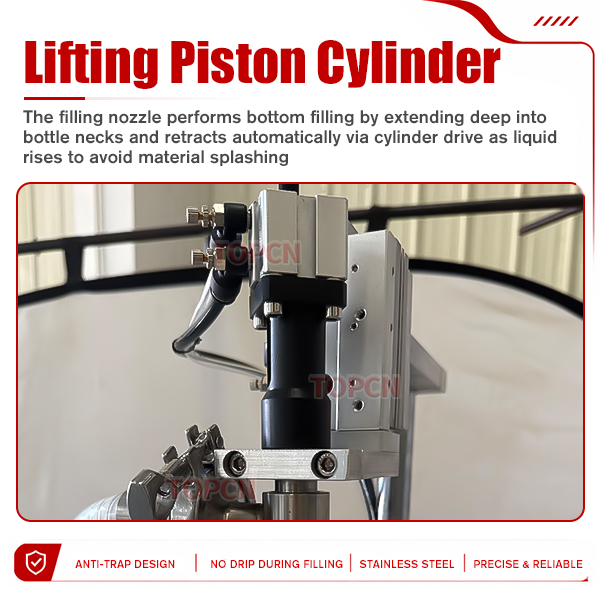

Lifting Piston Cylinder
The filling nozzle can extend into the inner side of the bottle opening to filling; when the liquid level approaches the bottle mouth, the cylinder drives the nozzle to automatically retract and exit the bottle opening, effectively preventing material splashing.

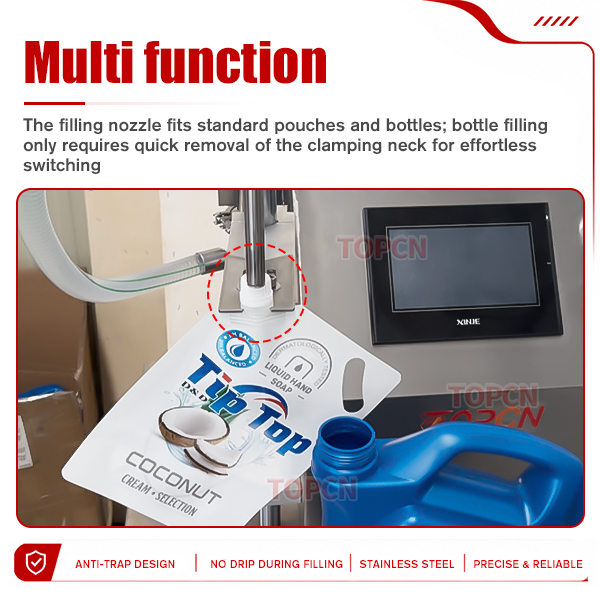

Multi function
The filling nozzle is compatible with both standard pouches and bottles. When filling bottles, simply remove the clamping neck—quick, easy, and hassle-free!

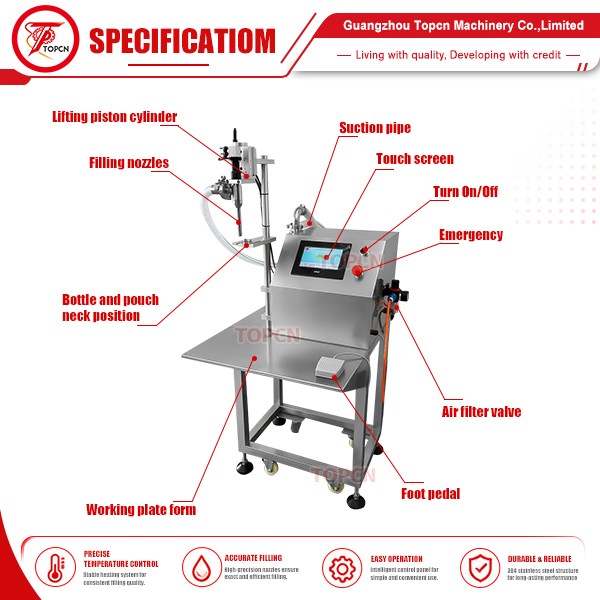

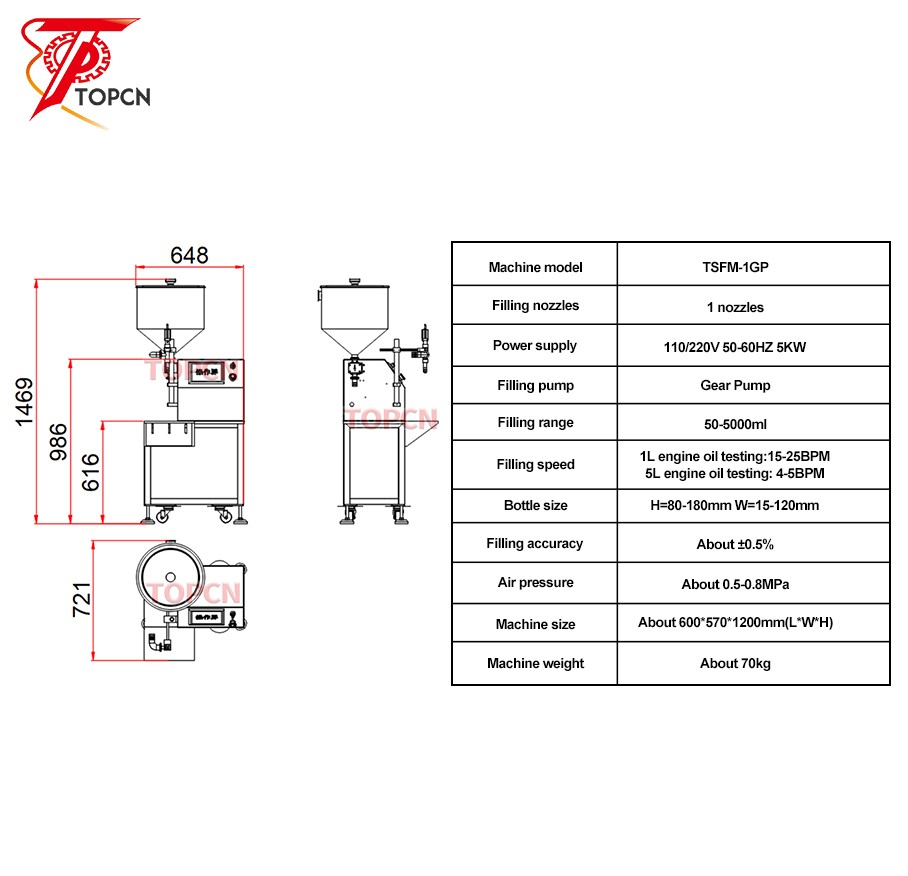

| Machine model | TSFM-1GP |
| Filling nozzles | 1 nozzles |
| Power supply | 110/220V 50-60HZ 5KW |
| Filling pump | Gear Pump |
| Filling range | 50-5000ml |
| Filling speed | 1L engine oil testing:15-25BPM5L engine oil testing: 4-5BPM |
| Bottle size | H=80-180mm W=15-120mm |
| Filling accuracy | About ±0.5% |
| Air pressure | About 0.5-0.8MPa |
| Machine size | About 600*570*1200mm(L*W*H) |
| Machine weight | About 70kg |
Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!
Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.
Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,.
Q5: What should I do to choose the best machine for us?
A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q6: Do you have manual or operation video for us to know more about the machine?
A6: Yes, we will send you the manual and operation video after you ask for us.
Q7: If there's some spare parts that broke, how to solve the problem?
A7: Yes, we will send you the manual and operation video after you ask for us.
Q8: If there's some spare parts that broke, how to solve the problem?
A8: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
Q9: Do you have manual or operation video for us to know more about the machine?
A9: Yes, we will send you the manual and operation video after you ask for us.
Q10: If there's some spare parts that broke, how to solve the problem?
A10: Yes, we will send you the manual and operation video after you ask for us.
Q11: If there's some spare parts that broke, how to solve the problem?
A11: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
- Manufacturer china two heads pneumatic semi automatic mineral water liquid filling machine
- Multi Head 20L 30L 5 Gallon Big Drum Bucket Pail Plastic Barrel Coating Paint Oil Cement Glue Weighing Filling Packaging Machine
- Perfume Filling Machine
- Small pneumatic semi automatic cream paste filling machine with hopper
- 5-20 Liters Liquid Filling Machinery Chemical Oil Fill Semi-automatic Weighing Filling Machine For Liquid
- TSFM-1504 Electric Digital Control Pump Filling Machine

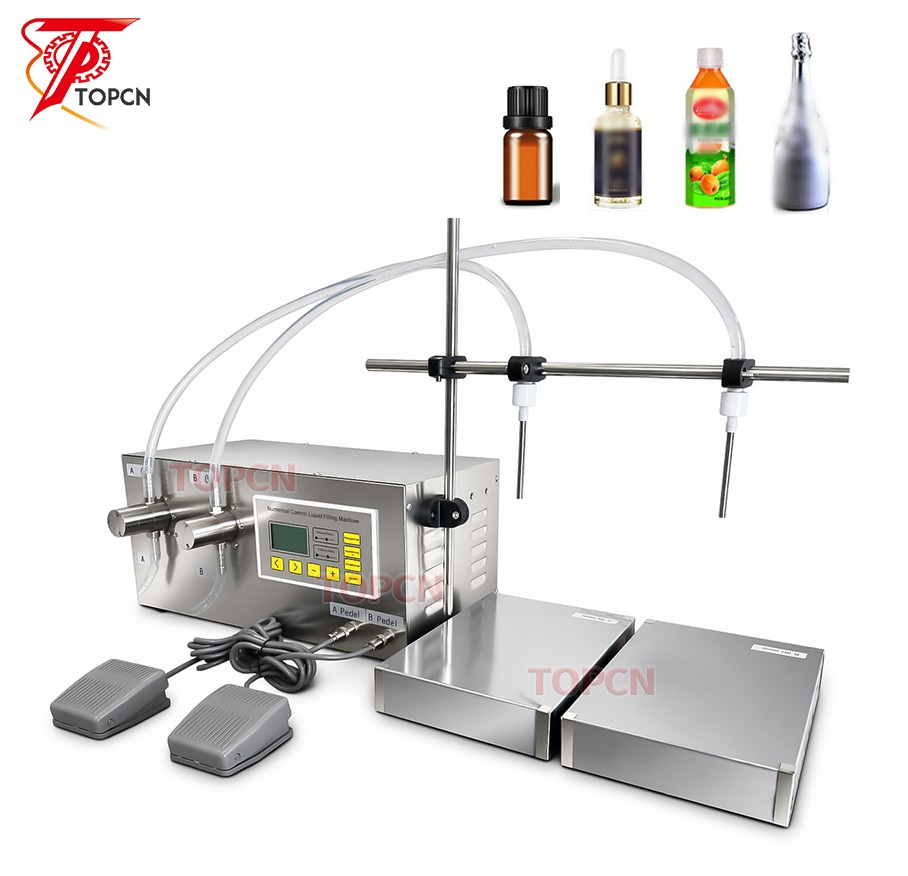

- Semi Automatic Desktop Oil Bottle Weighing Filling Machine
