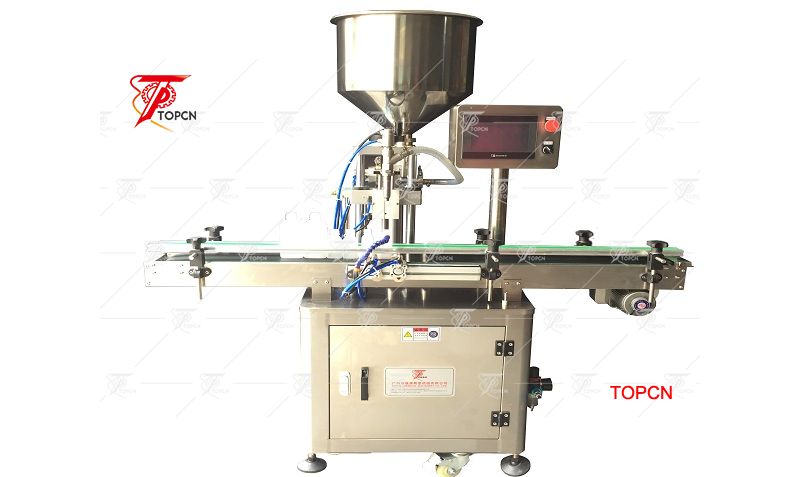

Single head Automatic plastic bottle 10-250ml pneumatic liquid cream filling machine has 1 filling nozzle. This Machine adopts serve ball-screw system to drive the piston cylinder. It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc.

1. TSFM01 pnuematic filling machines are controlled by compressed air, so they are suitable in explosion-resistant or moist environments;
2. Because of the pneumatic controls and mechanical positioning, this bottle filling machine has a high filling accuracy;
3. The filling machine filling volume is adjusted by PLC
4. When you need to stop the semi automatic liquid filling machine in an emergency, push the URGENT button;
Self suction liquid filling machine piston will go back to its initial location and the filling will be stopped immediately;
5. Automatic plastic bottle 10-250ml pneumatic liquid cream filling machine for you to choose--Manual and Automatic;
6. Automatic plastic bottle 10-250ml pneumatic filling machine Filling precision: ±1%.

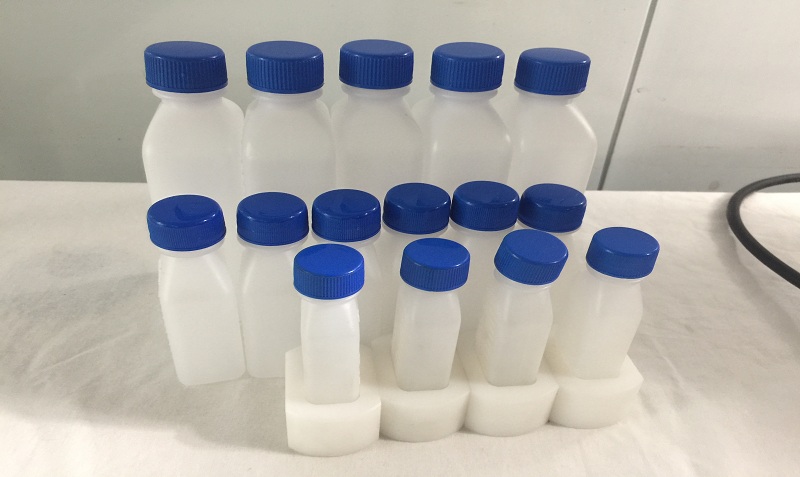

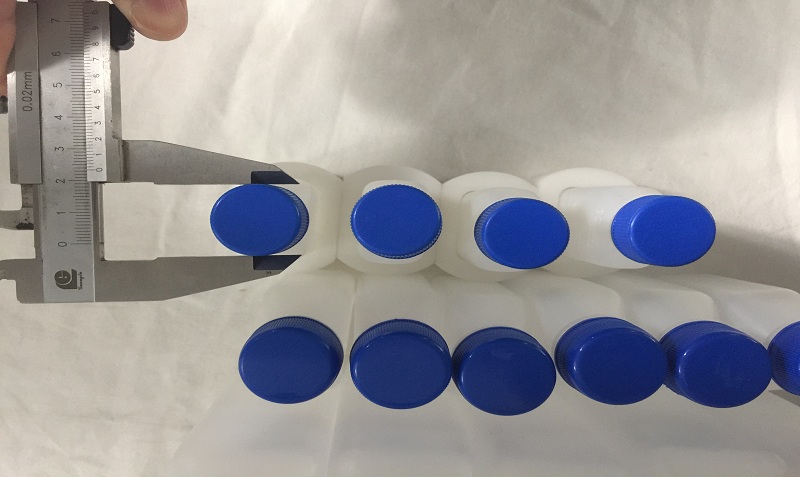

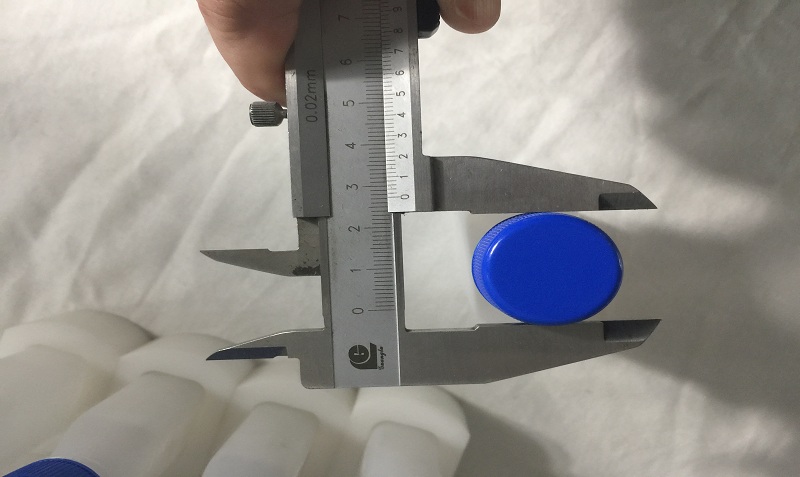

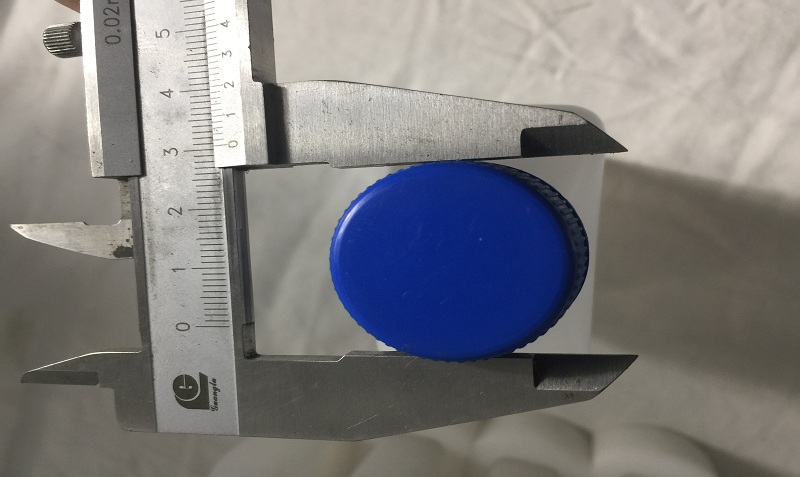

This automatic pneumatic filling machine has three size, the smallest bottle is too light and unable to good running on the conveyor, so make the bottle mold as picture

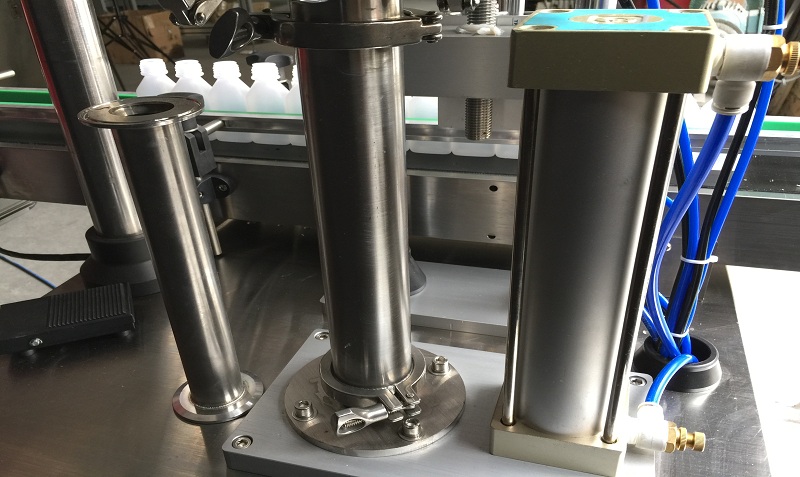

This cream filling machine filling rang is 10-250ml, but standard 250ml cylinder filling rang only 25-250ml, so we equiped two material cylinder for customer for filling range from 25-250ml.

when filling 10-120ml material, customer just exchange the smaller material cylinder is ok

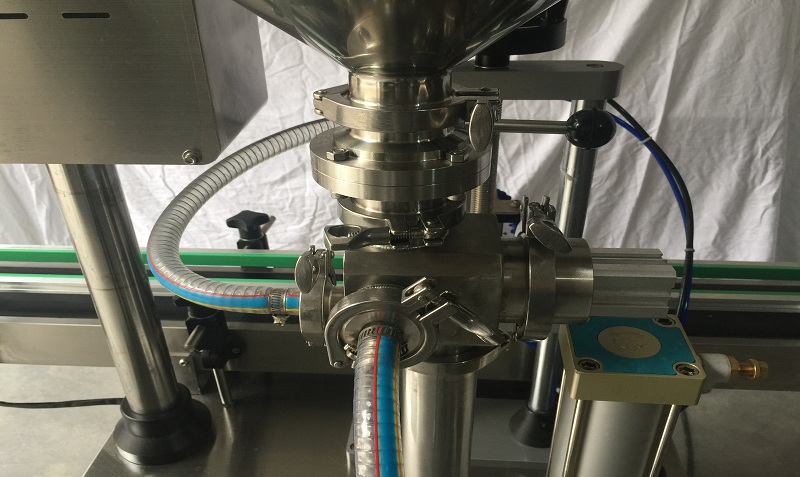

customer asked this liquid filling machine must with hopper to filling, we updated three way valve to butter valve which not need take away the hopper.

also machine with manual and automatic models as customer requirement, details introduction as below:

60CC Automatic Pneumatic Liquid Filling Machine Testing Video Before Dedivlery to Tai Regular Custom

240CC Automatic Puemtaic Cream Paste Filling Equipment with Hopper Testing Video Before Dedivlery

How to Adjust Bottle Right Postition with Sensor for Defferent Bottle Size

How to adjust  Automatic pneumatic cream filling machine machine when liquid material pouring out

1. DELIVERY LEAD TIME:

5-7 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT

2. TERMS OF PAYMENT

BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT

3. PRICE VALID UNTIL

30 DAYS.

4. PACKING:WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT

5. PORT OF SHIPMENT

GUANGZHOU or SHENZHEN PORT
