12 Nozzle Lipstick Filling Machine, Lipstick Making Machines applies to fill cosmetics, such as mascara, generic lipstick, pen type lipstick, large plastic pen, small pen, fine shape lipstick, foundation stick, lip balm, lip gloss etc. The materials which including glitter powder and pearl us available to fill as well.

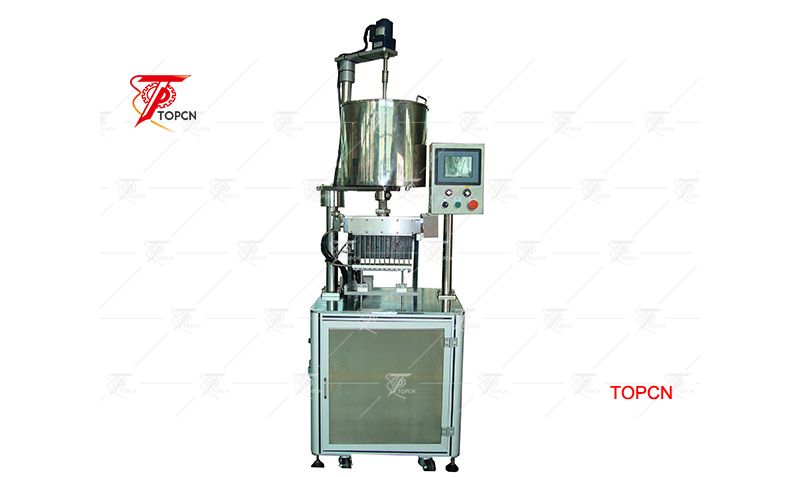

Lipstick Filling Machine

L 20L heating tank adopts dual/trip jacket layer design, temp& mixing speed is adjustable.

l  Fill 6,10 or 12pcs one time by 6, 10 or 12 nozzles.

l  Piston filling system is driven by servo motor and numerical control.

l Rotary Valve is driven by cylinder.

l  Stirring device is driven by motor.

l  Mould lifting function is driven by Servo Motor.

l  Colors man-machine touch panel interface and omnibearing numerical control. Operation is easy and precise.

l  Filling precision is ±0.1g.

l  Can fill irregularity bottles.


Lipstick making machine most commonly applicable for cosmetics, such as lipstick, lip balm, pen type lipstick etc.
1. lipstick machine

2. lip balm filling machine

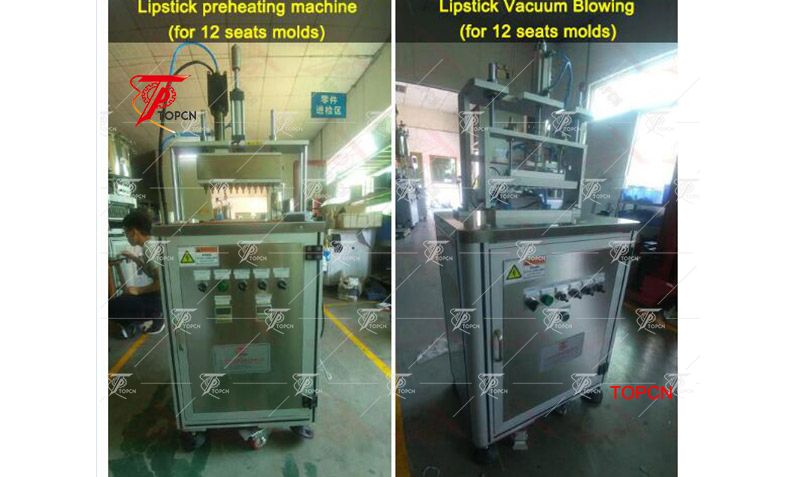

Lipstick preheating machine (for 12 seats molds)

Lifting CylinderControl the heat blower system to move up and down
Heat GunHeat Device
Control Panel

A. Power Switch:control Power On/Off

B. Lifting Cylinder(Manual/Auto): turn to Manual mode to adjust the position of Heat Gun when changing the mold. After finish the setting, turn to Auto mode to run the machine automatically.

C. Delay to move down: the time Setting of delay the Heat Gun to move down. To avoid the machine hurt the hand of operator, the heat gun should not move down when change the mold, so have to set a delay time to ensure safety in production. Delay time could be set base on the time of operator change the mold.

D. Heating up time: the time setting of heating up mold.

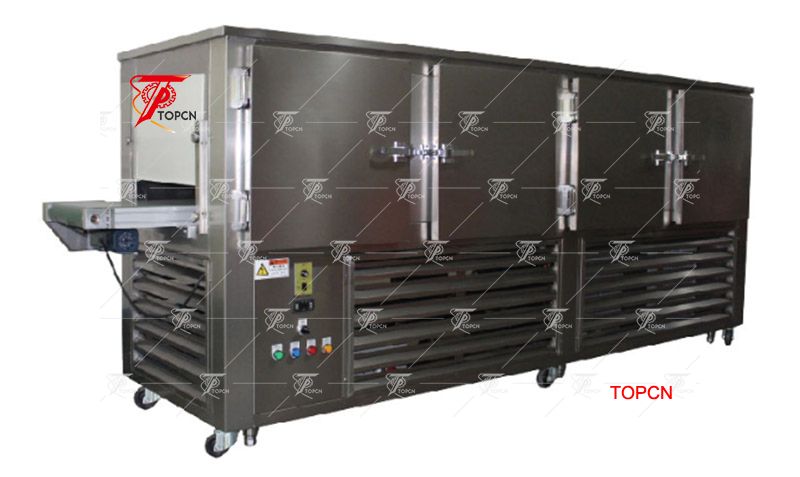

Cooling Machine(7.5Hp)

Power Consumption7.5Hp
PowerAC380V/1ψ/50HZ
Number of Machine Door4
ConveyorL3500*W2500*H1200mm
Conveyor Belt Traveling Speed800mm/min
Cooling timeabout 3-4 minutes
Blow TypeDownward blow
Material of Machine Stainless SteelSUS304
Cooling -15℃


Lipstick Vacuum Blowing (for 12 seats molds)

Capacity30-50 lipsticks/min (depend on the mold type)
TypesSoft rubber mold by vacuum
Dimensions650*520*1500(mm)
Body materialT651+SUS304
VoltageAC220V/50Hz
Weight70kg
Operation1 operator



Lipstick Filling Machine

1. DELIVERY LEAD TIME:

30-50WORKING DAYS AFTER RECEIVED DEPOSIT.

2. TERMS OF PAYMENT:

BY 30% IN ANVANCED, THE BALANCE 70% BY T/T BEFORE SHIPMENT.

3. PRICE VALID UNTIL:

15-20DAYS.

4. PACKING:

WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT.

5. PORT OF SHIPMENT:

GUANGZHOU or SHENZHEN PORT.

Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!
Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.
Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,.
Q5: What should I do to choose the best machine for us?
A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q6: Do you have manual or operation video for us to know more about the machine?
A6: Yes, we will send you the manual and operation video after you ask for us.
Q7: If there's some spare parts that broke,how to solve the problem?
A7: Yes, we will send you the manual and operation video after you ask for us.
Q8: If there's some spare parts that broke,how to solve the problem?
A8: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides,we'll send you the spare parts for free, but the shipping cost should be paid by your side.
Q9: Do you have manual or operation video for us to know more about the machine?
A9: Yes, we will send you the manual and operation video after you ask for us.
Q10: If there's some spare parts that broke,how to solve the problem?
A10: Yes, we will send you the manual and operation video after you ask for us.
Q11: If there's some spare parts that broke,how to solve the problem?
A11: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
