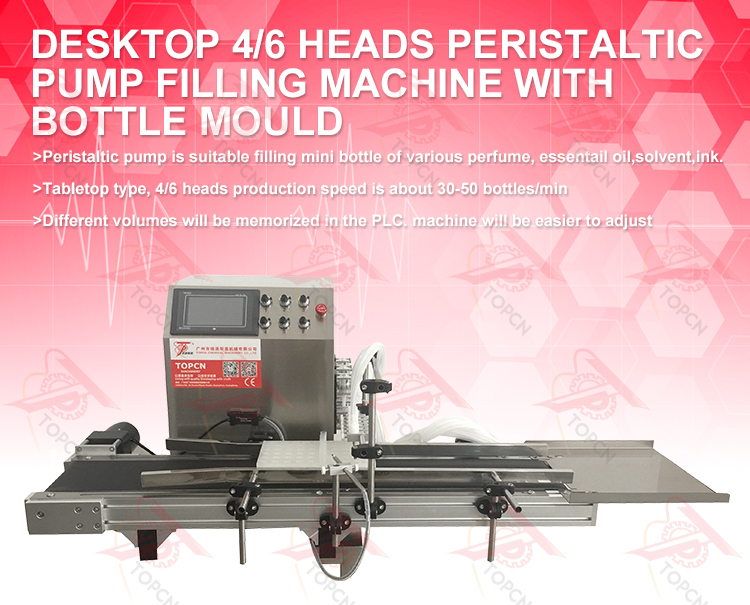

TAFM-609 Automatic peristaltic pump filling machine with bottle mould tray

Application
Description
Products Parameters
Video
Package&Shipping
FAQ

Application
Liquid products like perfume, ink, E-liquid, solvents, juice(50%), essential oil bottle range from 2-50ml by this model. As the liquid not go through the pump, customer only need change the tubes for different favor material.
This machine also can be used to filling corrosive liquid (change the standard tube into fluorine rubber tube)

Desktop full automatic machine is very efficient with high cost performance. It is widely used in medicine, daily chemical and other industries such as essential oils, perfumes, juice liquid etc. Machine with peristaltic pump is easy to change tube. Liquid won't pass through the pump. It is good choice for strong corrosive liquid such as biological liquid, eye drops, sulfuric acid, hydrochloric acid, disinfectant, etc. To replace with fluorine rubber tubes, it can also use to essential oils, solvents, etc.

Specification

Voltage	AC110V/220V 50Hz-60Hz
Power	15W (Each Pump)
Recommended filling volume	2-50ml
Maximum Flow	600ml/min for each nozzle (based on water)
Filling Nozzles	4/6 (we can customize the nozzles based on your demands)
Working Speed	30-50 bottles/min(based on bottles and liquids)
Air Pressure	No need air compressor, electric driving.
Filling Accuracy	土1% (for water)
Dimension Of Filling Nozzle	standard 8mm and 6mm
Delay Range	0.01s-999.9s
Belt Length	105mm
Size Of Air Compressor Connector	OD8mm
Bottle Height	c

TAFM-609 Automatic peristaltic pump filling machine with bottle mould tray

FAQ

Q1: Are you a machine manufacturer or trading company?A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!Q2: How do you guarantee this machine normally operating?A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q3: How can I install this machine when it arrives?A3: We will send the engineers overseas to help client installing, commissioning and training.
Q4: Could I choose the language on touch screen?A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,.
Q5: What should I do to choose the best machine for us?A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q6: Do you have manual or operation video for us to know more about the machine?A6: Yes, we will send you the manual and operation video after you ask for us.
Q7: If there's some spare parts that broke, how to solve the problem?A7: Yes, we will send you the manual and operation video after you ask for us.
Q8: If there's some spare parts that broke, how to solve the problem?A8: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
Q9: Do you have manual or operation video for us to know more about the machine?A9: Yes, we will send you the manual and operation video after you ask for us.
Q10: If there's some spare parts that broke, how to solve the problem?A10: Yes, we will send you the manual and operation video after you ask for us.
Q11: If there's some spare parts that broke, how to solve the problem?
A11: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
