Automatic Auger Tea Powder Chemical Dry Powder Bottle Filling Machine Powder Packaging Machine

Product Application

Suitable for food, medicine, biology, chemical industry and so on.Such as dry powder,coffee powder, veterinary drugs, powder granular additives, sugar, glucose, monosodium glutamate, solid drinks, solid medicine, carbon powder, powder, pesticides, dyes, flavors, etc.

Features

1.Made of stainless steel 304, meet GMP standard

2.Servo control auger, more stable and accuracy -Step motor can be economical customized

3.PLC+ Touch screen control, English version interface

4.Electric scale or load cell connect with touch screen for weight feedback, machine can be used by weight or by volume according the user need

5.Same material same screw ,once 1 spec parameter item preset ,  just change the target weight on work page then inner item like the fast filling weight , slow filling weight and mini weight value will be change automatically

6.Changing the auger attachment, it fits for lots of material ranging from fine-powder to granule.

7.Top Hopper equipped with level sensor to control the feeding machine work automatically

8.Foot Pedal control filling

9.50L Hopper can be half open and it more easy for screw change or inner wall cleaning

10.Stand pole of filler is in round shape. All parts like the electric cabinet  ,touch screen box ,bag clamber or scale frame etc fixed on it easily by metal clamber .

11.Material entrance and dust exit on both side of auger filler .it can be changeable so feeder can be placed from different side according user workshop situation.

12.Insider mixing blade can be adjustable by bolts to match different size screw to assure the accuracy when packing

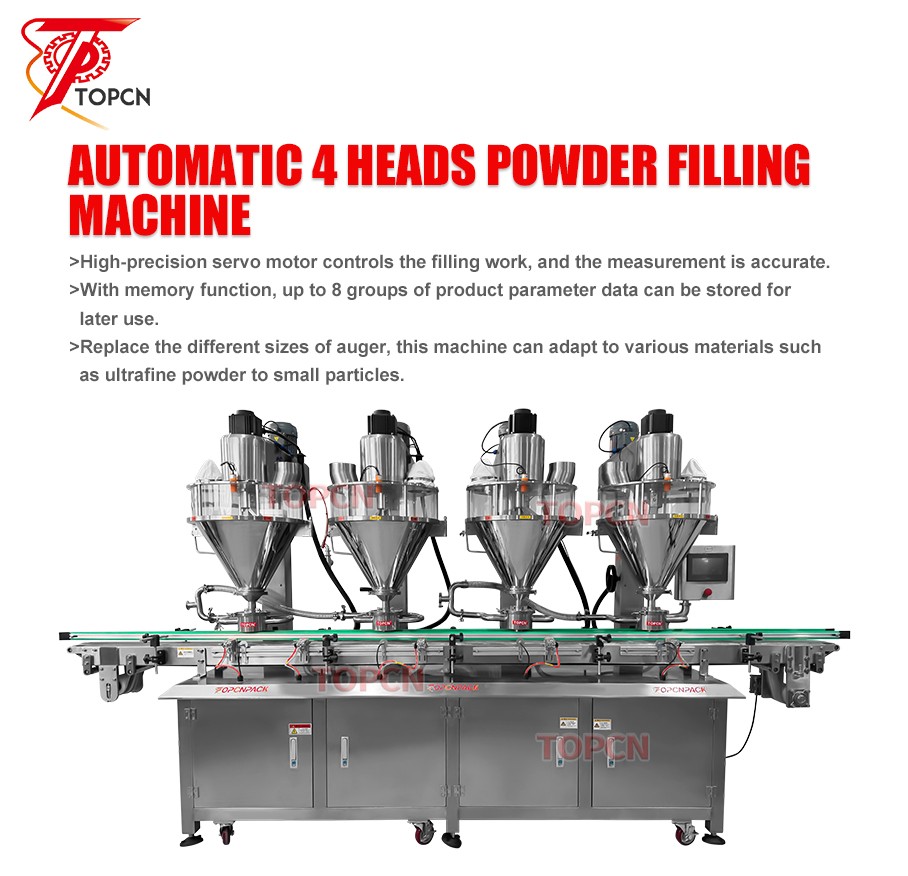

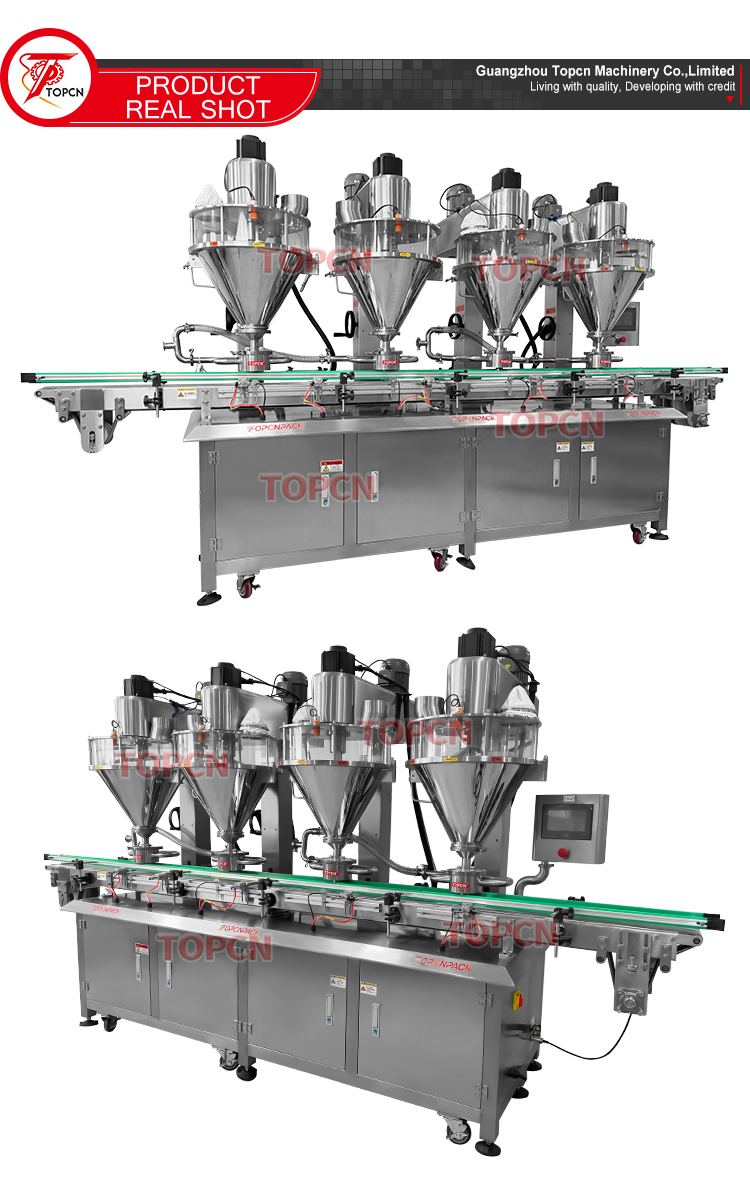

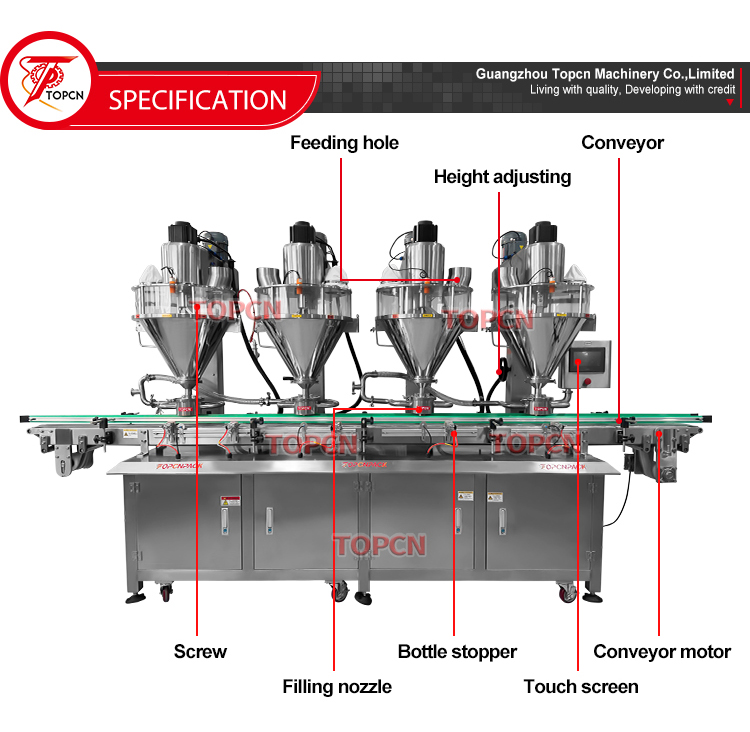

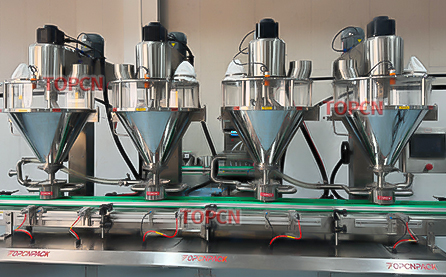

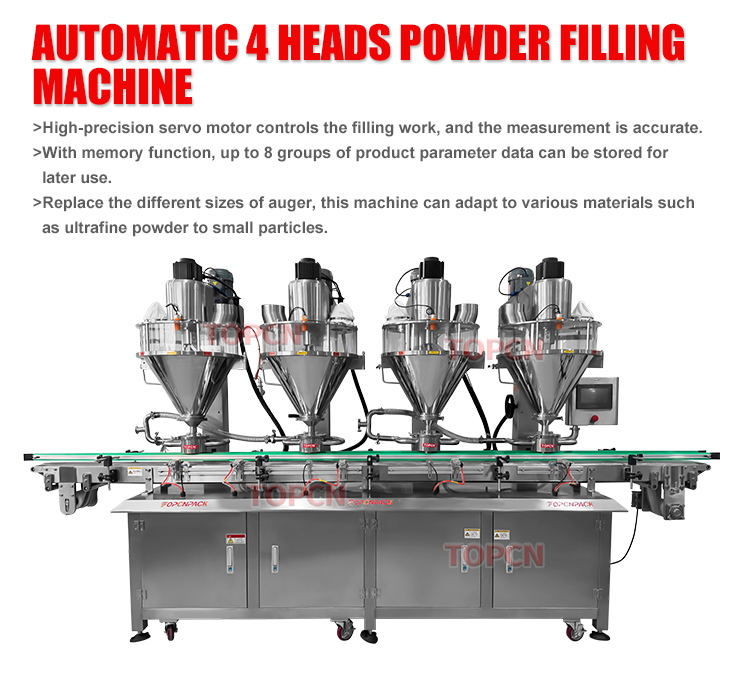

4 Filling Heads

Four filling heads can operate simultaneously to enable multi-channel parallel filling, while each head can be independently controlled to ensure precise dosage and operational flexibility.

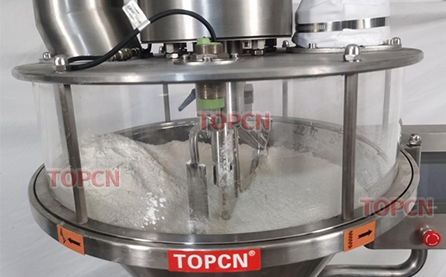

Screws and Mixers

Transparent viewing window, clean and see the material capacity of the hopper. It can be used for filling 10-5000 gram powder by replacing the screw.

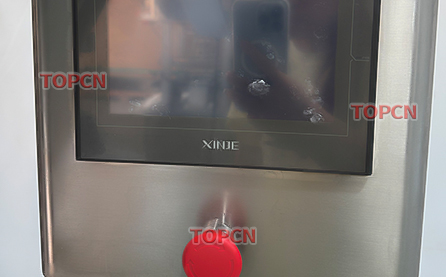

Control Panel

Touch screen control panel, easy to adjust various filling parameters. The PLC control system makes the machine work more stable.

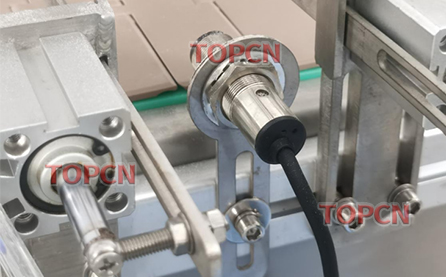

Bottle Sensor

Can sense the bottles and send the signal back to the system, make sure machine filling accurately and not miss any bottles.

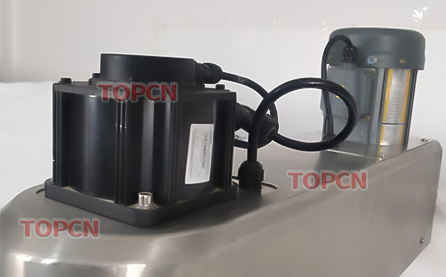

Double Motors

The mixer is driven by a high-power motor, the feeding screw is driven by a high-precision motor, and the filling accuracy is ±1%.

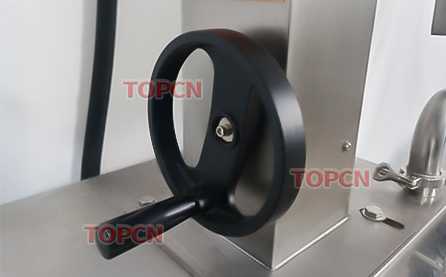

Height adjusting wheel

The height of filling nozzles can be adjusted according to bottle size,multiple filling nozzle can be customized according to production need.Multiple filling nozzles can help you improve production efficiency greatly.

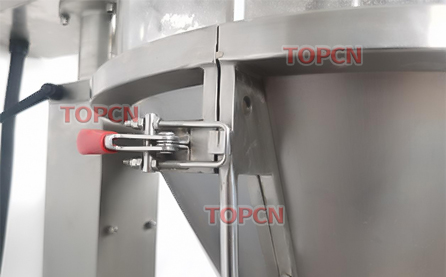

Level split hopper

It is very easy to open hopper anddo cleaning.

Main Features

1) The whole machine is mainly made of stainless steel 304.

2) Hanging type hopper, easy to remove and wash without tools.

3) Servo motor control, electronics switch control, packaging containers unlimited (bags, cans, bottles can be).

4) Can be equipped with feeding machine automatically control material level, more convenient to use, at the same time reduce labor costs, improve production efficiency.
