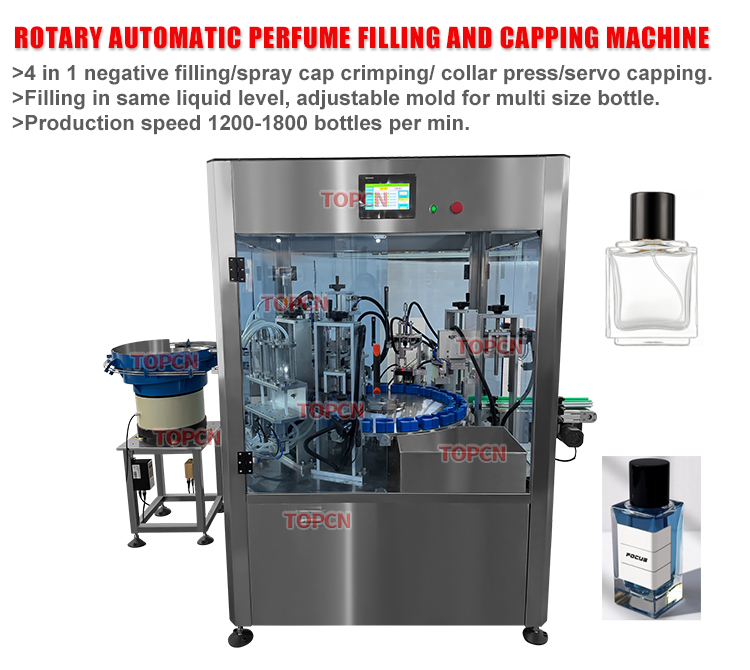

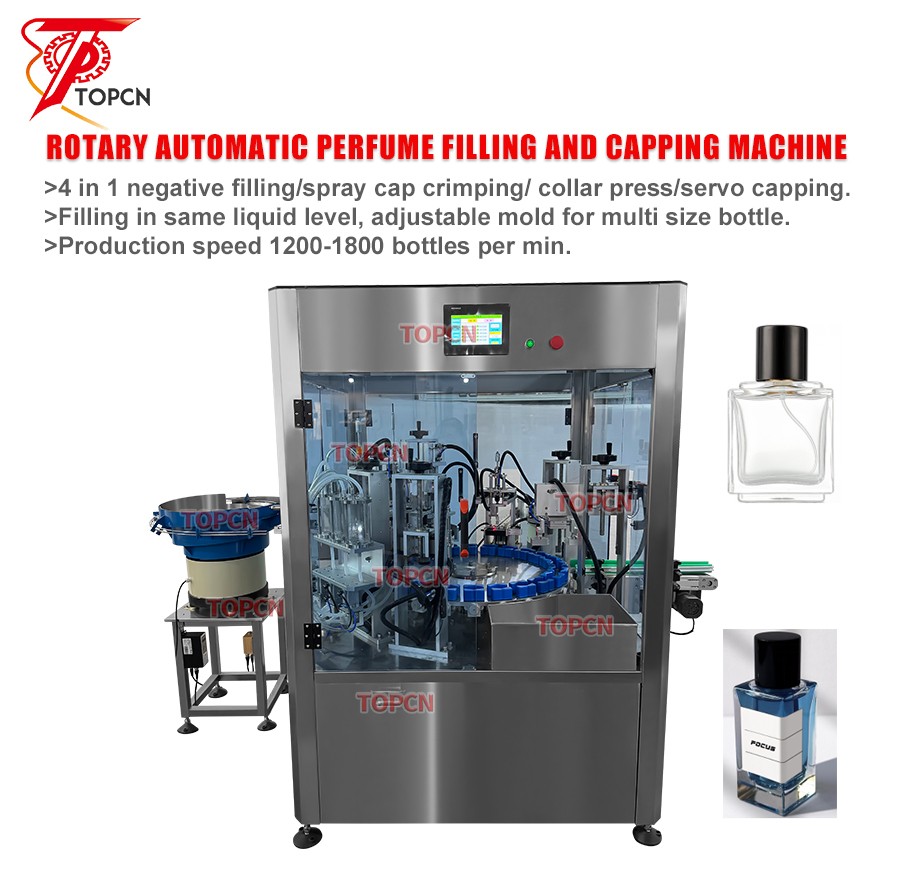

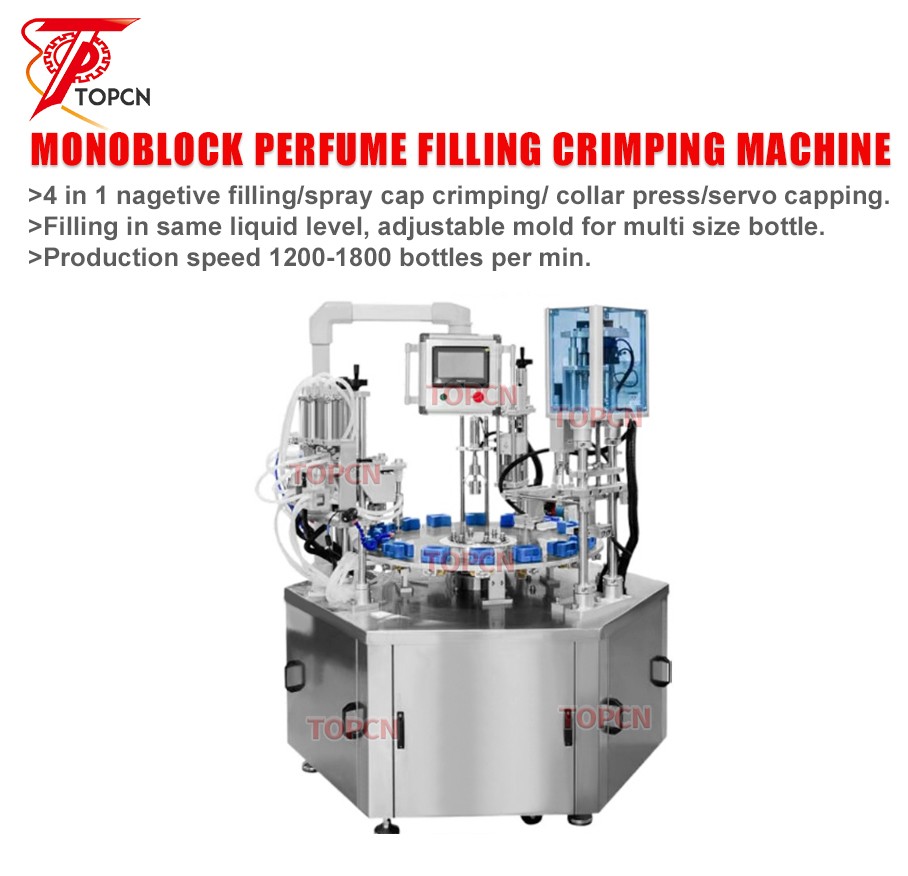

Monoblock Automatic 10ml 30ml 50ml Cologne Spray Liquid Fragrance Filler Bottle Perfume Filling Machine

Description

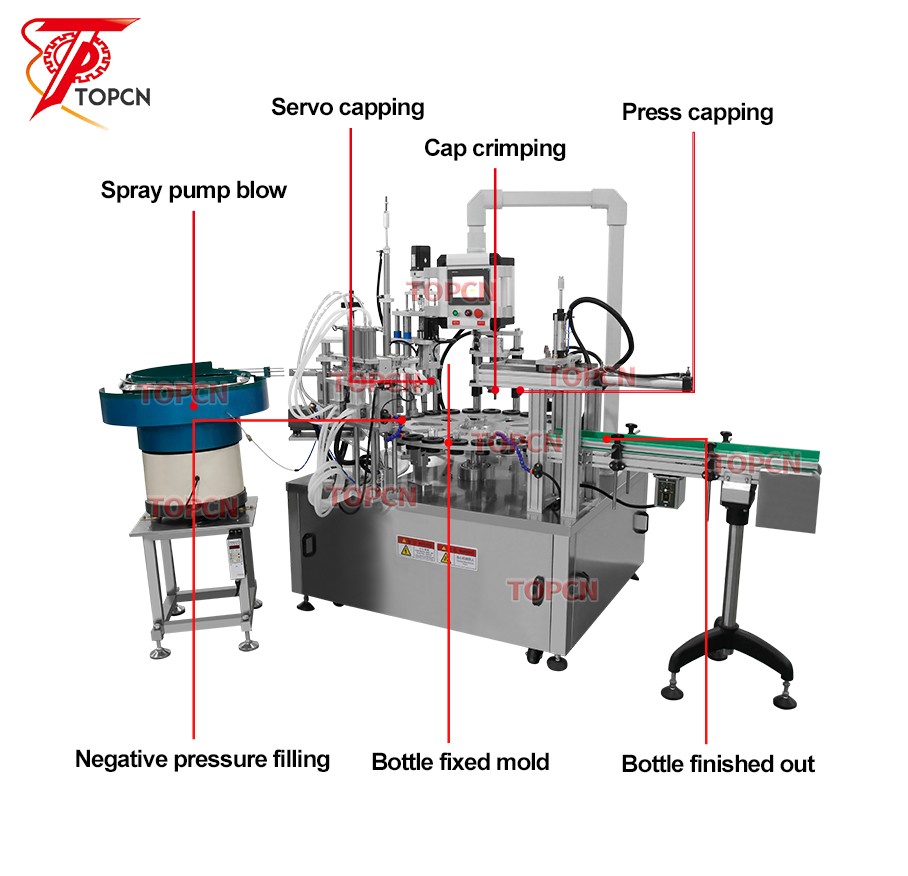

Working Process: Manual feeding bottles into the mold - Double head automatic filling - Manual feeding spray pump cap - Single head crimping- Manual feeding collar cap- Automatic pressing

A.This machine adopt fully pneumatic control so it is very suitable for the filling of high foam materials and different capacity of containers.

B.The design concept of this machine which developed by our company is: through increase pressure on the filling head, vacuum generator achieves a partial sealing environment in the re flow liquid bottle and filling container. Thus generate a partial vacuum (negative pressure).through vacuum suction to achieve filling process.

C.This machine is an ideal type machine which can reach the ideal filling speed and effect after practical commissioning the machine as according to size of the filling container. Replace the bottle and mold, and the filling nozzle can prevent dripping and leakage

Monoblock Automatic 10ml 30ml 50ml Cologne Spray Liquid Fragrance Filler Bottle Perfume Filling Machine

Monoblock Automatic 10ml 30ml 50ml Cologne Spray Liquid Fragrance Filler Bottle Perfume Filling Machine


VoltageAC 110V or AC 220V 50/60Hz 100w
Speed1200-1800bottles per hour
Bottle size(Dia/Height)20-120mm
Filling range 3-120ml accept customzie)
Power 1.5Kw
G.W 400Kg
Machine size 200*150*150cm

Monoblock Automatic 10ml 30ml 50ml Cologne Spray Liquid Fragrance Filler Bottle Perfume Filling Machine

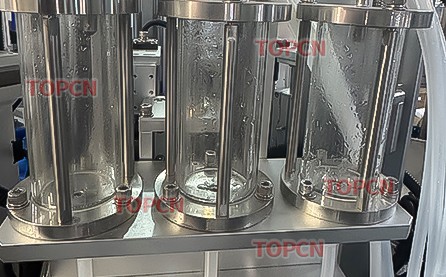

Clear Material Cylinder
The excess material sucked back by the filling nozzle can be seen with the naked eye and is drawn back to the back-suction tank above through the back-suction pipe.


Monoblock Automatic 10ml 30ml 50ml Cologne Spray Liquid Fragrance Filler Bottle Perfume Filling Machine

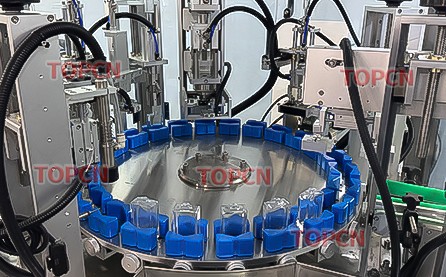

Bottle  mold
Place the bottle on the mold ,which  is adjustable, and there is no need to disassemble the mold to replace different  bottle,solving the problem of adjusting multiple bottles and saving medicine time.

Monoblock Automatic 10ml 30ml 50ml Cologne Spray Liquid Fragrance Filler Bottle Perfume Filling Machine

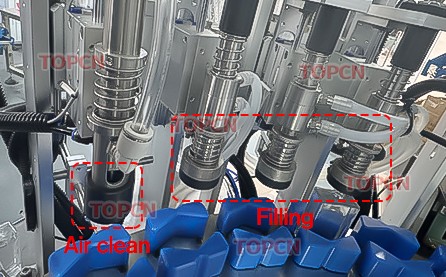

Vacuum filling system
Vacuum filling system  solved the problem that liquid not in the same level , and there is no need to worry about the impact of bottle errors on the filling volume.

Monoblock Automatic 10ml 30ml 50ml Cologne Spray Liquid Fragrance Filler Bottle Perfume Filling Machine

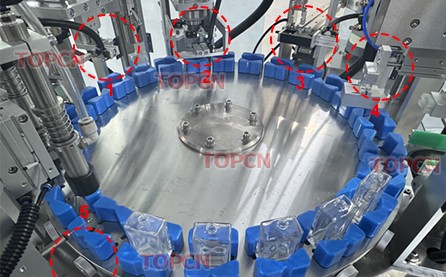

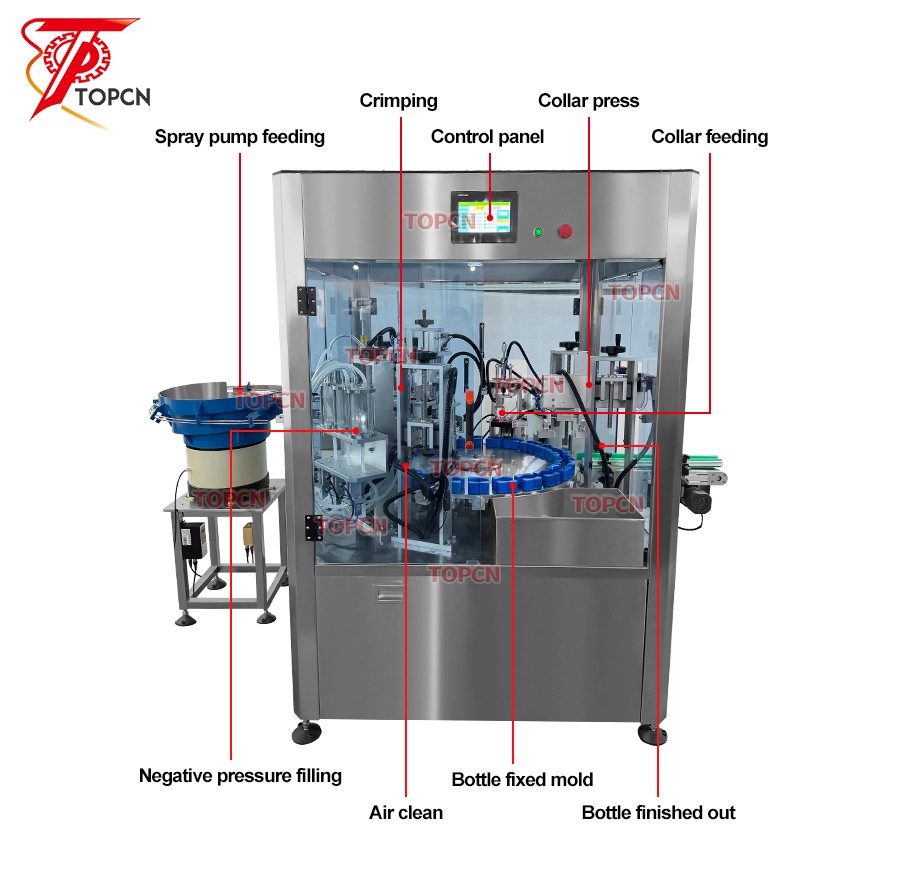

1:Vibration bowl feeding the spray pump
2:crimping head with different specifications can be replaced
3:Vibration bowl feeding the collar head ring
4:Automatic press the collar head ring
5:Adjusting bottle mould
