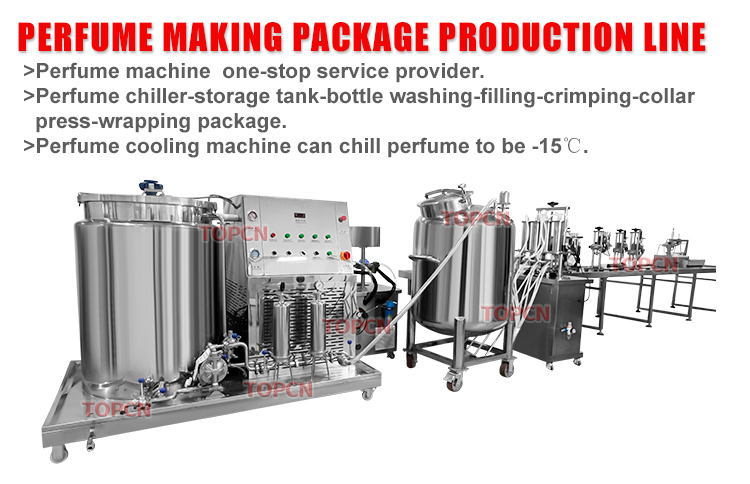

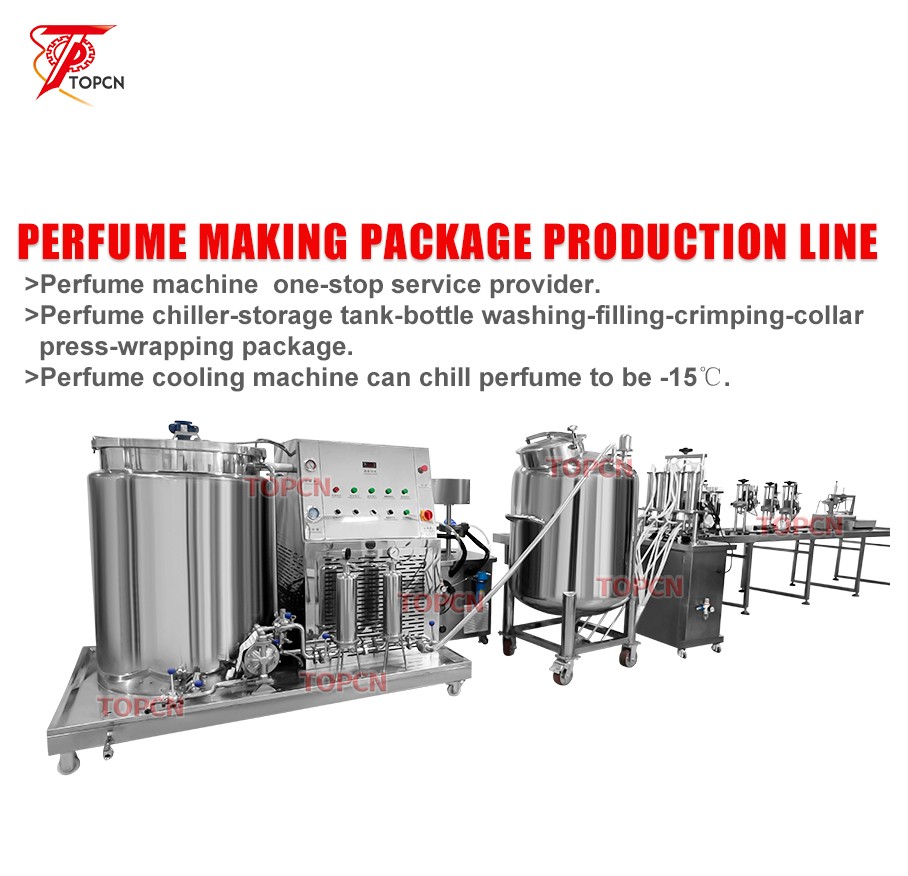

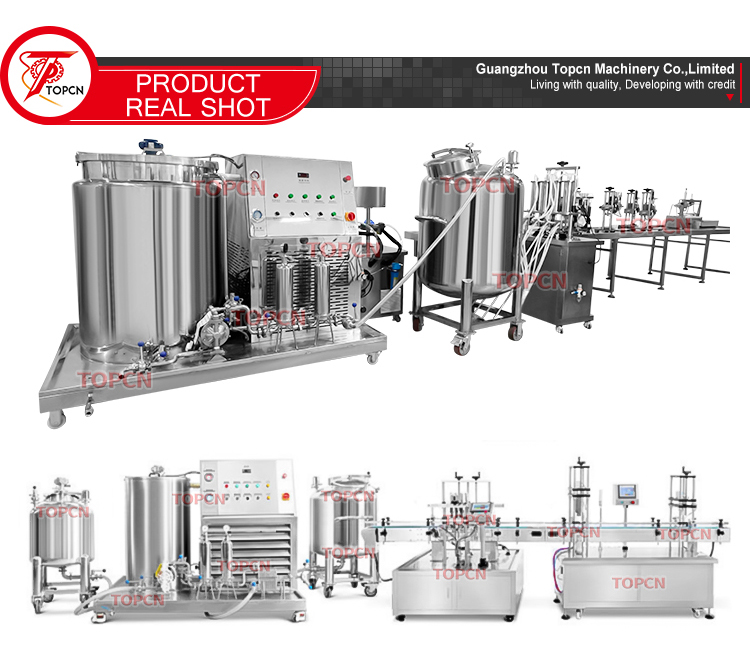

Perfume Making Package Production Line with Mixer Filling Capping Packing Production Line

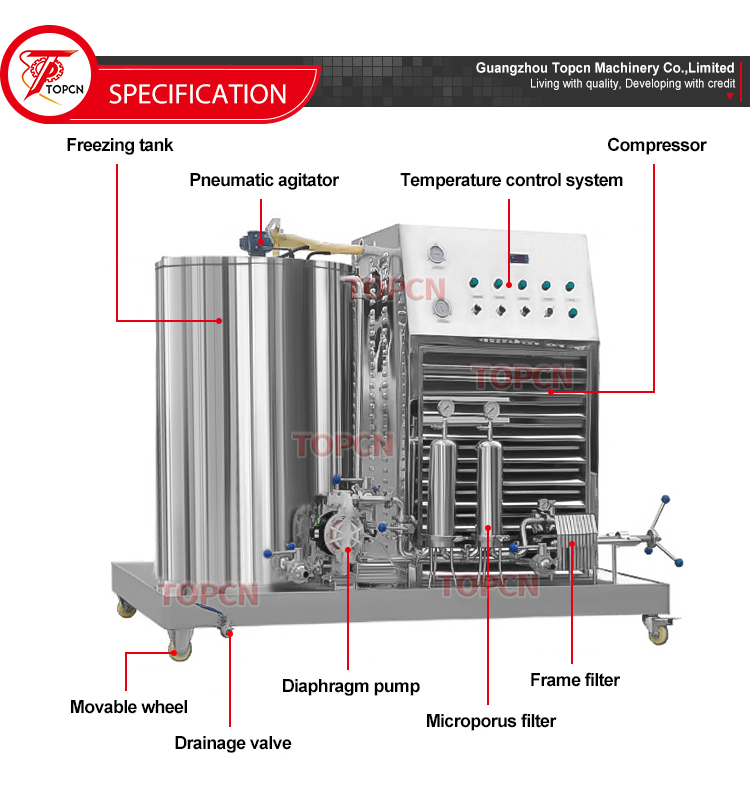

Feeding boiler

Material:304 load cubage:300

Cooling boiler

Material:304 load cubage:200L blending power:0.5KW(anti-explosion)

Cooling machine

Power:4KW imported extra-low temperature machine head

Booster pump

Material:stainless steel DN25 4T/h(anti-explosion)

Filter

Two stainless steel micro-hole filters, in series(or use board frame filter)

Platform

Stainless steel platform,aluminum alloy anti-slide board is laid onside

specification

3p

5p

10p

Power

308v/50HZ

General power

2.2KW

3.75KW

7.5KW

Refrigeration temperature

-5℃—15℃

Refrigeration liquid

R22

Air source pressure

0.5-0.6Mpa

Filter pressure

0.2 Mpa

Stair filter

1.0μm

Two level filter

0.2μm

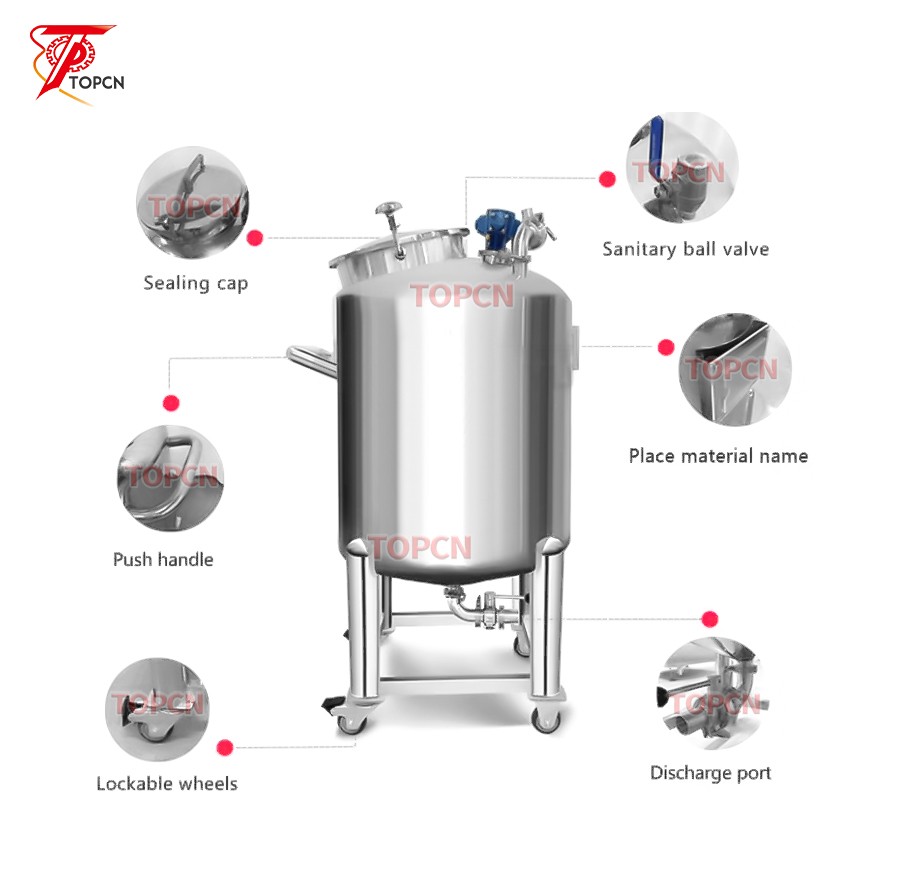

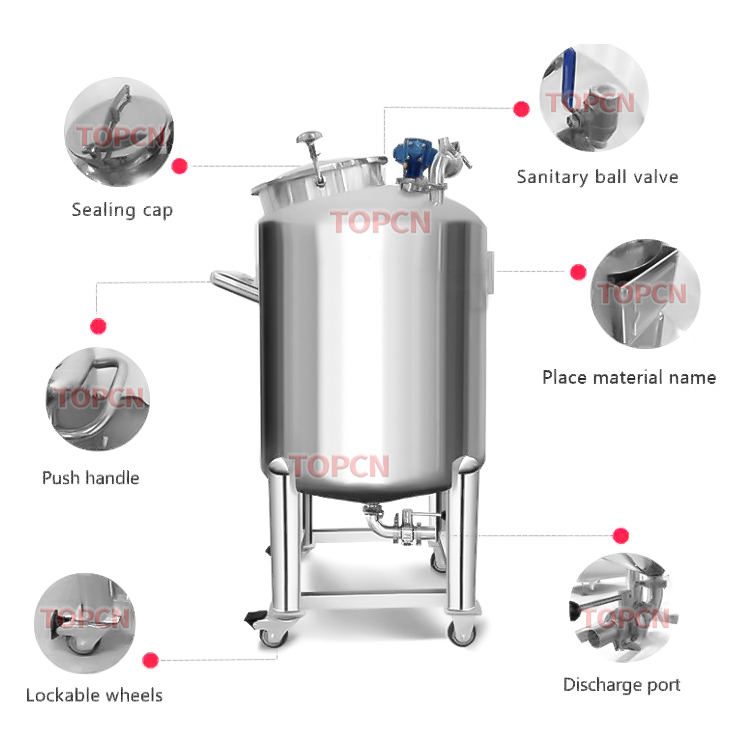

Factory price sanitary food liquid storing vessel customized drum jacketed insulated stainless steel storage tank

Profile type

Single layer tank

Double layer tank

Three layer tank

material

SS304 or SS316L

Volume

50L-30T (Customized)

Pressure

Vacuum-1Mpa

Tank Type

Vertical type or Horizontal type

Structure

one layer

Inner layer+jacket

inner layer+jacket+insulation

Cooling way

No

ice water /cooling water

ice water /cooling water

heating way

No

electric/steam heating

electric/steam heating

PARTS DETAILS

1.Quick open manhole / Pressure manhole

2.Various types of CIP cleaners

3.Sterile respirator

4.Adjustable Legs

5.Inlet and Outlet sanitary valve

6.Thermometer (According to customer requirements )

7.Paddle blender .(According to customer requirements)

8.Liquid level meter and lever controller (According to customer requirements)

9.Ladder

Power supply

AC220V/50HZ

Power

Above 500W according to user requirements

Washing speed

20-40 bottles/min (user setting)

Bottle mouth diameter requirements

Outer diameter 15-65mm, inner diameter minimum 8mm (customized according to bottle mouth)

Air pressure requirement

4-6KG/cm2

Air consumption

60L/min

Air source interface

8mm (user docking air pipe)

Production capacity

2 heads 1000-2000 bottles/hour

Frame

SUS304 stainless steel

Electric box

CNC sheet metal production

Static eliminator components

1set

Blower components

1set

Primary air filter

1set

Dust filter

1set

Secondary air filter

1set

Time relay

1set

Solenoid valve

1set

Magnetic

2pcs

Dimensions

L700*W760*H1210mm

Weight

80kg

Wooden box size

L770*W820*H1330mm

Packed weight

120kg

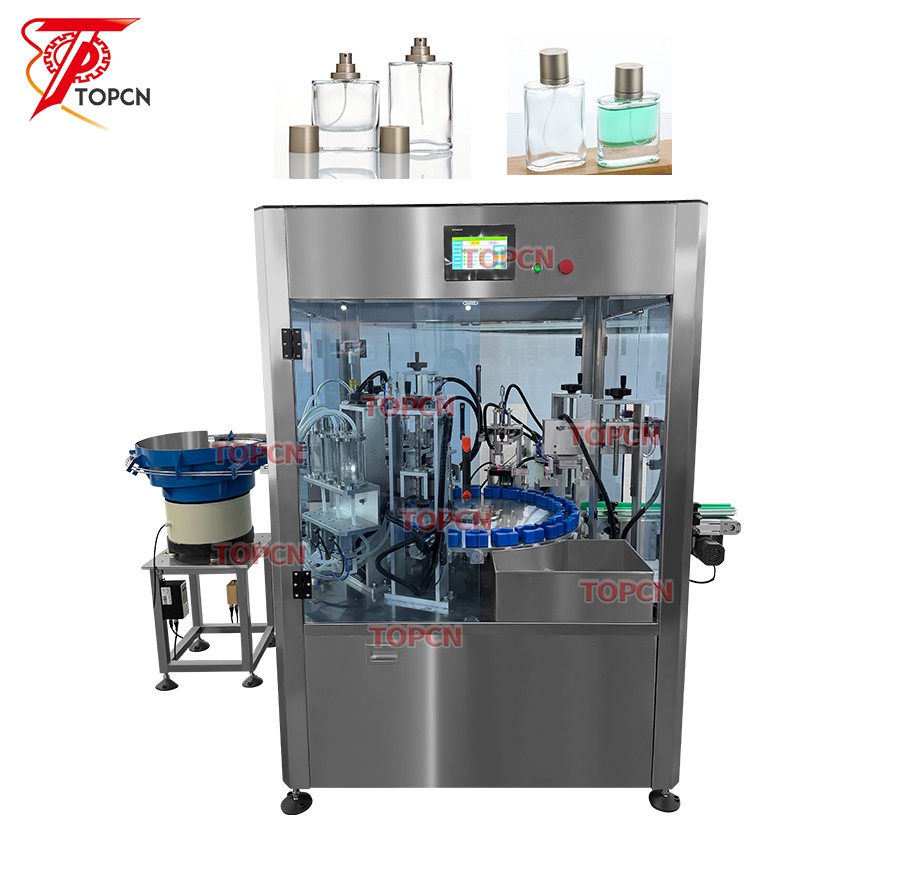

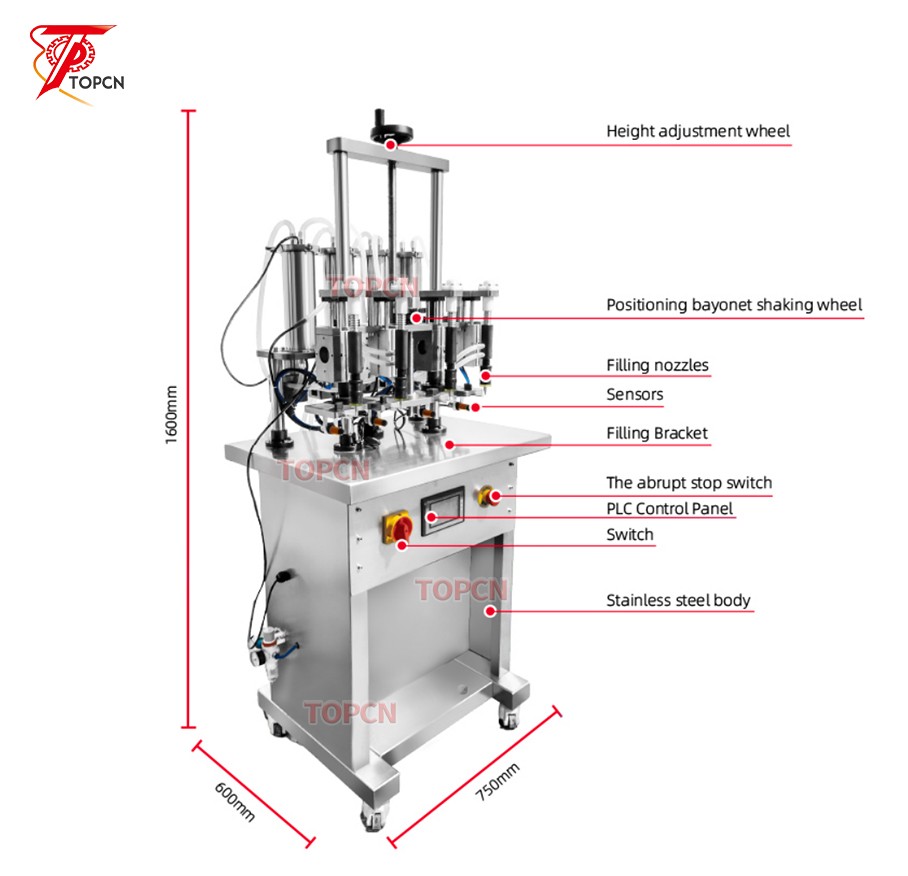

Filling capacity

5-1000ml

Bottle height

≤250mm

Min diameter(bottle hole)

≧4.5mm

Max diameter (bottle hole)

≤20mm

Filling speed

40 bottles/min

Filling heads

4 heads

Air pressure

0.4Mpa

Weight

100kg

Dimension

70cm*60cm*165mm

Suction speed

5.5L/min

Power

220V/50Hz

Vacuum pump

XD-020(Explosion proof 2X-4A)

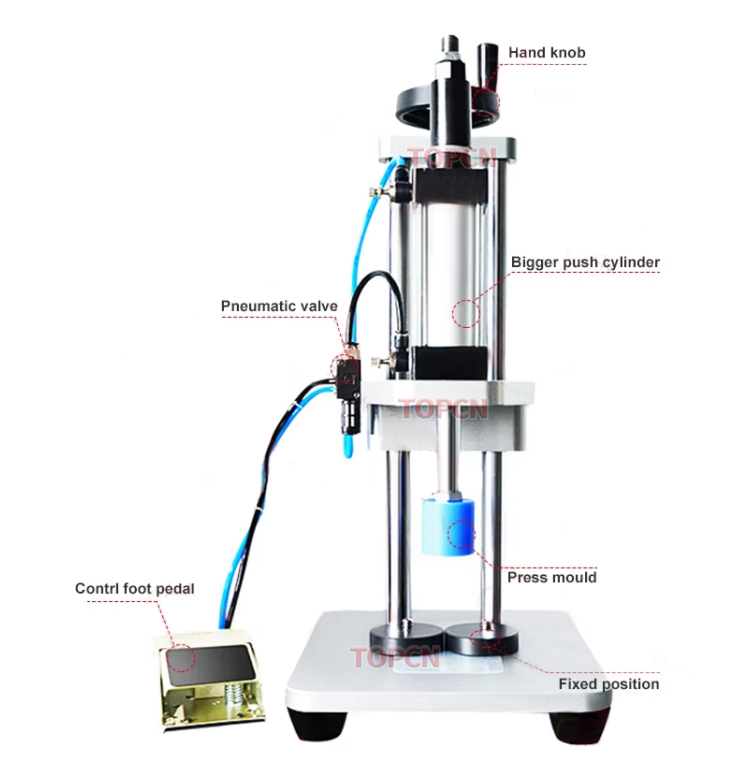

Scope of application

Perfume, oral liquid, vial, penicillin and other glass bottle mouth lock

Bottle mouth size

FEA13/FEA15/FEA18/FEA20(other size customize)

Bottle highly

30-200mm (adjustable)

Air pressure

0.4-0.6 Mpa

Production capacity

About 1000 bottles/hour

Overall dimensions

250*270*490MM

Operating mode

pedal

Total weight

About 25 kg

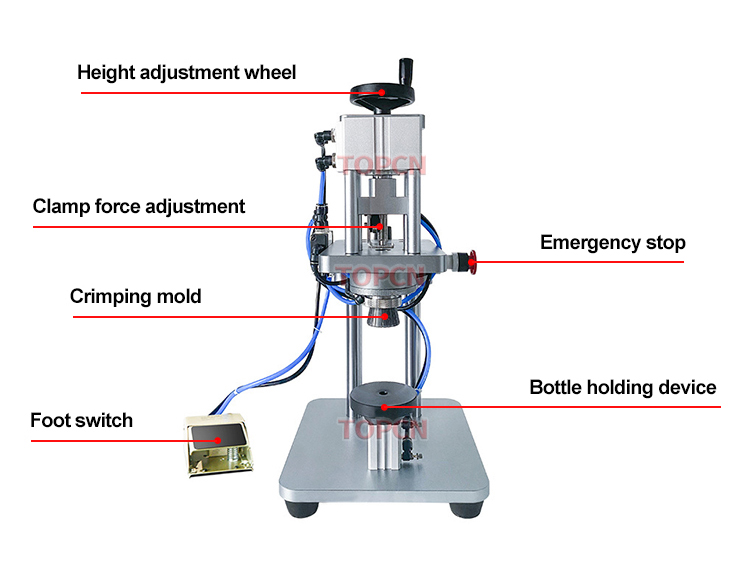

Size

13/15/18/20mm

(We have other size,if you need it please contact us)

Work height

60-200mm(adjustable)

Air pressure

0.4~0.8MPa

Sealing pass rate

99%

Cap rate

About 10-40bottles/min

Machine size

About 250*270*600mm

Packaging size

About 330*300*620mm

Net weight/Gross weight

About 11.2kg/18kg

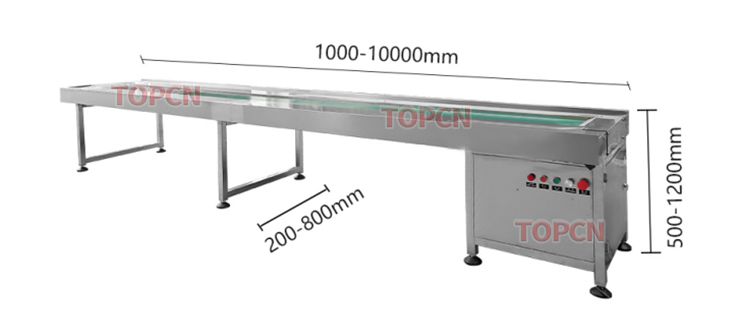

Material

Stainless Steel

Belt width

200mm or custom made

Conveyor length

1000-10000mm

Conveyor motor

60W or custom made

Conveyor height

750mm or custom made

Side bars

Adjustable

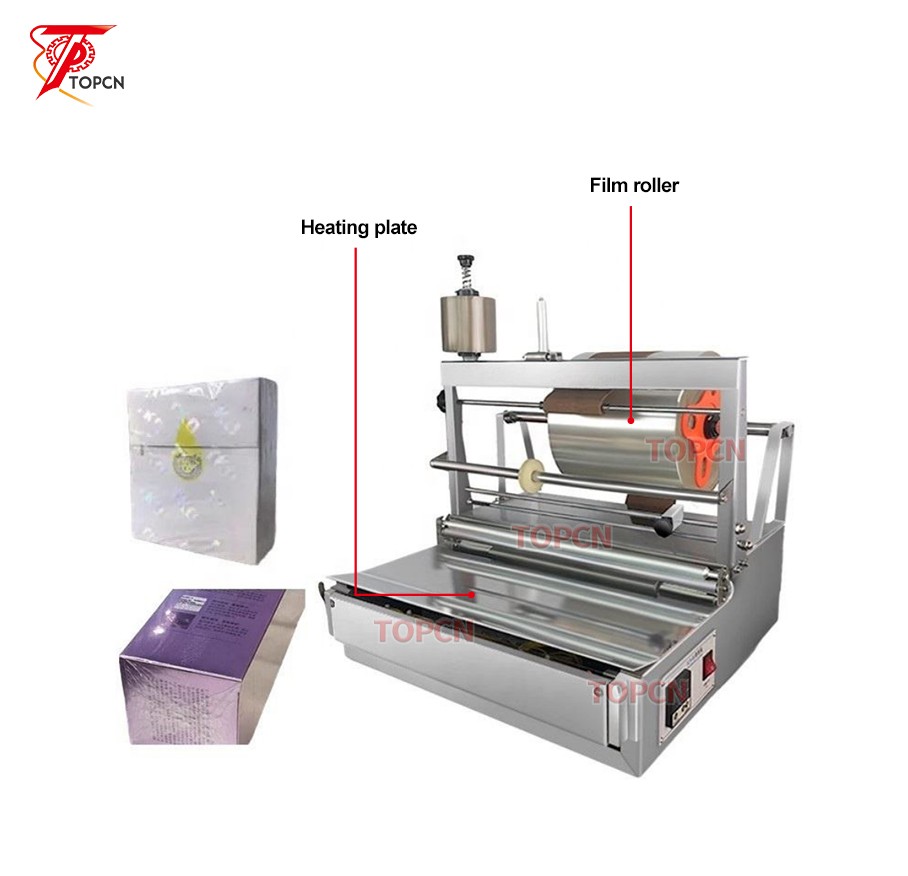

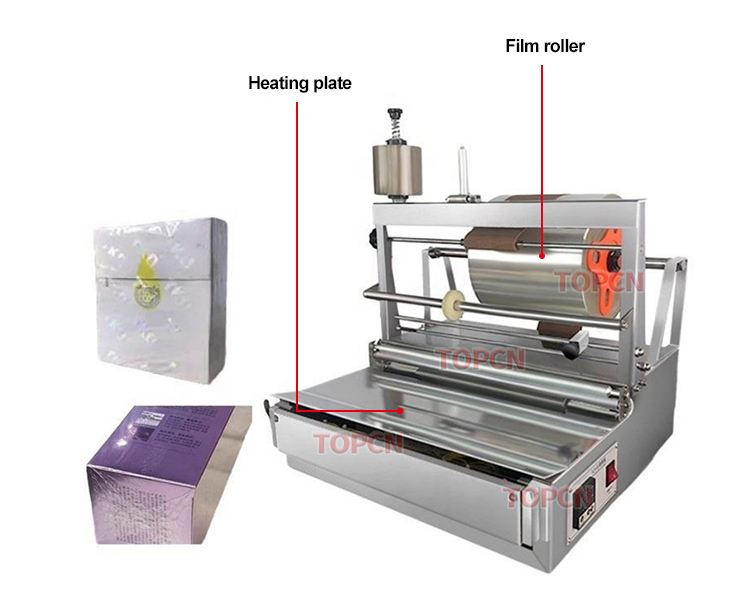

Material

Stainless steel 304

Max width roll film

40cm

Power

1.5KW

Voltage

220V/50HZ

Speed

5~10times/min

Size

58*58*58CM

Weight

23KG
