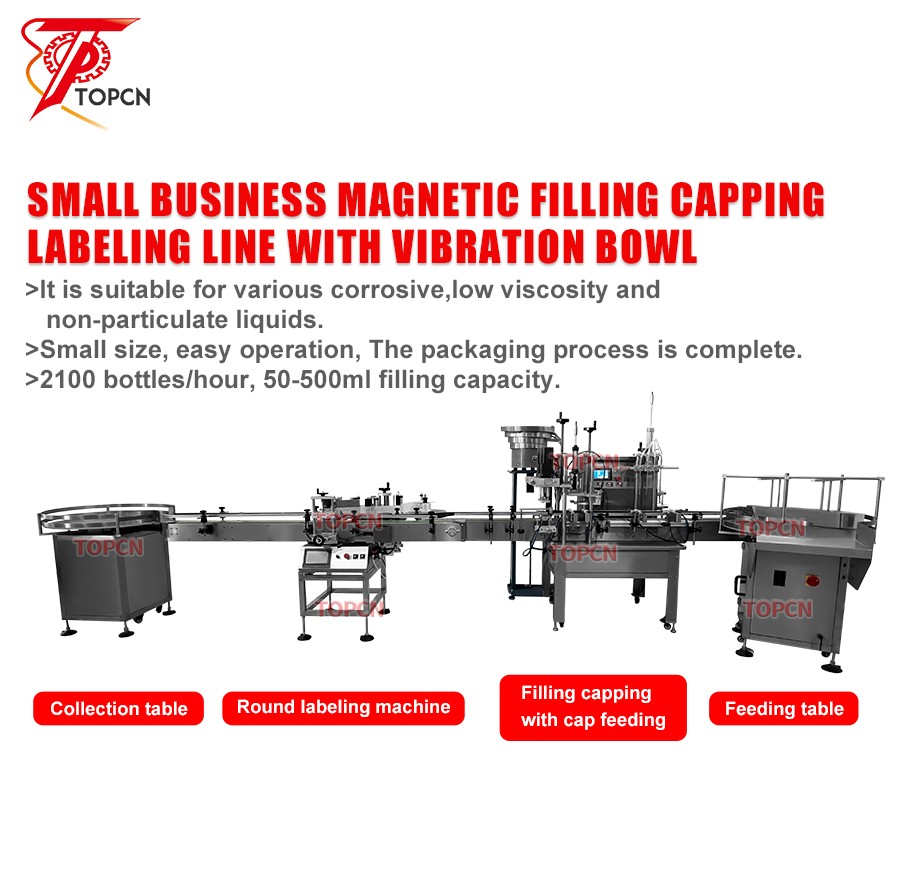

4 Heads Magnetic Pump Chemical Oil Milk Beverage cosmetic Cream Jam Filling Capping and Labeling Machine

Product Name

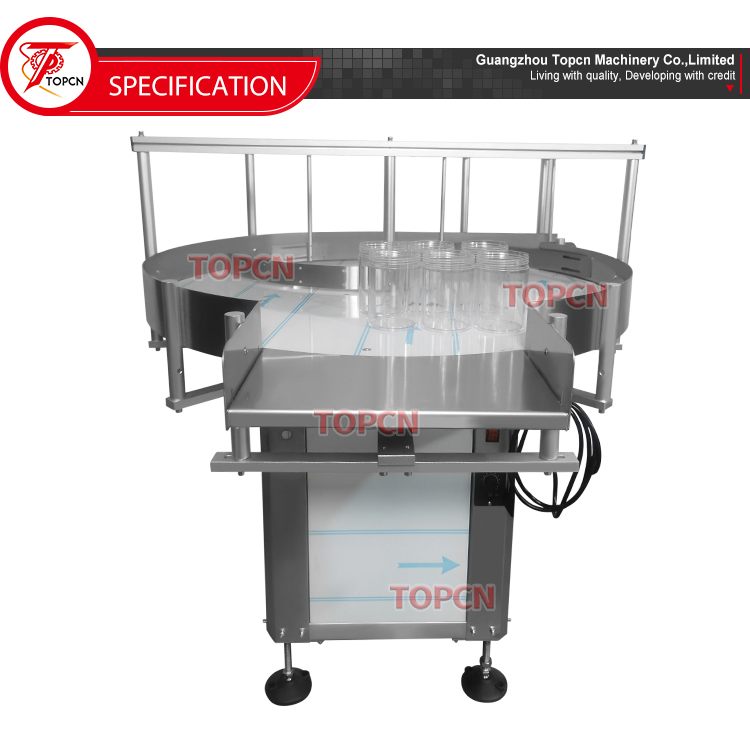

Bottle feeding turntable/Bottle collection

Model

TPLP800

TPLP1000

TPLP-1200

Turntable Diameter

800mm

1000mm

1200mm

Suitable Bottle Diameter

20-100mm

Suitable Bottle Height

30-120mm

Working Speed

40-60 bottles/min(depends on bottle size)

Motor Power

0.2KW

Power Supply

220V/50-60HZ

Net Weight

109.5kg

135kg

165kg

Machine size

95*100*110cm

115*120*110cm

135*130*110cm

Package Size

115*100*132cm

135*131.5*132cm

155*150*132cm

Gross Weight

155kg

180kg

200kg

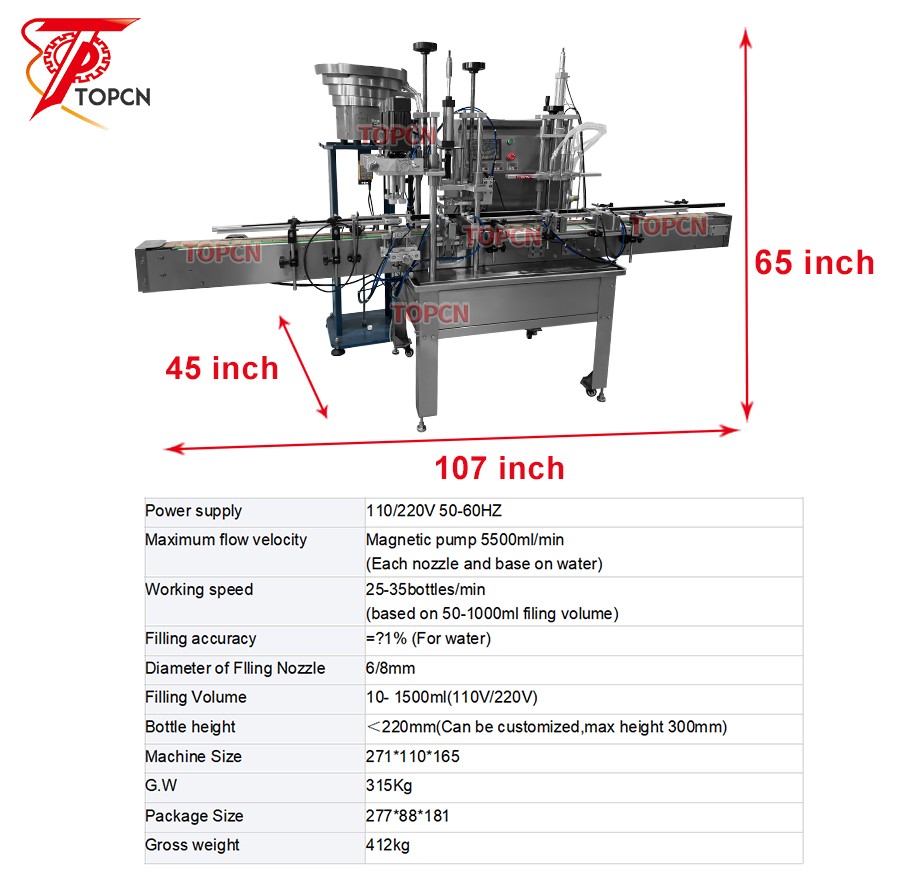

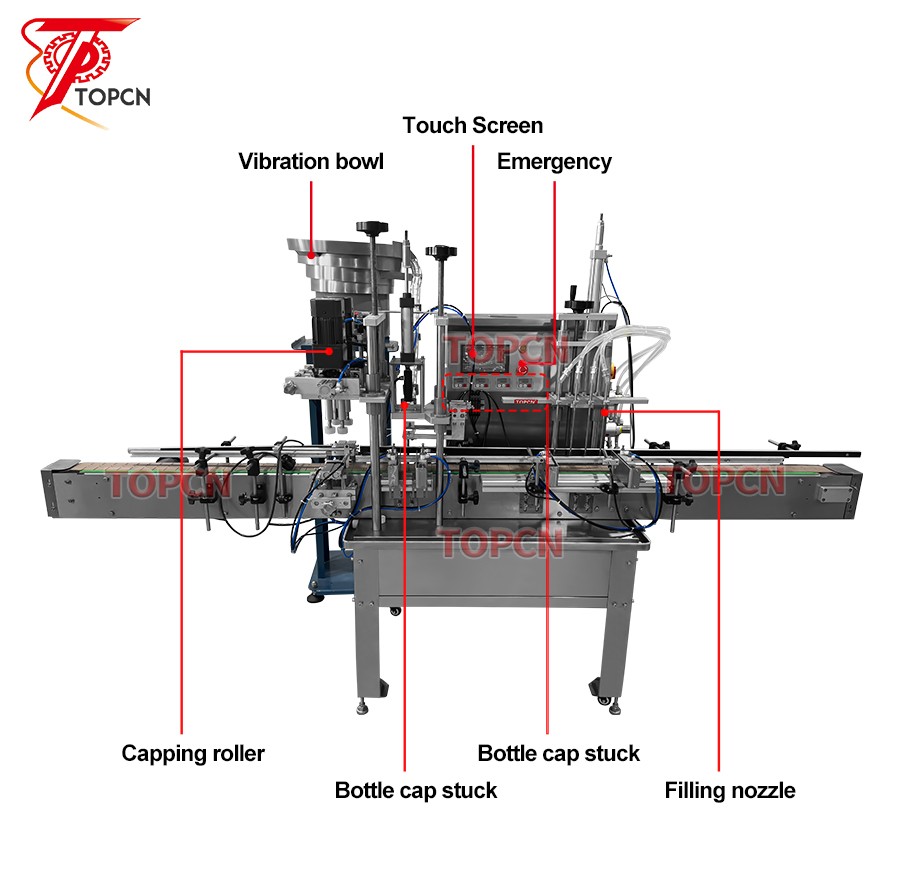

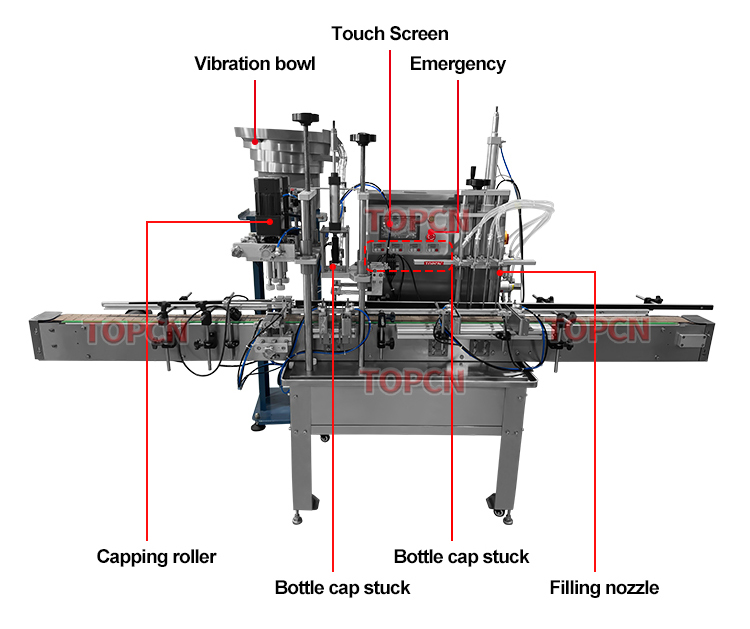

Power supply

110/220V 50-60HZ

Maximum flow velocity

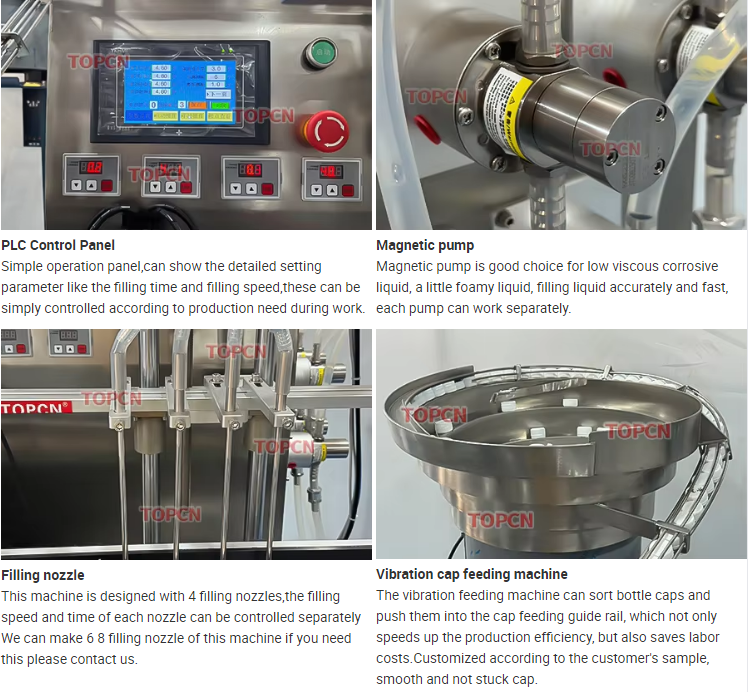

Magnetic pump 5500ml/min
(Each nozzle and base on water)

Working speed

25-35bottles/min
(based on 50-1000ml filing volume)

Air pressure

0.3-0.4MPa

Filling accuracy

≤±1% (For water)

Diameter of Flling Nozzle

6/8mm

Delay Range

0.01-999.9s

Count Range

1-99999 Times

Filling Volume

3- 500ml(110V/220V)

Size of air compressor connector

OD8mm

Bottle height

＜220mm(Can be customized,max height 300mm)

Machine Size

271*110*165

G.W

315Kg

Package Size

277*88*181

Gross weight

412kg

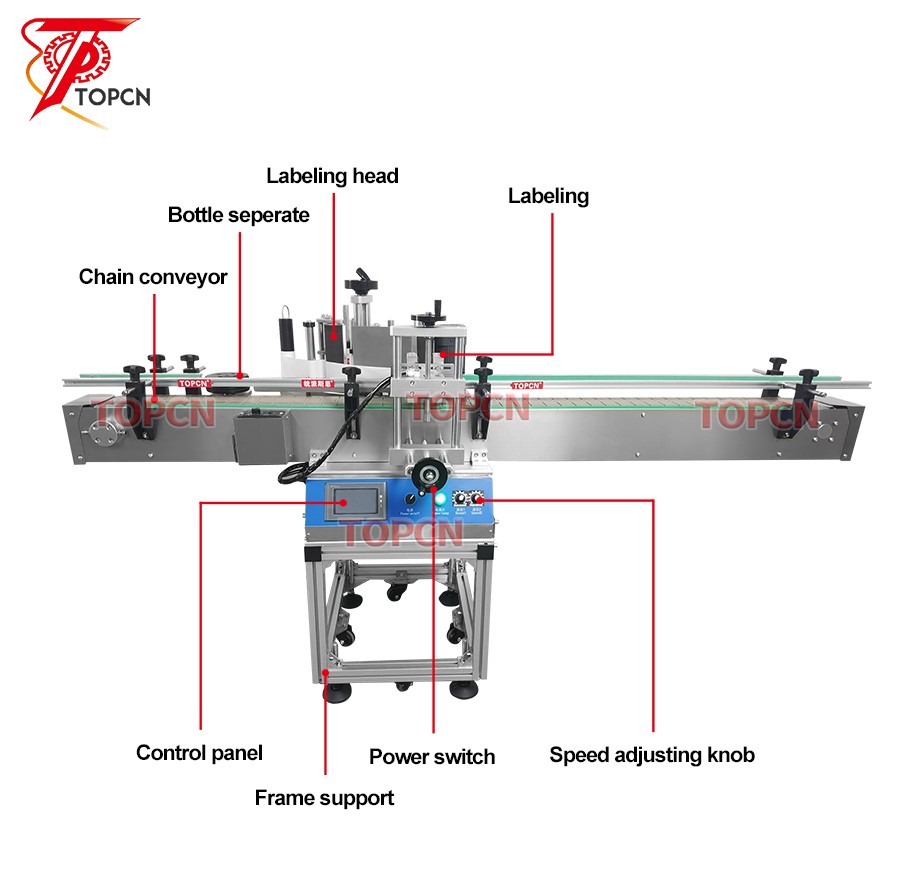

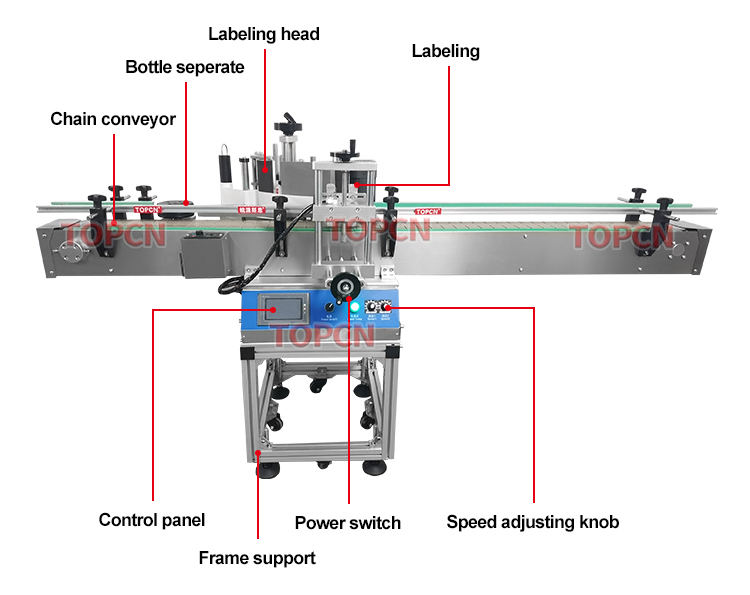

Voltage

AC 110V or AC 220V 50/60Hz 100w

Speed

20-100pcs/min

Bottle Height

25mm-380mm

Label size

Length:10-350mm; Width:20-100mm

Precision

±1mm(depends on bottle shape)

Label roll

φ76.2-φ350mm

Objects

Bottles, jars, cans, boxes, cartons, juice bottles, beer wine bottles, shampoo detergent bottles, etc.

N.W.

80Kg.(G.W. with wooden case 120KG)

Dimension

1220×850×800mm

Function

This machine can stick labels on various objects, Bottles, jars, cans, boxes, cartons, beer bottles, wine bottles, juice bottles,shampoo detergent bottles, hardware, etc.
