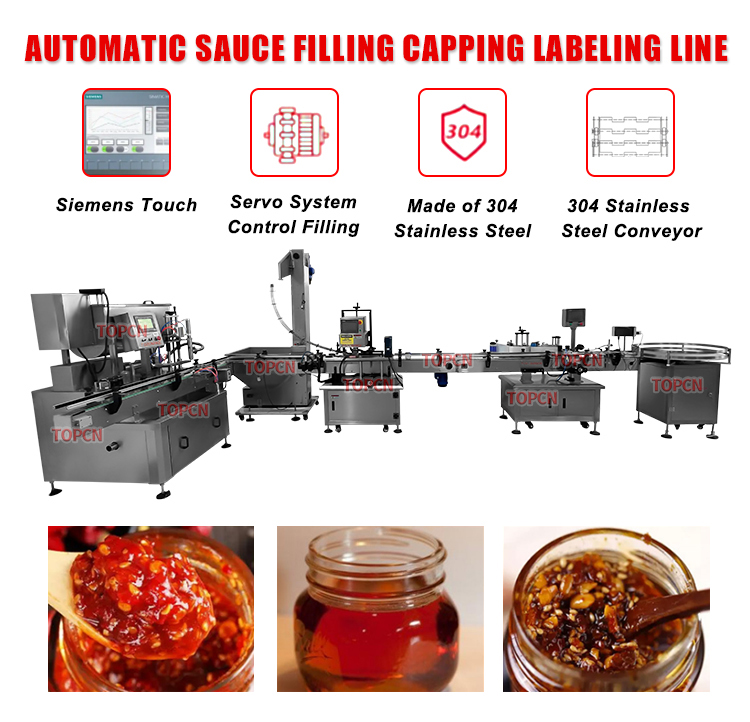

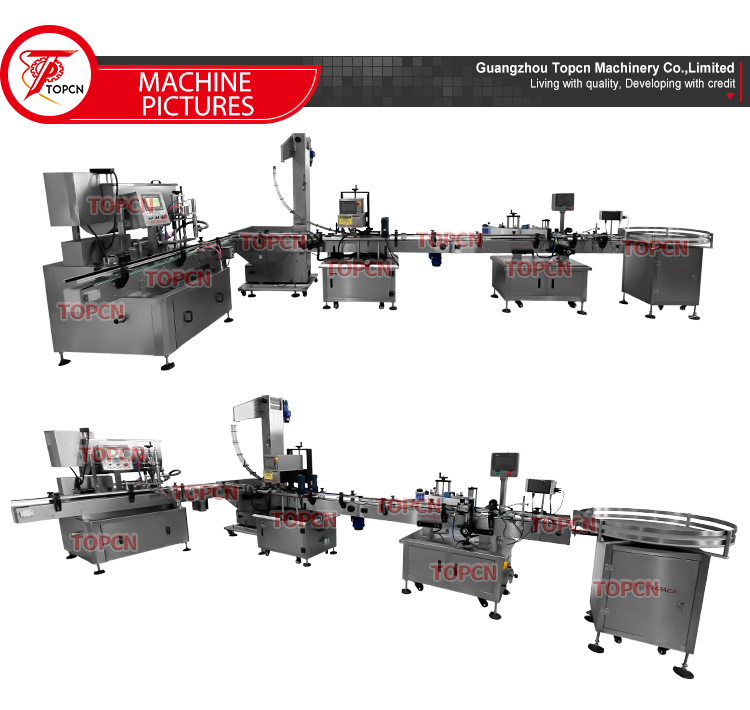

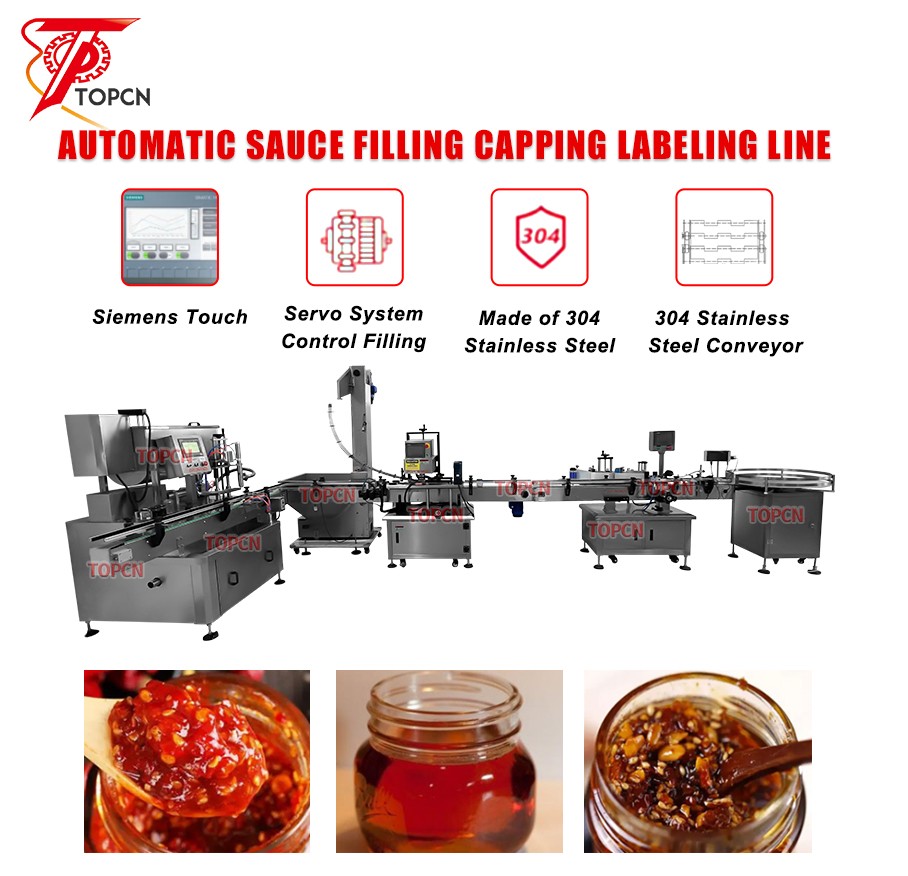

Automatic Chocolate BBQ Tomato Paste Chilli Sauce Ghee Jar Sauce Cooking Filling and Labeing Line Machine
- Application
- Description
- Products Parameters
- Video
- Package&Shipping

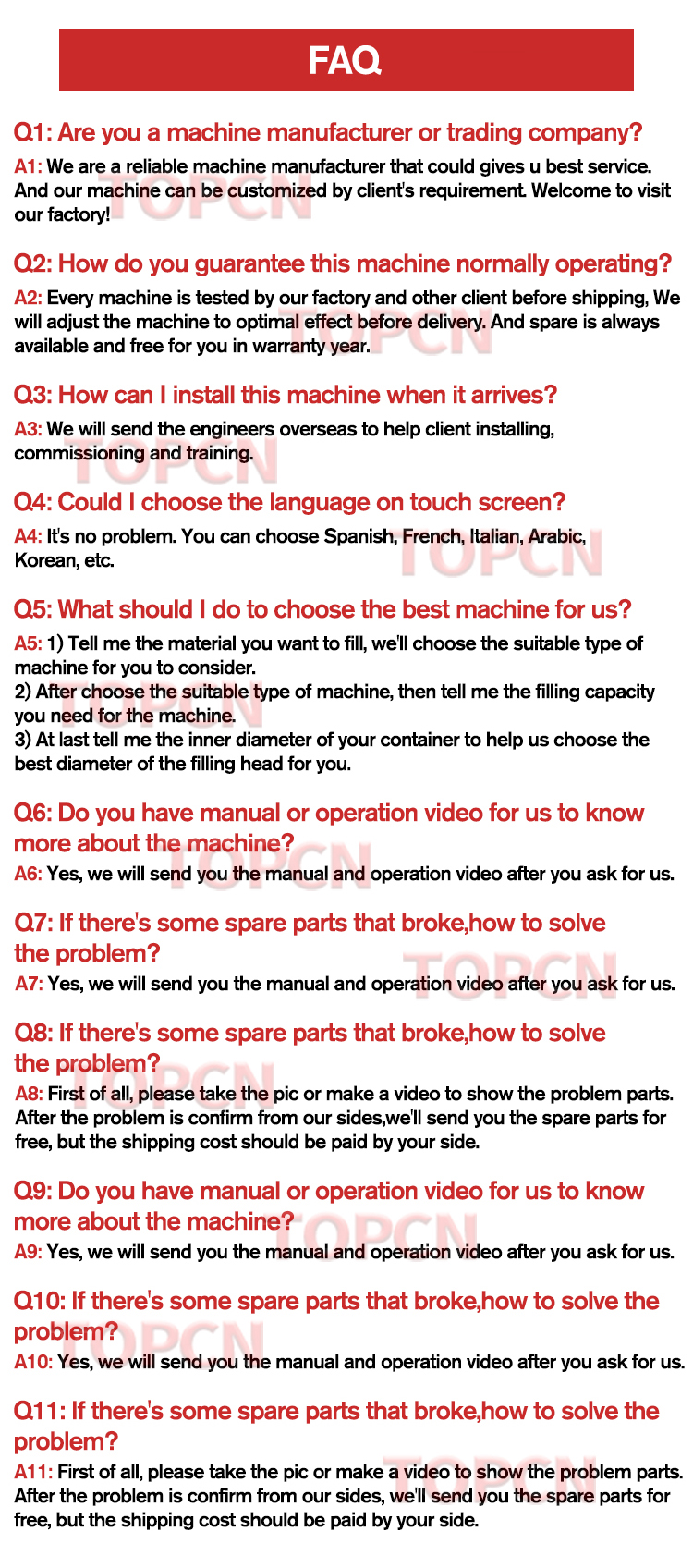

- FAQ

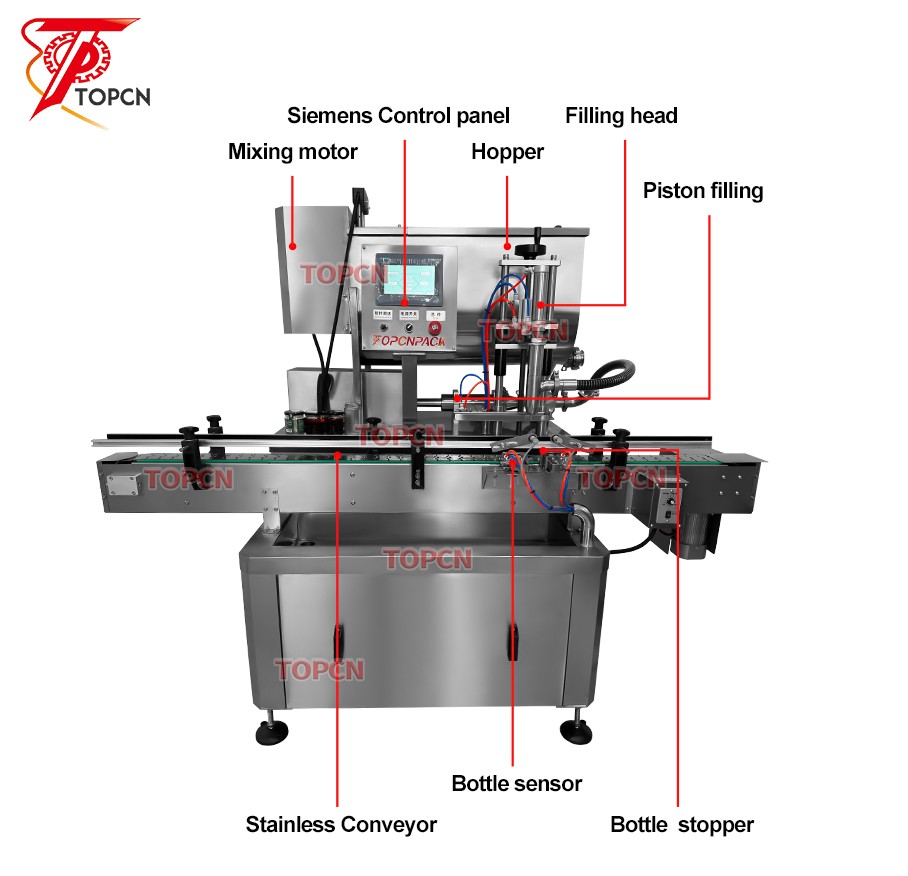

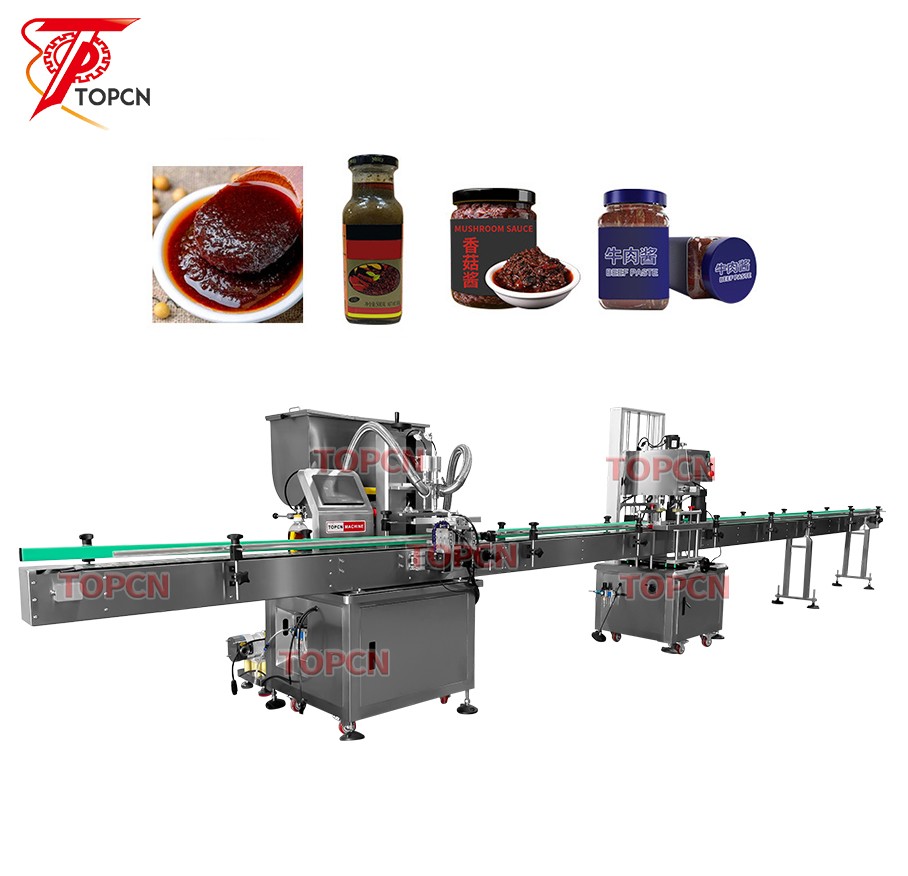

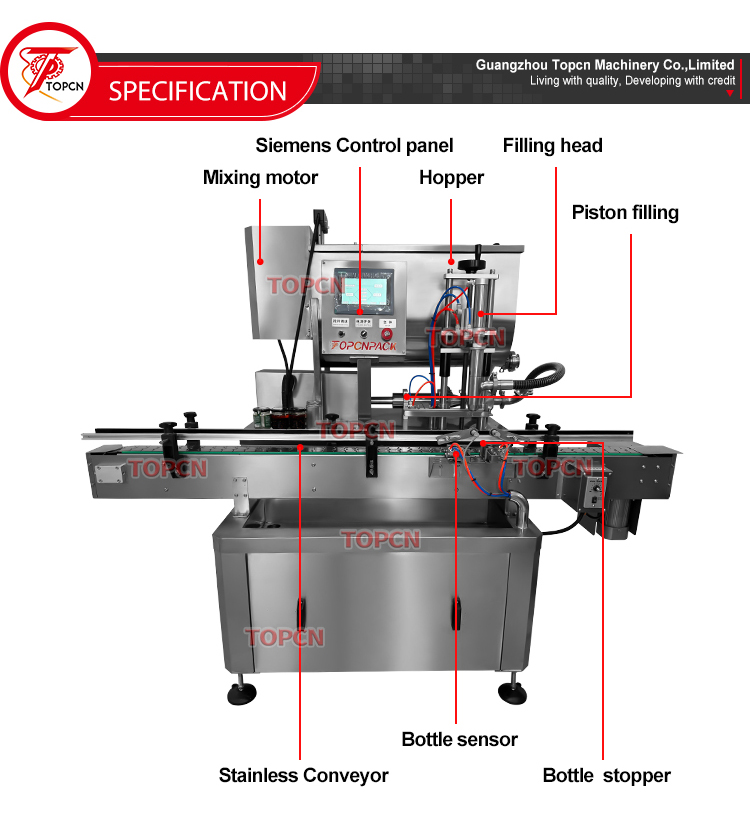

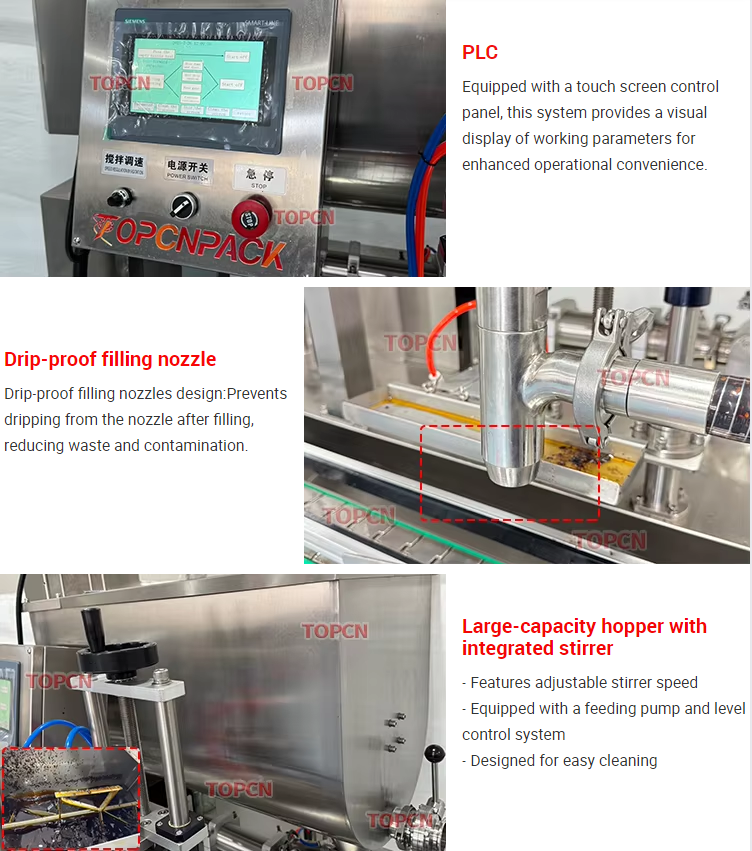

This filing machine is equipped with automatic stirring function, with simple structure, high precision and simple operation.

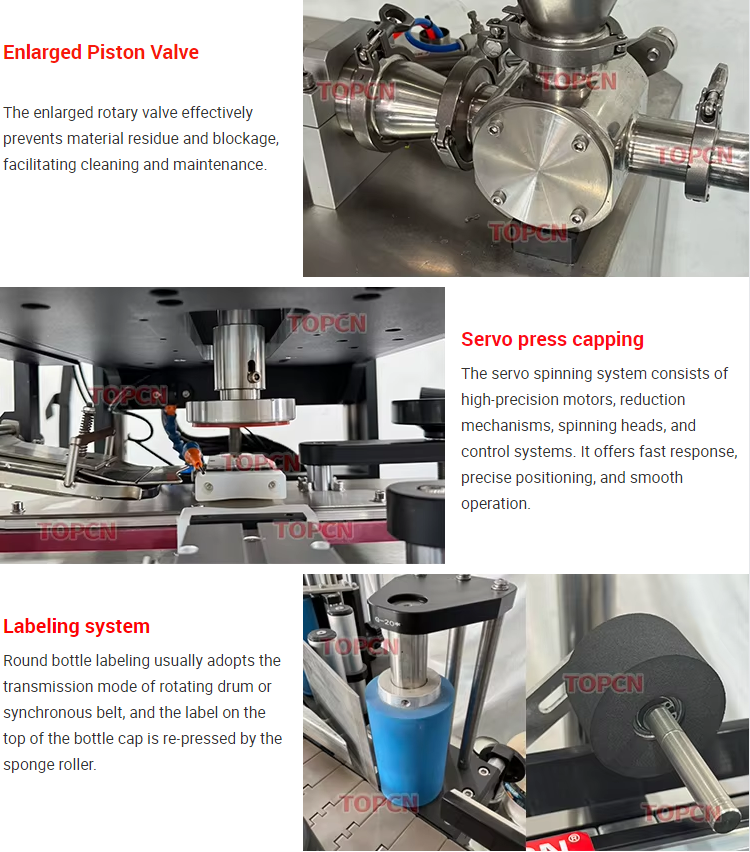

The filling valve consists Pneumatic valve control, high filling precision, adjustable filling volume and filing speed, and 304L for material contact parts Made of stainless steel, it meets GMP requirements.
(Can be filled with honey, sauce, toothpaste and other high viscosity materials, can Filling chili, Douban, sesame paste and other granular items)
Packaging type | Bottles/jars |
Package material | Plastic/Glass |
Filling products | Chili,Douban, sesame paste honey, sauce, and other granular material |
Application | It is applied in food industry |
degree of automation | Automatic |
N.W | 150kg |
Filling precision | ±1% |
Voltage | 220V other voltages can be customized |
Type of power | Electric & pump |
L*W*H | 200*100*175cm |
Core components | Piston pump/Lobe pump |
Filling nozzles | customizable (1,2.4, 6, etc.) |
Filling volume | 10-150g 25-250g |
Speed | 1 head:15-20bpm 2 head :20-25bpm |
Powder | 2.5Kw |
Model | TPCM-01 | ||
Suitable bottle cap diameter | 30-85mm | ||
Production capacity | 15~30 bottles | ||
Suitable bottle diameter | 30-90mm | ||
Suitable bottle height | 50-250mm | ||
Screw Torque | 5-20N.M | ||
Dimensions | L350*W200*H230cm | ||
Weight | 450KG | ||

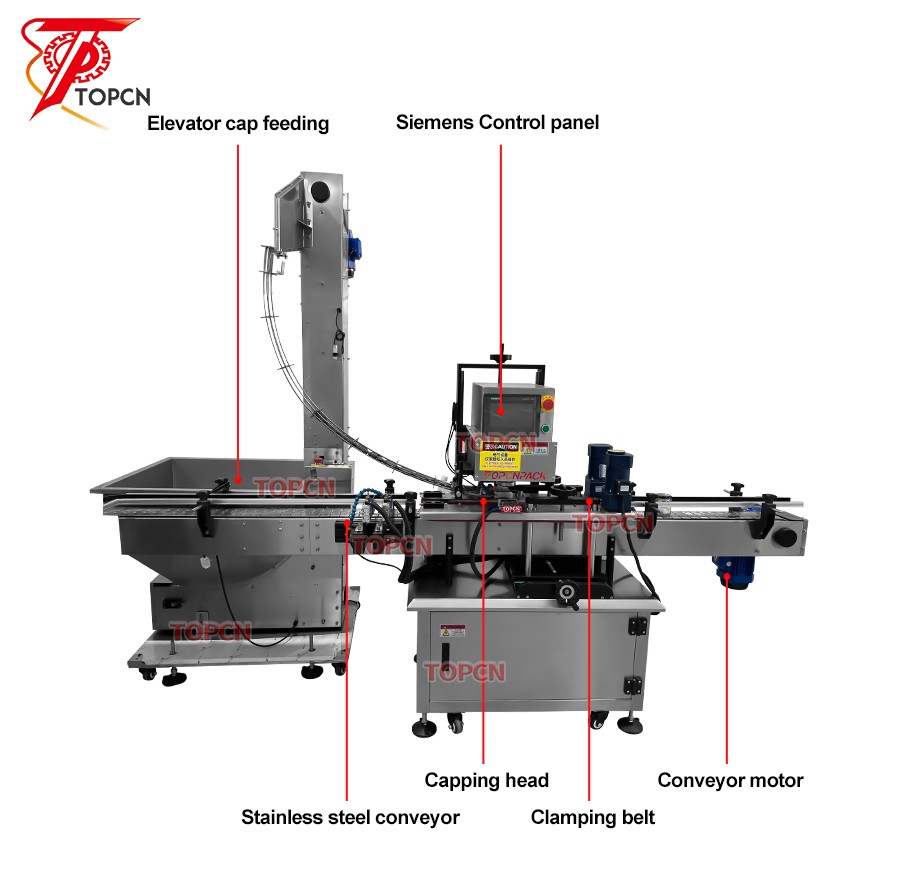

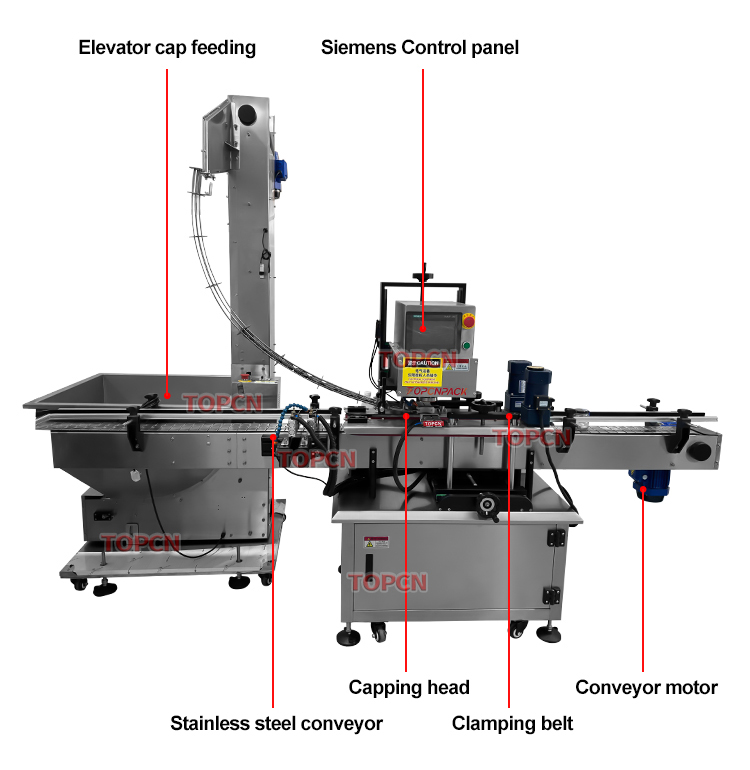

Product Name | Automatic cap feeding single-head capping machine | ||
Power | 3KW | ||
Voltage | 220v/110v(Customizable) | ||
Air Source | 0.4MPa-0.6MPa | ||

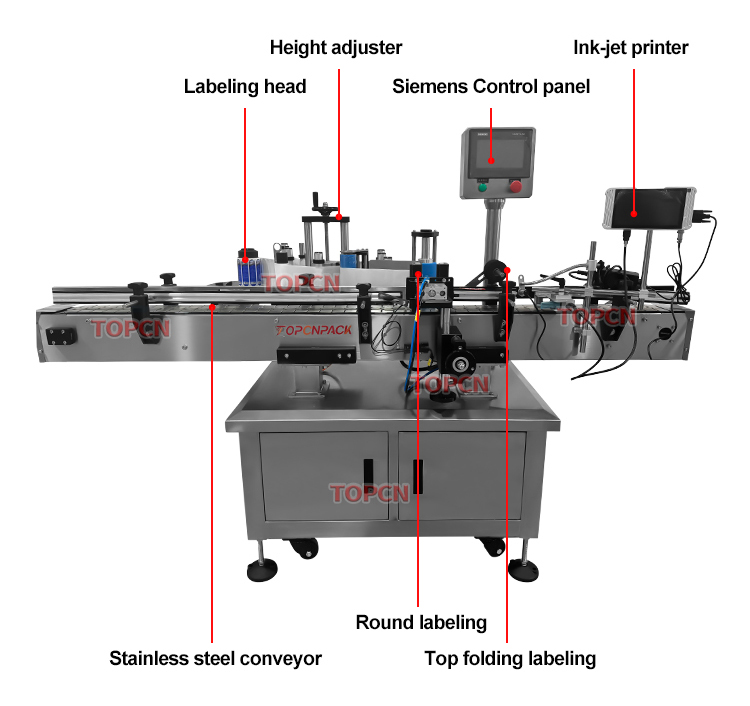

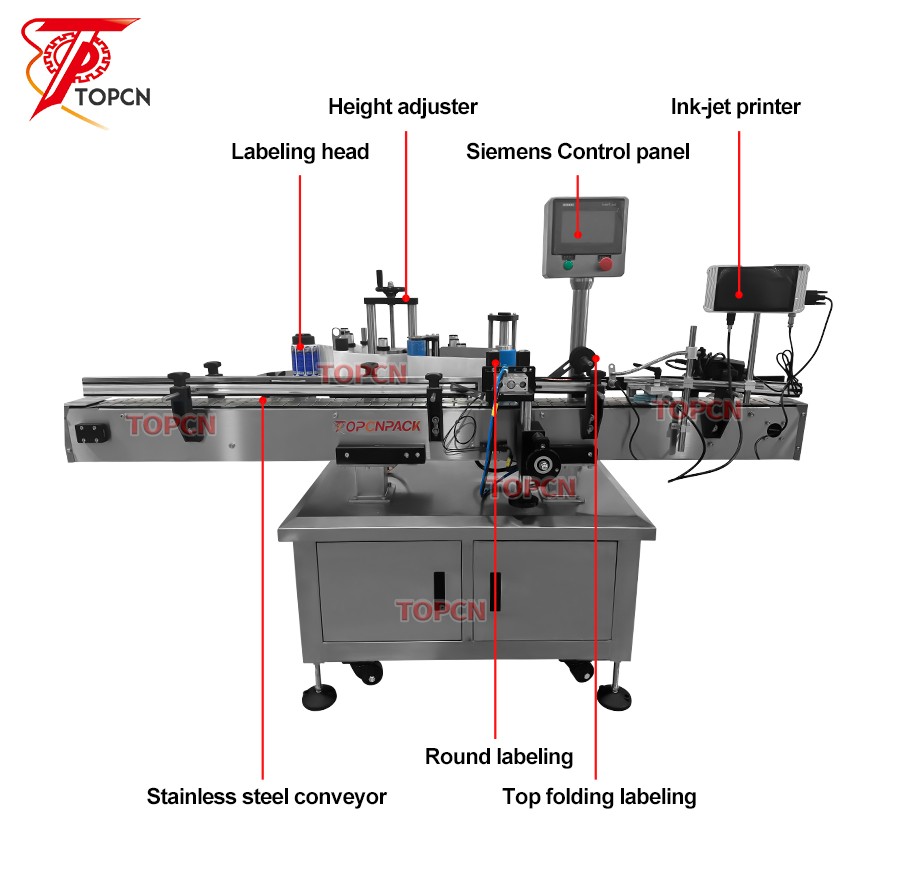

Labeling Precision | ±1mm (excluding product and label error); |
Power Supply | AC220V 50/60Hz 700W |
Conveyor Speed | 5~25 meters/minute; |
Model No | TPLM-R |
Labeling Speed | 10~35pcs/min(Related to product, label size); |
Sticker Out-Come Speed | Stepping Motor: 5~19 meters/minute |
Servo Motor: 5~25 meters/minute | |
Application Bottle Size | External diameter: Φ25-100mm; |
Height: 25mm~300mm; | |
Applicable label size | Label Length: 20mm~290mm; |
Label Width(body paper width): 20mm~120mm; 180mm (option) | |
Inner dia. of paper roll | Φ76mm |
External dia. of paper roll | Max. Φ300mm |
Size | 200*115*1600cm |
Weight | 185kg |

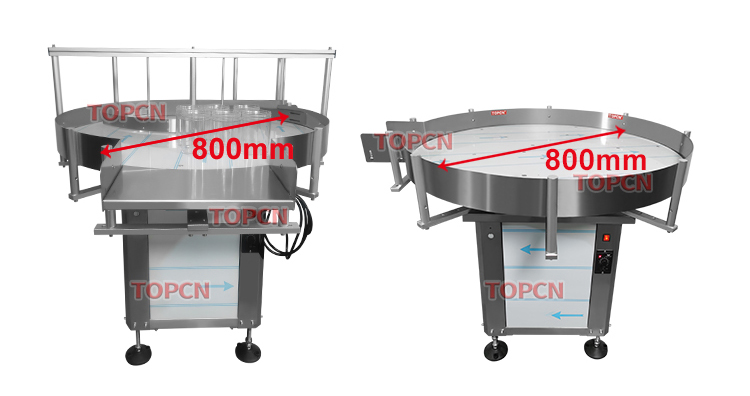

Product Name | Bottle feeding/collection turntable | ||
Model | TP-LP800 | TP-LP1000 | TP-LP-1200 |
Turntable Diameter | 800mm | 1000mm | 1200mm |
Suitable Bottle Diameter | 20-100mm | ||
Suitable Bottle Height | 30-120mm | ||
Working Speed | 40-60 bottles/min(depends on bottle size) | ||
Motor Power | 0.2KW | ||
Power Supply | 220V/50-60HZ | ||
Net Weight | 109.5kg | 135kg | 165kg |
Machine size | 95*100*110cm | 115*120*110cm | 135*130*110cm |
Package Size | 115*100*132cm | 135*131.5*132cm | 155*150*132cm |
Gross Weight | 155kg | 180kg | 200kg |

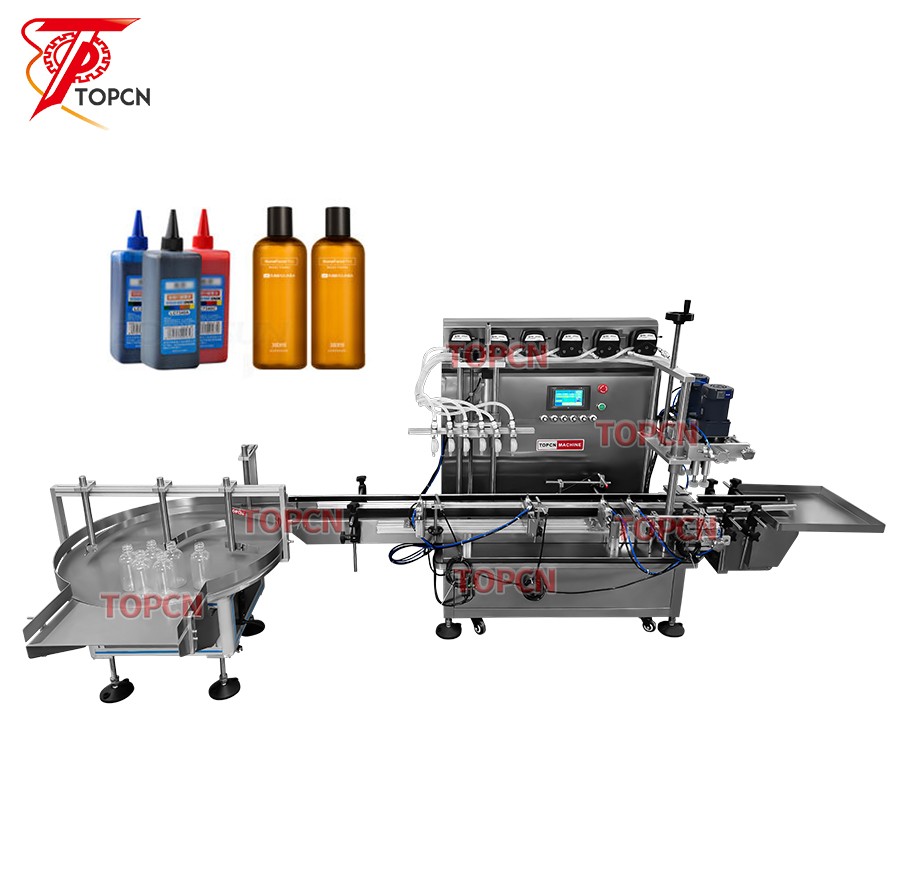

- 6 Heads Automatic Benchtop Liquid Oil Peristaltic Pump Belt Conveyor Beverage Juice Syrup Filling Capping Machine

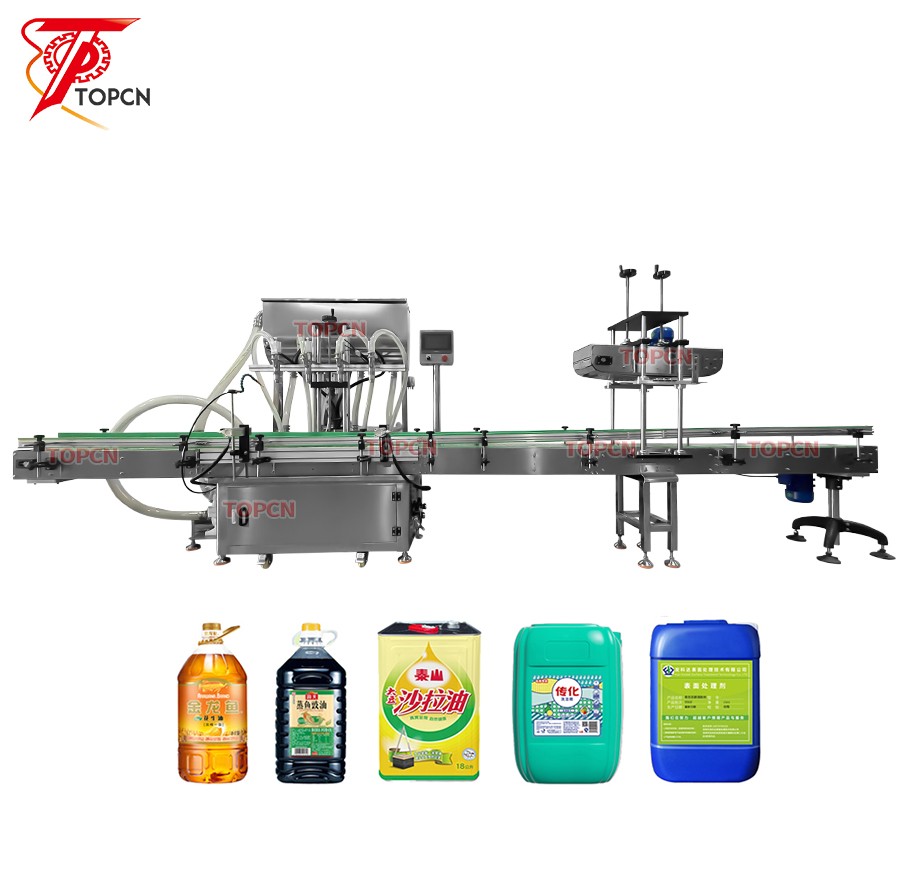

- Automatic Viscous Liquid Pail Big Barrel Drum Bucket Cooking Oil Detergent Shower Gel Shampoo Filling Machine Line
