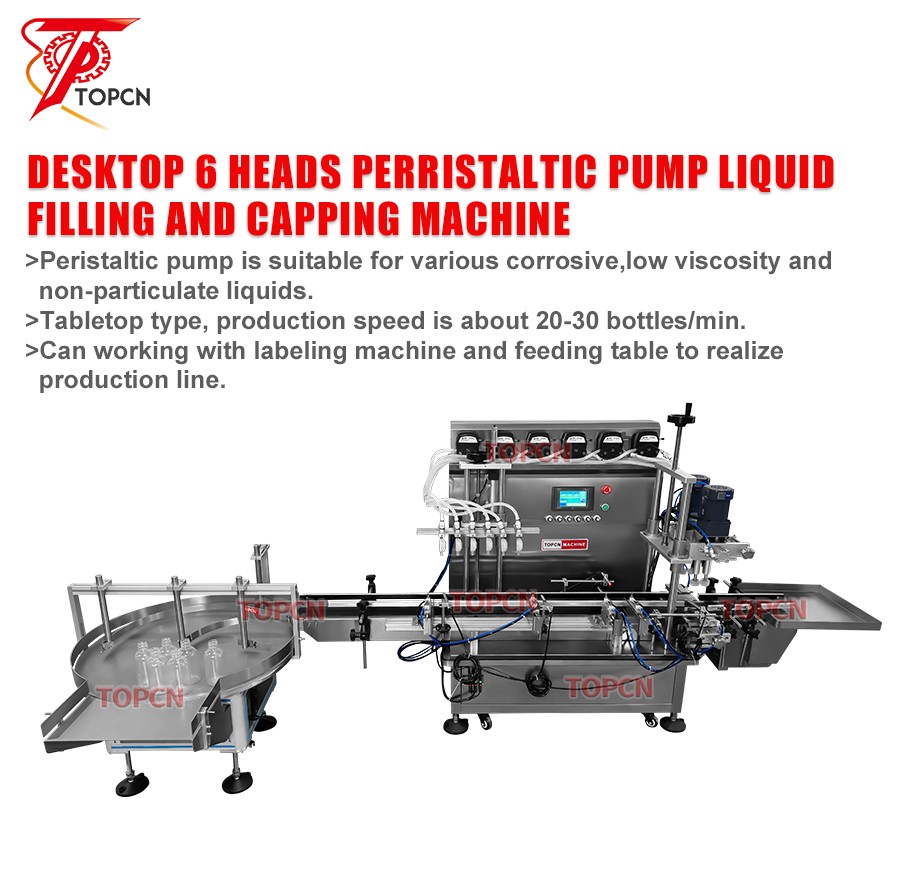

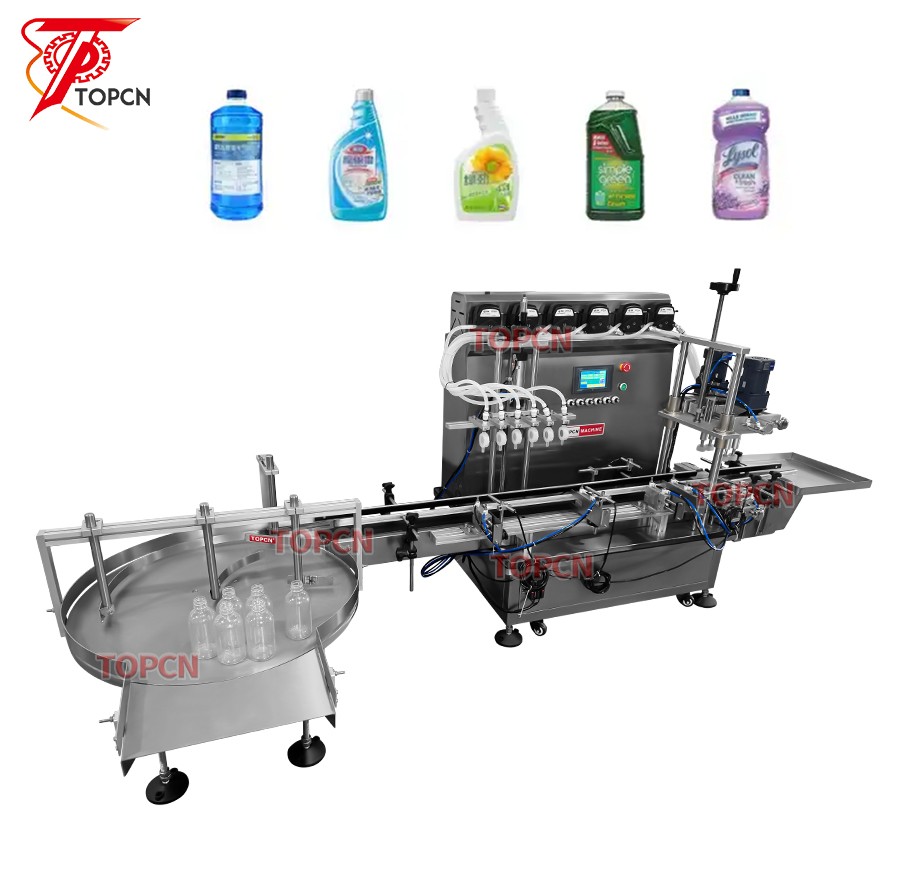

6 Heads Automatic Benchtop Liquid Oil Peristaltic Pump Belt Conveyor Beverage Juice Syrup Filling Capping Machine

Power supply

110/220V 50-60HZ

Power consumption

2500W

Maximum flow velocity

Magnetic pump 5500ml/min  Peristaltic pump 2500ml/min

(Each nozzle and base on water)

Working speed

20-30 bottles/min

(based on 50-1000ml filing volume)

Air pressure

0.3-0.4MPa

Filling accuracy

≤±1% (For water)

Diameter of Flling Nozzle

6/8mm

Delay Range

0.01-999.9s

Count Range

1-99999 Times

Filling Volume

3- 500ml(110V/220V)

Size of air compressor connector

OD8mm

Bottle height

＜220mm(Can be customized,max height 300mm)

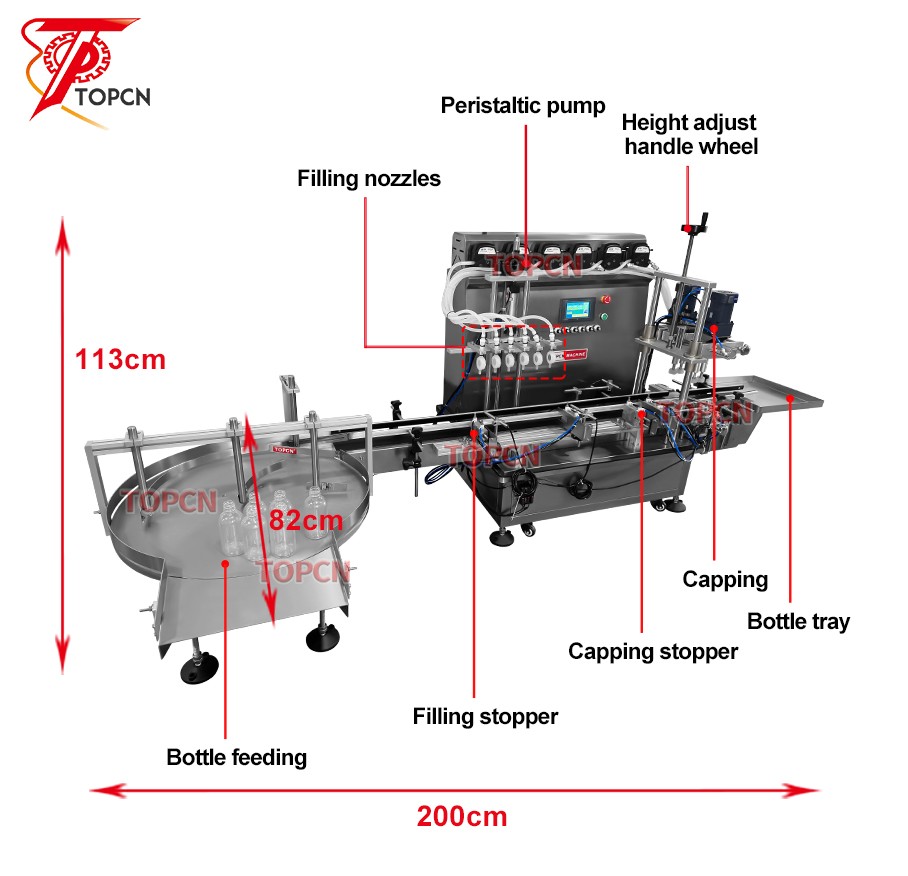

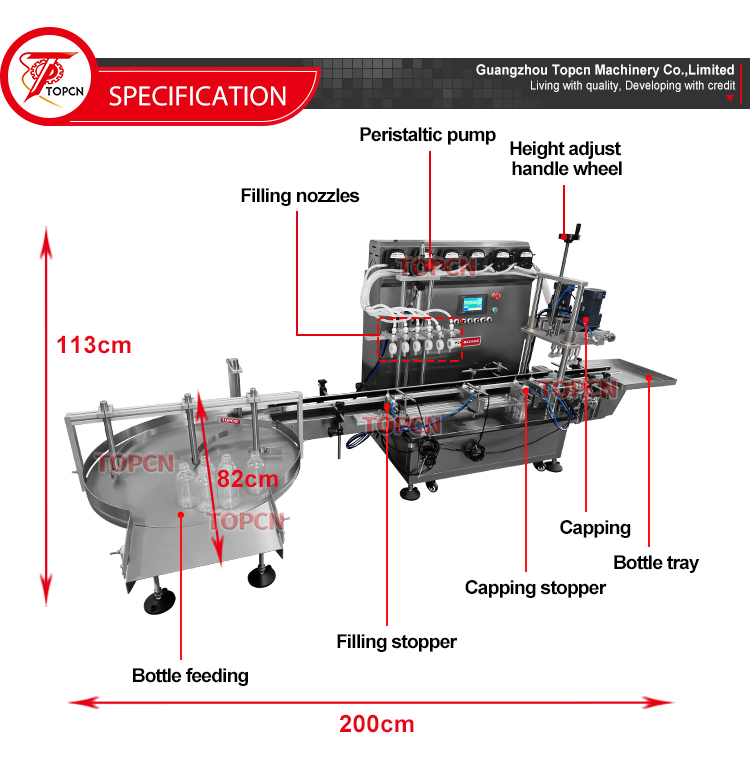

Machine Size

200*82*113cm

Package Size

About 207*88*129cm

Gross weight

260kg
