Full Automatic Inline Perfume Glass Oil Bottle Filling Equipment Caps Pressing Crimping and Labeling Machine Line

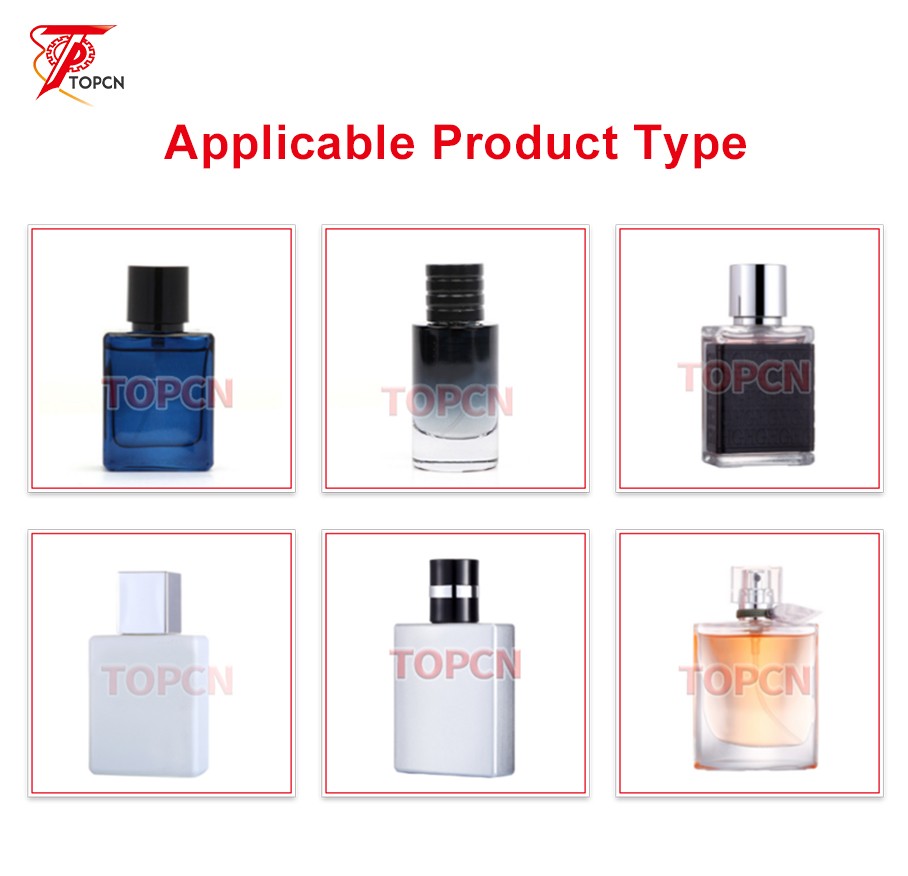

- Application
- Description
- Products Parameters
- Video
- Package&Shipping

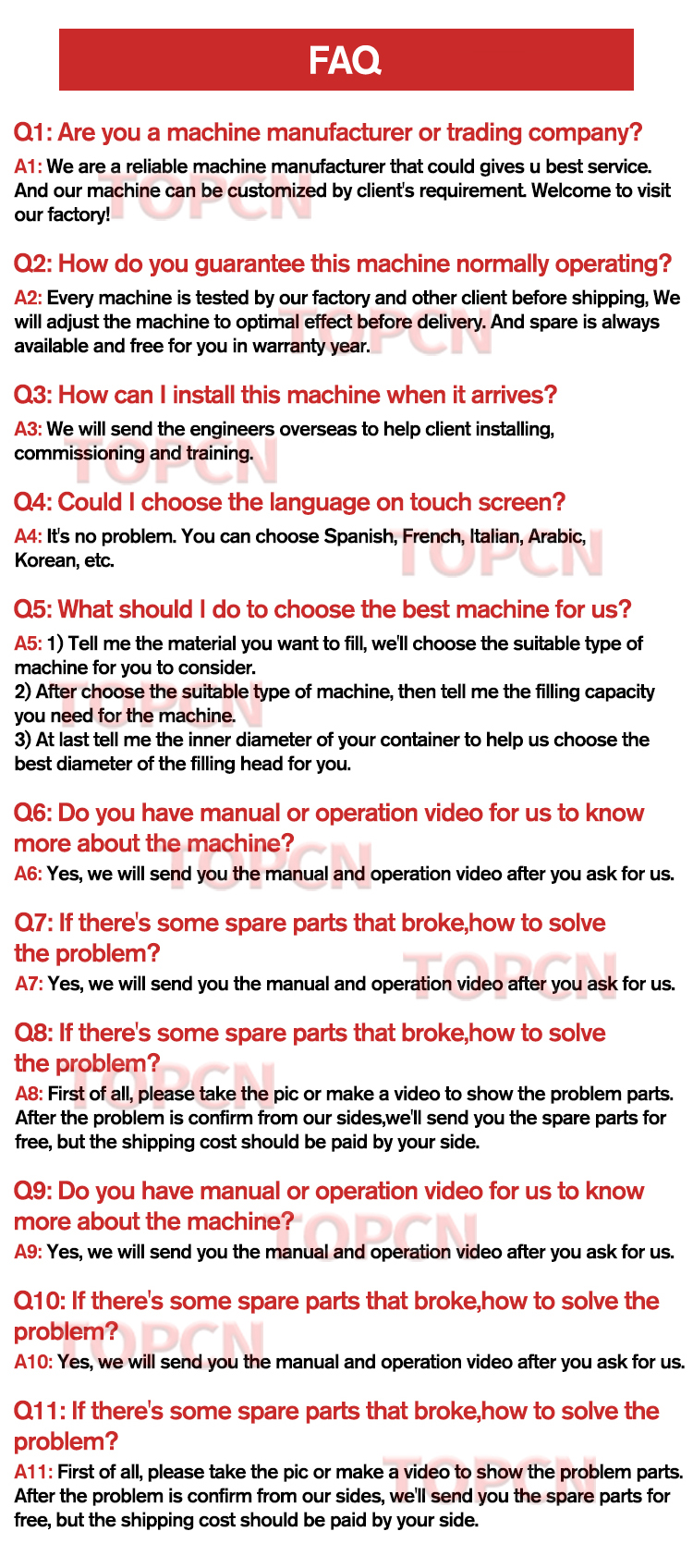

- FAQ

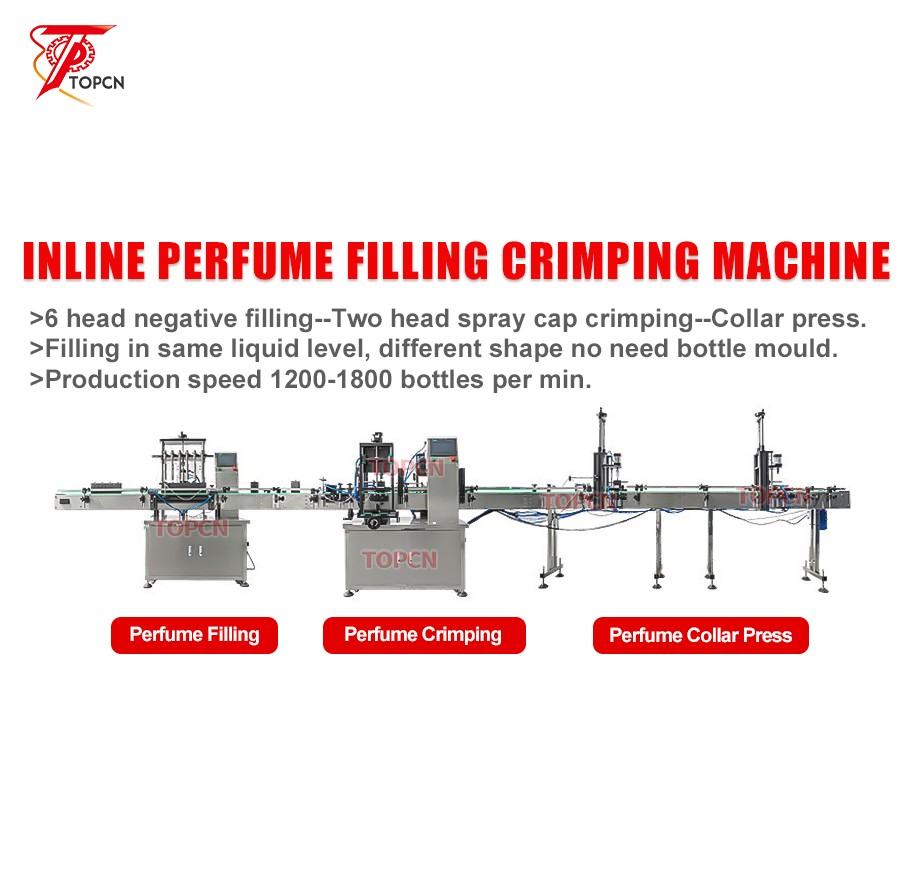

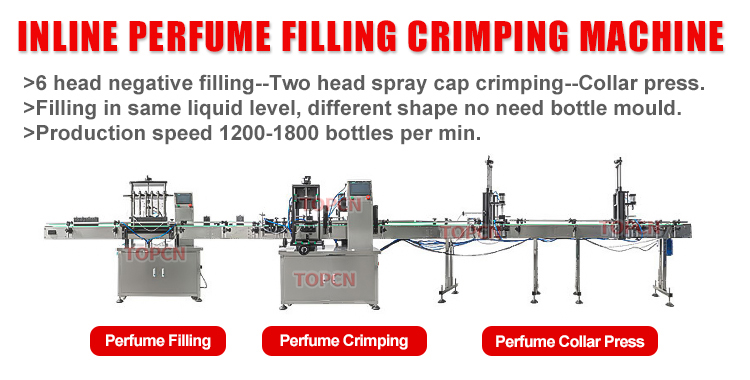

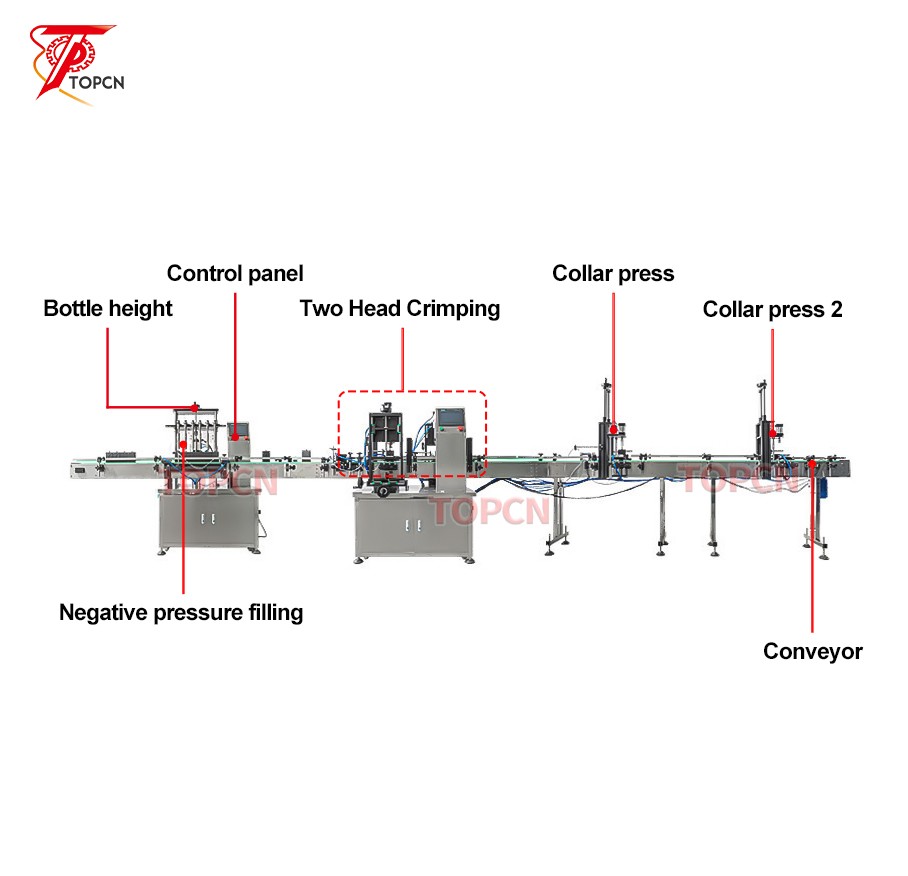

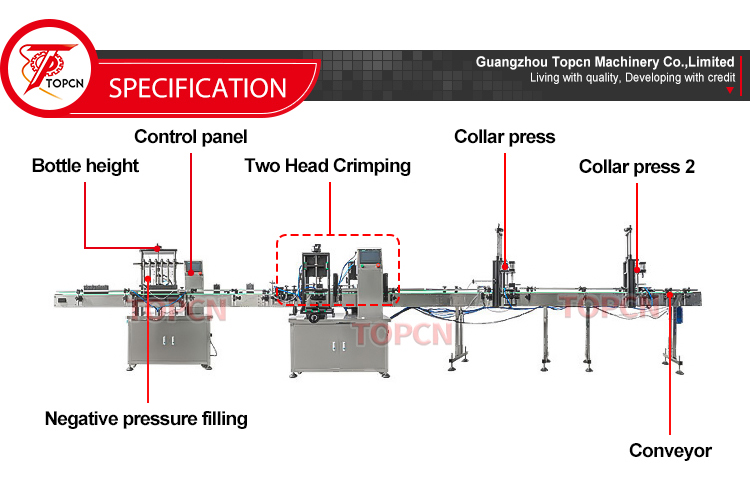

The full automatic production line for producing perfume.Consisting of vacuum filling machine,bottle crimping machine and labeling machine,it can help you improve working efficiency and save labor cost.

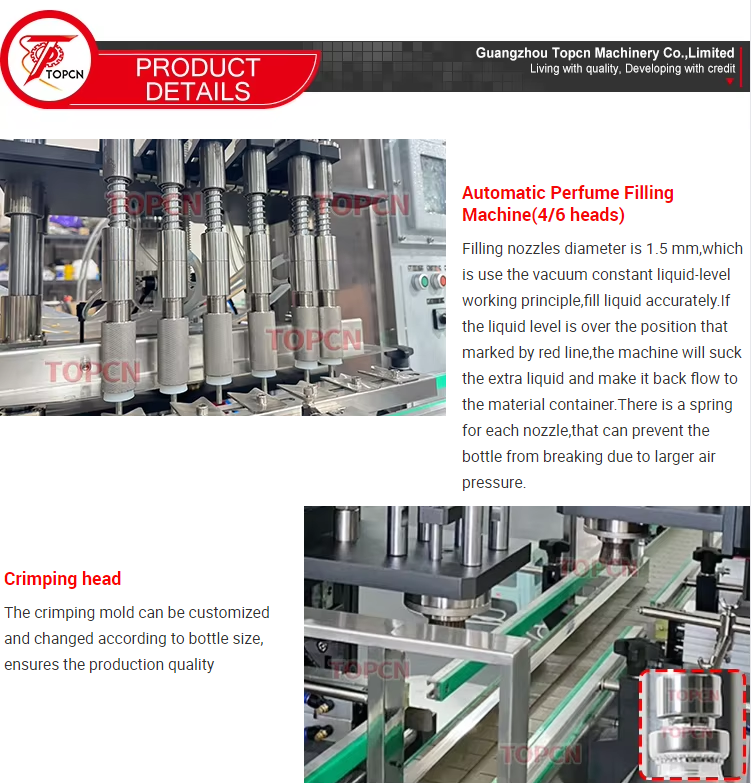

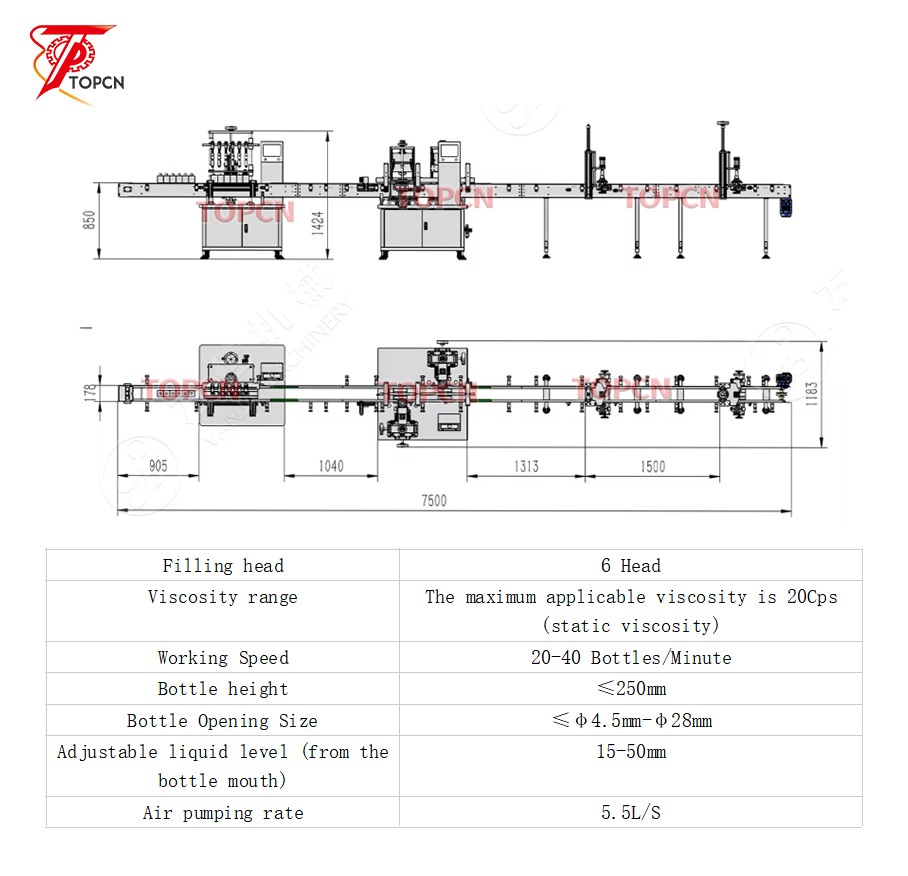

Name | Automatic Perfume Filling Machine |
Filling head | 6 Head |
Air pressure | 0.5-0.8MPa |
Liquid level accuracy | ±1mm |
Viscosity range | The maximum applicable viscosity is 20Cps (static viscosity) |
Working Speed | 20-40 Bottles/Minute |
Bottle height | ≤250mm |
Bottle Opening Size | ≤φ4.5mm-φ28mm |
Adjustable liquid level (from the bottle mouth) | 15-50mm |
Air pumping rate | 5.5L/S |
Machine size | About 2000*950*1800mm |
Machine weight | About 278kg |
Name | Automatic Perfume Capping Machine |
Voltage | 220V/110V 50-60Hz |
Power | 1.5kW |
Capping Speed | About 20-30bottles/min(depending on bottle and cap size) |
Suitable Bottle Height | 50-200mm |
Bottle Cap Diameter | 15-22mm |
Bottle Mouth Diameter | 14-20mm |
Suitable Bottle Diameter | 40-110mm |
Machine Size | About 4000*760*1700mm |
Machine Weight | About 300kg |
